Parts > Mazda 626WAGON > 1997-10 > Body Interior Trim > Rear Seats

Search by part number:

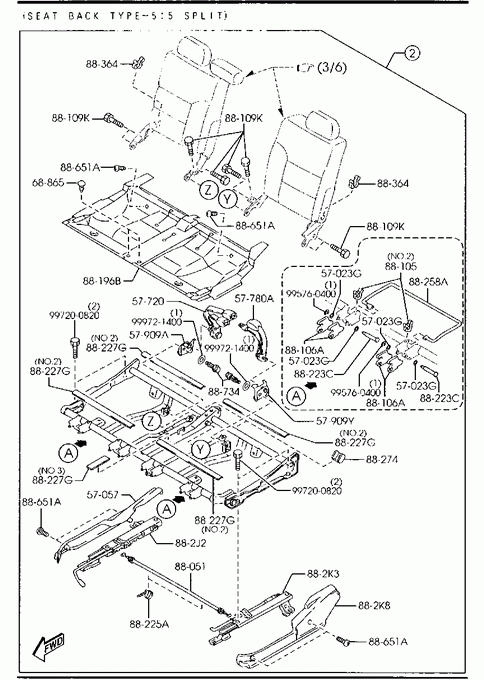

Rear Seats

01/06 (SEAT BACK TYPE-4:6 SPLIT)
02/06 (SEAT BACK TYPE-5:5 SPLIT)
03/06 (SEAT BACK TYPE-5:5 SPLIT)
04/06 (SEAT BACK TYPE-5:5 SPLIT)
05/06 (W/THIRD SEAT)
06/06

» 57023G

SPACER,NO.1

Part Number	Qty.	Specifications	Price
G14S88727	8	SEAT BACK TYPE-5:5 SPLIT	€ 0,97

» 57057

COVER NO.1,SEAT SET

Part Number	Qty.	Specifications	Price
G14S882J7	1	SEAT BACK TYPE-5:5 SPLIT

» 57720

BELT'A'(R),REAR SEAT

Part Number	Qty.	Specifications	Price
G14S57720A	1	SEAT BACK TYPE-5:5 SPLIT - 990301 GW -144795
G14S57720B	1	SEAT BACK TYPE-5:5 SPLIT 990301 - GW144795-

» 57780A

BELT'A'(L),REAR SEAT

Part Number	Qty.	Specifications	Price
GF3H57780	1	SEAT BACK TYPE-5:5 SPLIT - 990301 GW -144795
GF3H57780A	1	SEAT BACK TYPE-5:5 SPLIT 990301 - GW144795-

» 57909A

HOLDER(R),BELT

Part Number	Qty.	Specifications	Price
GF6D886A0	1	SEAT BACK TYPE-5:5 SPLIT

» 57909Y

HOLDER(L),BELT

Part Number	Qty.	Specifications	Price
GF6D887A0	1	SEAT BACK TYPE-5:5 SPLIT

» 68865

FASTENER

Part Number	Qty.	Specifications	Price
G03268865A	10	SEAT BACK TYPE-5:5 SPLIT

» 88051

CABLE,WIRE

Part Number	Qty.	Specifications	Price
G14S88051	1	SEAT BACK TYPE-5:5 SPLIT

» 88105

BUSH

Part Number	Qty.	Specifications	Price
G14S88033	4	ILLUST. NO.1 SEAT BACK TYPE-5:5 SPLIT	€ 2,18
G14S88646	4	ILLUST. NO.2 SEAT BACK TYPE-5:5 SPLIT	€ 1,71

» 88106A

SPACER

Part Number	Qty.	Specifications	Price
G14S88756	8	SEAT BACK TYPE-5:5 SPLIT	€ 3,00

» 88109K

SCREW,KNUCKLE

Part Number	Qty.	Specifications	Price
H26088109	16	SEAT BACK TYPE-5:5 SPLIT	€ 3,10

» 88196B

MAT,FRT SEAT

Part Number	Qty.	Specifications	Price
G14S88196	1	A (G14S-88-196A) SEAT BACK TYPE-5:5 SPLIT - 990301 GW -144795
G14S88196B	1	A (G14S-88-196C) SEAT BACK TYPE-5:5 SPLIT 990301 - 990501 GW144795-151842
G14S88196C	1	SEAT BACK TYPE-5:5 SPLIT 990501 - GW151842-

» 88223C

PIN(R),LOCK

Part Number	Qty.	Specifications	Price
G14S88991	4	SEAT BACK TYPE-5:5 SPLIT	€ 0,95

» 88225A

BAND

Part Number	Qty.	Specifications	Price
139488225	2	SEAT BACK TYPE-5:5 SPLIT	€ 2,10

» 88227G

SILENCER

Part Number	Qty.	Specifications	Price
G14S88049	4	ILLUST. NO.2 SEAT BACK TYPE-5:5 SPLIT
G14W88049	1	ILLUST. NO.3 SEAT BACK TYPE-5:5 SPLIT
GF3H88049	2	ILLUST. NO.1 SEAT BACK TYPE-4:6 SPLIT

» 88258A

STOPPER

Part Number	Qty.	Specifications	Price
G14S88576	2	SEAT BACK TYPE-5:5 SPLIT	€ 8,22

» 88274

RAIL

Part Number	Qty.	Specifications	Price
GF6D886AX	2	SEAT BACK TYPE-5:5 SPLIT	€ 39,25

» 882J2

SLIDER NO.1,ADJUST-REAR

Part Number	Qty.	Specifications	Price
GF6D882J2	1	SEAT BACK TYPE-5:5 SPLIT

» 882K3

SLIDER NO4,ADJUST-REAR

Part Number	Qty.	Specifications	Price
GF6D882K3	1	SEAT BACK TYPE-5:5 SPLIT	€ 105,94

» 882K8

COVER NO.4,LOWER-RR SEAT

Part Number	Qty.	Specifications	Price
G14S882K8	1	SEAT BACK TYPE-5:5 SPLIT

» 88364

PIN,SPRING-SEAT

Part Number	Qty.	Specifications	Price
G14S88364	2	SEAT BACK TYPE-5:5 SPLIT	€ 1,17

» 88651A

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
G21188651	30	SEAT BACK TYPE-5:5 SPLIT	€ 0,47

» 88734

BOLT

Part Number	Qty.	Specifications	Price
GF6D886A4	2

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200820	1		€ 1,14

» 99576

RING,STOP-'E'

Part Number	Qty.	Specifications	Price
995760400	1		€ 0,42

» 99972

WASHER,WAVE

Part Number	Qty.	Specifications	Price
999721400	1		€ 0,55
