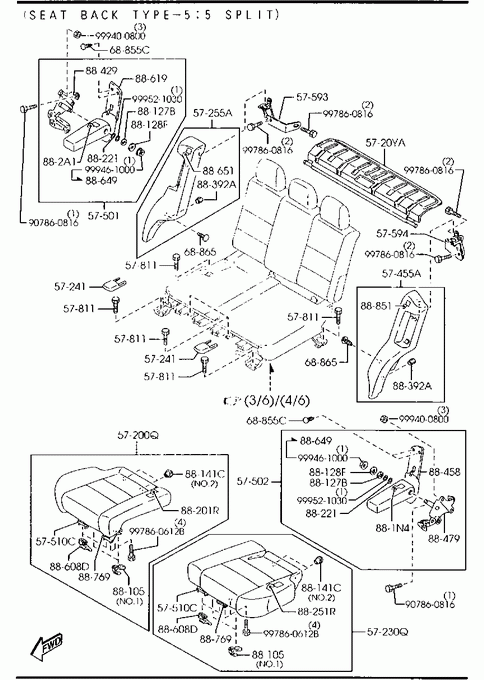

Rear Seats 01/06 (SEAT BACK TYPE-4:6 SPLIT) 02/06 (SEAT BACK TYPE-5:5 SPLIT) 03/06 (SEAT BACK TYPE-5:5 SPLIT) 04/06 (SEAT BACK TYPE-5:5 SPLIT) 05/06 (W/THIRD SEAT) 06/06

Rear Seats |

Mazda parts catalog

Parts > Mazda 626WAGON > 1997-10 > Body Interior Trim > Rear Seats

Search by part number:

Rear Seats

01/06 (SEAT BACK TYPE-4:6 SPLIT)
02/06 (SEAT BACK TYPE-5:5 SPLIT)
03/06 (SEAT BACK TYPE-5:5 SPLIT)
04/06 (SEAT BACK TYPE-5:5 SPLIT)
05/06 (W/THIRD SEAT)
06/06

» 57200Q

CUSHION(R),REAR SEAT

Part Number	Qty.	Specifications	Price
GF3H57250A	1	SEAT BACK TYPE-4:6 SPLIT - 980101 GW -103568
GF3H57250C	1	SEAT BACK TYPE-4:6 SPLIT 980101 - GW103568-
GF6D57250C	1	SEAT BACK TYPE-5:5 SPLIT - 980401 GW -111895
GF6D57250D	1	SEAT BACK TYPE-5:5 SPLIT 980401 - 980901 GW111895-127568
GF6D57250E	1	SEAT BACK TYPE-5:5 SPLIT 980901 - GW127568-

» 5720YA

BOARD,SLIDE SEAT

Part Number	Qty.	Specifications	Price
G14S5720YA	1	SEAT BACK TYPE-5:5 SPLIT

» 57230Q

CUSHION(L),REAR SEAT

Part Number	Qty.	Specifications	Price
GF3H57300A	1	SEAT BACK TYPE-4:6 SPLIT - 980101 GW -103568
GF3H57300C	1	SEAT BACK TYPE-4:6 SPLIT 980101 - GW103568-
GF6D57300C	1	SEAT BACK TYPE-5:5 SPLIT - 980401 GW -111895
GF6D57300D	1	SEAT BACK TYPE-5:5 SPLIT 980401 - 980901 GW111895-127568
GF6D57300E	1	SEAT BACK TYPE-5:5 SPLIT 980901 - GW127568-

» 57241

COVER(FRT),ADJ-R/S

Part Number	Qty.	Specifications	Price
G14S57241	2	SEAT BACK TYPE-5:5 SPLIT

» 57255A

SIDE SEAT(R),RR.BACK

Part Number	Qty.	Specifications	Price
GF3H57500B	1	SEAT BACK TYPE-4:6 SPLIT - 990525 GW -152973
GF3H57500C	1	SEAT BACK TYPE-4:6 SPLIT 990525 - GW152973-
GF6D57500E	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
GF6D57500F	1	SEAT BACK TYPE-5:5 SPLIT 981101 - GW132196-

» 57455A

SIDE SEAT(L),RR.BACK

Part Number	Qty.	Specifications	Price
GF3H57550B	1	SEAT BACK TYPE-4:6 SPLIT - 990525 GW -152973
GF3H57550C	1	SEAT BACK TYPE-4:6 SPLIT 990525 - GW152973-
GF6D57550E	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
GF6D57550F	1	SEAT BACK TYPE-5:5 SPLIT 981101 - GW132196-

» 57501

REST(R),ARM

Part Number	Qty.	Specifications	Price
G14S5750XD	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
G14S5750XE	1	SEAT BACK TYPE-5:5 SPLIT 981101 - 990801 GW132196-155822
G14S5750XF	1	SEAT BACK TYPE-5:5 SPLIT 990801 - GW155822-

» 57502

REST(L),ARM

Part Number	Qty.	Specifications	Price
G14S5755XD	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
G14S5755XE	1	SEAT BACK TYPE-5:5 SPLIT 981101 - 990801 GW132196-155822
G14S5755XF	1	SEAT BACK TYPE-5:5 SPLIT 990801 - GW155822-

» 57510C

HINGE(R),REAR CUSHION

Part Number	Qty.	Specifications	Price
G14S881JX	2	SEAT BACK TYPE-5:5 SPLIT	€ 4,51

» 57593

BRACKET(R),SEAT

Part Number	Qty.	Specifications	Price
G14S5754Y	1	AN (G14S-57-54YA) SEAT BACK TYPE-5:5 SPLIT - 980320 GW -110911
G14S5754YA	1	SEAT BACK TYPE-5:5 SPLIT 980320 - GW110911-

» 57594

BRACKET(L),SEAT

Part Number	Qty.	Specifications	Price
G14S5754Z	1	SEAT BACK TYPE-5:5 SPLIT	€ 10,02
G15B5759Y	1	(SEAT BACK TYPE-4:6 SPLIT>W/THIRD SEAT)	€ 10,02

» 57811

BOLT,SEAT BELT

Part Number	Qty.	Specifications	Price
M00157811	6	SEAT BACK TYPE-5:5 SPLIT	€ 1,53

» 68855C

FASTENER

Part Number	Qty.	Specifications	Price
G04368865B	4	SEAT BACK TYPE-5:5 SPLIT

» 68865

FASTENER

Part Number	Qty.	Specifications	Price
G03268865A	10	SEAT BACK TYPE-5:5 SPLIT

» 88105

BUSH

Part Number	Qty.	Specifications	Price
G14S88033	4	ILLUST. NO.1 SEAT BACK TYPE-5:5 SPLIT	€ 2,18
G14S88646	4	ILLUST. NO.2 SEAT BACK TYPE-5:5 SPLIT	€ 1,71

» 88127B

WASHER'A'

Part Number	Qty.	Specifications	Price
M02088126	2	SEAT BACK TYPE-5:5 SPLIT	€ 0,51

» 88128F

WASHER'B'

Part Number	Qty.	Specifications	Price
M02088128	2	SEAT BACK TYPE-5:5 SPLIT

» 88141C

GUIDE,POLE-NO.1

Part Number	Qty.	Specifications	Price
G14S881G8	4	A (G14S-88-1G8A) ILLUST. NO.2 SEAT BACK TYPE-5:5 SPLIT - 980901 GW -127568	€ 3,68
G14S881G8A	4	ILLUST. NO.2 SEAT BACK TYPE-5:5 SPLIT 980901 - GW127568-	€ 3,86
GE4T881G8C	3	ILLUST. NO.1

» 881N4

TRIM NO.4,ARM REST

Part Number	Qty.	Specifications	Price
G14S882D1	1	SEAT BACK TYPE-5:5 SPLIT

» 88201R

TRIM(R),REAR SEAT CUSHION

Part Number	Qty.	Specifications	Price
GF3H88251	1	SEAT BACK TYPE-4:6 SPLIT
GF6D88251	1	SEAT BACK TYPE-5:5 SPLIT

» 88221

WASHER,FRICTION

Part Number	Qty.	Specifications	Price
M02088129	2	SEAT BACK TYPE-5:5 SPLIT	€ 1,92

» 88251R

TRIM(L),REAR SEAT CUSHION

Part Number	Qty.	Specifications	Price
GF3H88301	1	SEAT BACK TYPE-4:6 SPLIT
GF6D88301	1	SEAT BACK TYPE-5:5 SPLIT

» 882A1

TRIM,ARM REST NO.1

Part Number	Qty.	Specifications	Price
G14S882A1	1	SEAT BACK TYPE-5:5 SPLIT

» 88392A

CLIP

Part Number	Qty.	Specifications	Price
G14S88468	2		€ 2,79

» 88429

BRACKET(R),ARM REST

Part Number	Qty.	Specifications	Price
G14S8861ZC	1	SEAT BACK TYPE-5:5 SPLIT
GF3H5750YC	1	SEAT BACK TYPE-4:6 SPLIT

» 88458

BOARD,ARM REST

Part Number	Qty.	Specifications	Price
G14S8845X	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
G14S8845XA	1	SEAT BACK TYPE-5:5 SPLIT 981101 - 990801 GW132196-155822
G14S8845XB	1	SEAT BACK TYPE-5:5 SPLIT 990801 - GW155822-

» 88479

BRACKET(L),ARM REST

Part Number	Qty.	Specifications	Price
G14S8866ZC	1	SEAT BACK TYPE-5:5 SPLIT	€ 41,24
GF3H5755YC	1	SEAT BACK TYPE-4:6 SPLIT

» 88608D

STOPPER,SEAT CUSHION

Part Number	Qty.	Specifications	Price
G14S88608	4	(W/O THIRD SEAT>SEAT BACK TYPE-5:5 SPLIT)	€ 5,21
G15B88608	2	ILLUST. NO.2 W/THIRD SEAT
GM3688608	2	ILLUST. NO.1 W/THIRD SEAT	€ 0,90

» 88619

BOARD,ARM REST

Part Number	Qty.	Specifications	Price
G14S8840X	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
G14S8840XA	1	SEAT BACK TYPE-5:5 SPLIT 981101 - 990801 GW132196-155822
G14S8840XB	1	SEAT BACK TYPE-5:5 SPLIT 990801 - GW155822-

» 88649

NUT,FRANGE

Part Number	Qty.	Specifications	Price
G14S88087	2	SEAT BACK TYPE-5:5 SPLIT 980801 - GW125919-

» 88651

TRIM(R),RR SEAT SIDE

Part Number	Qty.	Specifications	Price
GF3H88501	1	SEAT BACK TYPE-4:6 SPLIT - 990525 GW -152973
GF3H88501A	1	SEAT BACK TYPE-4:6 SPLIT 990525 - GW152973-
GF6D88501A	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
GF6D88501B	1	SEAT BACK TYPE-5:5 SPLIT 981101 - GW132196-

» 88769

HINGE(L),RR CUSHION

Part Number	Qty.	Specifications	Price
G14S881KX	2		€ 4,47

» 88851

TRIM(L),RR SEAT SIDE

Part Number	Qty.	Specifications	Price
GF3H88551	1	SEAT BACK TYPE-4:6 SPLIT - 990525 GW -152973
GF3H88551A	1	SEAT BACK TYPE-4:6 SPLIT 990525 - GW152973-
GF6D88551A	1	SEAT BACK TYPE-5:5 SPLIT - 981101 GW -132196
GF6D88551B	1	SEAT BACK TYPE-5:5 SPLIT 981101 - GW132196-

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860816	1		€ 2,06

» 90901

NUT

Part Number	Qty.	Specifications	Price
999461000	1		€ 3,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612B	1		€ 1,90

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860816	1		€ 1,73

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999521030	1		€ 0,69
