- Parts > Mazda XEDOS-9 > 2000-08 > Body Electronics > Front & Rear Wiring Harness
- Search by part number:
-

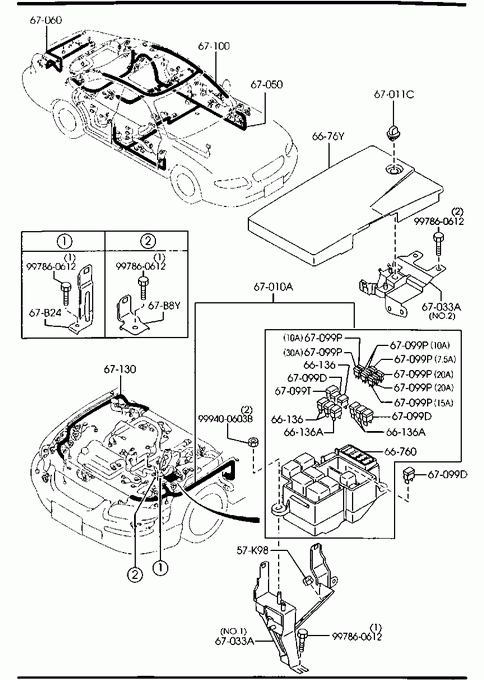

Front & Rear Wiring Harness
-
» 57K98 NUT Part Number Qty. Specifications Price FC6657K98 1 € 1,25 » 66136 FUSE (30A) Part Number Qty. Specifications Price H11567099 3 € 5,84 » 66136A FUSE (40A) Part Number Qty. Specifications Price H11667099 3 40A € 5,84 » 66760 BLOCK,MAIN FUSE Part Number Qty. Specifications Price TA0166760 1 € 112,30 » 6676Y COVER,FUSE-MAIN Part Number Qty. Specifications Price TC916676Y 1 € 21,76 » 67010A HARNESS,FRONT Part Number Qty. Specifications Price TC9067010 1 (NORMAL SPEC. TYPE>W/O RUNNING LAMP) TC9267010 1 (COLD SPEC. TYPE>W/O RUNNING LAMP) TC9367010 1 (COLD SPEC. TYPE>W/RUNNING LAMP) € 827,55 » 67011C CLIP Part Number Qty. Specifications Price T00167CH1 1 € 2,10 » 67033A BRACKET,WIRING Part Number Qty. Specifications Price T00167B1XA 1 ILLUST. NO.1 € 34,74 T00167B1YA 1 ILLUST. NO.2 € 28,75 » 67050 HARNESS,REAR Part Number Qty. Specifications Price TC9267050B 1 W/O SEAT WARMER TC9367050B 1 W/SEAT WARMER € 1090,11 » 67060 HARNESS NO.2,REAR Part Number Qty. Specifications Price TC9167060A 1 » 67099D FUSE (60A) Part Number Qty. Specifications Price FB0167099 3 60A € 5,76 » 67099P FUSE Part Number Qty. Specifications Price 997051207 1 7.5A € 2,30 997051210 3 10A € 1,13 997051215 1 15A € 1,13 997051220 2 20A € 1,13 997051230 1 30A € 1,13 » 67099T FUSE (120A) Part Number Qty. Specifications Price J00167099 1 € 7,86 » 67100 HARNESS,ROOM LAMP Part Number Qty. Specifications Price TC8667100 1 W/SUNROOF TC9367100A 1 W/O SUNROOF » 67130 HARNESS'NO.2',FRONT Part Number Qty. Specifications Price TC9067110A 1 (NORMAL SPEC. TYPE>W/O RUNNING LAMP)
- 011001
TA*2** -401550TC9067110B 1 (NORMAL SPEC. TYPE>W/O RUNNING LAMP)
011001 -
TA*2**401550-TC9267110A 1 COLD SPEC. TYPE
- 011001
TA*2** -401550TC9267110B 1 COLD SPEC. TYPE
011001 -
TA*2**401550-» 67B24 BRACKET Part Number Qty. Specifications Price T00167B15 1 € 19,78 » 67B8Y BRACKET Part Number Qty. Specifications Price T00167B18 1 € 12,38 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400603B 1 € 1,14 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 997860612 1 € 1,58
