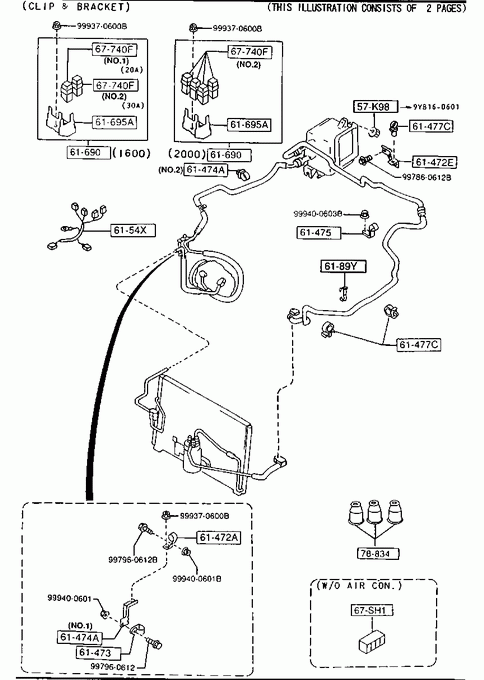

Air Conditioner 01/02 (PIPE & CONDENSER) 02/02 (CLIP & BRACKET)

Air Conditioner |

Mazda parts catalog

Parts > Mazda XEDOS-6 > 1992-01 > Body Interior Trim > Air Conditioner

Search by part number:

Air Conditioner
01/02 (PIPE & CONDENSER)
02/02 (CLIP & BRACKET)

» 57K98 NUT

Part Number Qty. Specifications Price
FC6657K98 1 - 930501
CA12** -117630 € 1,25

» 61472A CLIP

Part Number Qty. Specifications Price
C00161472 1 2000
- 920507
CA12** -104637 € 18,35
C00361471 1 2000
920507 -
CA12**104637- € 18,35

» 61472E BRACKET,CLAMP

Part Number Qty. Specifications Price
CA0661472A 1
€ 18,35

» 61473 CLIP,PIPE

Part Number Qty. Specifications Price
C00361473 1
€ 7,62

» 61474A CLIP

Part Number Qty. Specifications Price
C00361474B 1 ILLUST. NO.1
€ 13,00
GA5R61474 1 ILLUST. NO.2

» 61475 CLIP,PIPE

Part Number Qty. Specifications Price
C00361475 1
€ 21,92

» 61477C CLIP

Part Number Qty. Specifications Price
GA5R61477 3
€ 0,91

» 6154X HARNESS,COMPRESSOR-COOLER

Part Number Qty. Specifications Price
C0036154XA 1 STD.
2000
€ 45,69
CA016154XB 1 OPTION
1600

CA026154XB 1 STD.
1600
€ 43,79
CA046154XA 1 OPTION
2000
€ 51,48

» 61690 RELAY

Part Number Qty. Specifications Price
C00361690 1 2000
€ 69,81
CA0161690 1 1600

» 61695A BRACKET,RELAY

Part Number Qty. Specifications Price
C00361695 1
€ 8,98

» 6189Y PROTECTOR SET,HEATER PIPE

Part Number Qty. Specifications Price
C00361435 10 - 920218
CA12** -100051 € 1,55

» 67740F RELAY,COOLANT FAN

Part Number Qty. Specifications Price
B46267740 1 20A TR
ILLUST. NO.1
1600
€ 22,34
H45067740 4 30A
ILLUST. NO.2
2000
€ 27,47

» 67SH1 CORD,SHORT

Part Number Qty. Specifications Price
GA5R67SH1 1 W/O AIR CON.
€ 8,47

» 78834 REFRIGERANT DRUM

Part Number Qty. Specifications Price
C00361R13 2 250G

» 90901 NUT

Part Number Qty. Specifications Price
999370600B 1
€ 3,81

» 90901 NUT

Part Number Qty. Specifications Price
9YB160601 1
€ 3,37

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601 1
€ 1,28

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400601B 1
€ 1,11

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603B 1
€ 1,14

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860612B 1
€ 1,90

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612 1
€ 0,69

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960612B 1
€ 0,37

Part Number	Qty.	Specifications	Price
FC6657K98	1	- 930501 CA12 -117630**	€ 1,25

Part Number	Qty.	Specifications	Price
C00161472	1	2000 - 920507 CA12 -104637**	€ 18,35
C00361471	1	2000 920507 - CA12104637-**	€ 18,35

Part Number	Qty.	Specifications	Price
C00361474B	1	ILLUST. NO.1	€ 13,00
GA5R61474	1	ILLUST. NO.2

Part Number	Qty.	Specifications	Price
C0036154XA	1	STD. 2000	€ 45,69
CA016154XB	1	OPTION 1600
CA026154XB	1	STD. 1600	€ 43,79
CA046154XA	1	OPTION 2000	€ 51,48

Part Number	Qty.	Specifications	Price
B46267740	1	20A TR ILLUST. NO.1 1600	€ 22,34
H45067740	4	30A ILLUST. NO.2 2000	€ 27,47
