Mazda XEDOS-6 CA 1992-01 Mazda Front Door Trims & Related Parts

Mazda parts catalog

Parts > Mazda XEDOS-6 > 1992-01 > Body Interior Trim > Front Door Trims & Related Parts

Search by part number:

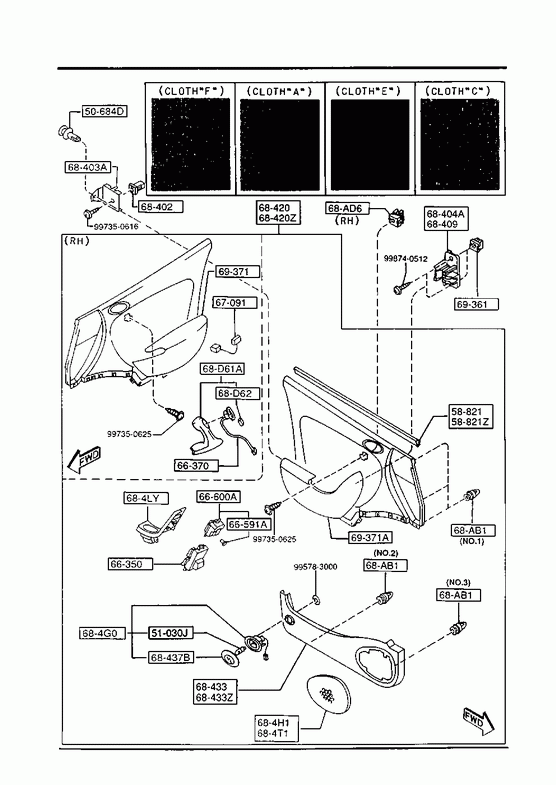

Front Door Trims & Related Parts

RIVET,SIDE PROTECTOR

Part Number	Qty.	Specifications	Price
B09950684	2

» 51030J

BULB

Part Number	Qty.	Specifications	Price
997016030	2	12V 3.4W	€ 1,72

» 58821

WEATHERSTRIP(R),INN.

Part Number	Qty.	Specifications	Price
C00158821A	1		€ 44,38

» 58821Z

WEATHERSTRIP(L),INN.

Part Number	Qty.	Specifications	Price
C00159821A	1		€ 38,65

» 66350

SWITCH,POWER WINDOW

Part Number	Qty.	Specifications	Price
CA0666350	1	AN (CA06-66-350A) - 920901 CA12 -110918**	€ 365,78
CA0666350A	1	A (CA06-66-350B) 920901 - CA12110918-**	€ 365,78

» 66370

SWITCH,POWER WINDOW

Part Number	Qty.	Specifications	Price
C00166370A	1		€ 57,09

» 66591A

BULB

Part Number	Qty.	Specifications	Price
C00266461	1		€ 5,70

» 66600A

SWITCH,RMT.MIRROR

Part Number	Qty.	Specifications	Price
CA0666600	1		€ 81,29

» 67091

CORD,SHORT

Part Number	Qty.	Specifications	Price
C00167CS0A	1		€ 33,96

» 68402

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
H38068402	2		€ 3,37

» 68403A

BRACKET,TRIM

Part Number	Qty.	Specifications	Price
C00168403A	2		€ 2,94

» 68404A

BRACKET(R),TRIM

Part Number	Qty.	Specifications	Price
C00168404	1	A (C001-68-404A) - 920521 CA12 -105859**	€ 6,10
C00168404A	1	920521 - CA12105859-**	€ 6,41

» 68409

BRACKET(L),TRIM

Part Number	Qty.	Specifications	Price
C00168409	1	A (C001-68-409A) - 920521 CA12 -105859**	€ 6,10
C00168409A	1	920521 - CA12105859-**	€ 6,41

» 68420

TRIM(R),DOOR

Part Number	Qty.	Specifications	Price
CA0668420D	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') - 920226 CA12 -100113**
CA0668420E	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 920226 - 920506 CA12100113-104553**
CA0668420F	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 920506 - 920901 CA12104553-110918**
CA0668420G	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 920901 - CA12110918-**
CA0768420D	1	(COURTESY LAMP-RED>TDA-CLOTH'A') - 920226 CA12 -100113**
CA0768420E	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 920226 - 920506 CA12100113-104553**
CA0768420F	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 920506 - 920901 CA12104553-110918**
CA0768420G	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 920901 - CA12110918-**
CA0868420D	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') - 920226 CA12 -100113**
CA0868420E	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 920226 - 920506 CA12100113-104553**
CA0868420F	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 920506 - 920901 CA12104553-110918**
CA0868420G	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 920901 - CA12110918-**
CA0968420D	1	(COURTESY LAMP-RED>TDE-CLOTH'E') - 920226 CA12 -100113**
CA0968420E	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 920226 - 920506 CA12100113-104553**
CA0968420F	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 920506 - 920901 CA12104553-110918**
CA0968420G	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 920901 - CA12110918-**
CA1068420D	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') - 920226 CA12 -100113**
CA1068420E	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 920226 - 920506 CA12100113-104553**
CA1068420F	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 920506 - 920901 CA12104553-110918**
CA1068420G	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 920901 - CA12110918-**
CA1168420D	1	(COURTESY LAMP-RED>TDC-CLOTH'C') - 920226 CA12 -100113**
CA1168420E	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 920226 - 920506 CA12100113-104553**
CA1168420F	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 920506 - 920901 CA12104553-110918**
CA1168420G	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 920901 - CA12110918-**
CA1268420A	1	(COURTESY LAMP-CLEAR>TDF-CLOTH'F') 920601 - 920901 CA12106683-110918**
CA1268420B	1	(COURTESY LAMP-CLEAR>TDF-CLOTH'F') 920901 - CA12110918-**
CA1368420A	1	(COURTESY LAMP-RED>TDF-CLOTH'F') 920601 - 920901 CA12106683-110918**
CA1368420B	1	(COURTESY LAMP-RED>TDF-CLOTH'F') 920901 - CA12110918-**

» 68420Z

TRIM(L),DOOR

Part Number	Qty.	Specifications	Price
CA0668450D	1	(COURTESY LAMP-RED>TDA-CLOTH'A') - 920226 CA12 -100113**
CA0668450E	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 920226 - 920506 CA12100113-104553**
CA0668450F	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 920506 - 920901 CA12104553-110918**
CA0668450G	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 920901 - 921001 CA12110918-112922**
CA0668450H	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 921001 - 930305 CA12112922-116187**
CA0668450J	1	(COURTESY LAMP-RED>TDA-CLOTH'A') 930305 - CA12116187-**
CA0768450D	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') - 920226 CA12 -100113**
CA0768450E	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 920226 - 920506 CA12100113-104553**
CA0768450F	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 920506 - 920901 CA12104553-110918**
CA0768450G	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 920901 - 921001 CA12110918-112922**
CA0768450H	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 921001 - 930305 CA12112922-116187**
CA0768450J	1	(COURTESY LAMP-CLEAR>TDA-CLOTH'A') 930305 - CA12116187-**
CA0868450D	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') - 920226 CA12 -100113**
CA0868450E	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 920226 - 920506 CA12100113-104553**
CA0868450F	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 920506 - 920901 CA12104553-110918**
CA0868450G	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 920901 - 921001 CA12110918-112922**
CA0868450H	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 921001 - 930305 CA12112922-116187**
CA0868450J	1	(COURTESY LAMP-CLEAR>TDE-CLOTH'E') 930305 - CA12116187-**
CA0968450D	1	(COURTESY LAMP-RED>TDE-CLOTH'E') - 920226 CA12 -100113**
CA0968450E	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 920226 - 920506 CA12100113-104553**
CA0968450F	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 920506 - 920901 CA12104553-110918**
CA0968450G	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 920901 - 921001 CA12110918-112922**
CA0968450H	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 921001 - 930305 CA12112922-116187**
CA0968450J	1	(COURTESY LAMP-RED>TDE-CLOTH'E') 930305 - CA12116187-**
CA1068450D	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') - 920226 CA12 -100113**
CA1068450E	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 920226 - 920506 CA12100113-104553**
CA1068450F	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 920506 - 920901 CA12104553-110918**
CA1068450G	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 920901 - 921001 CA12110918-112922**
CA1068450H	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 921001 - 930305 CA12112922-116187**
CA1068450J	1	(COURTESY LAMP-CLEAR>TDC-CLOTH'C') 930305 - CA12116187-**
CA1168450D	1	(COURTESY LAMP-RED>TDC-CLOTH'C') - 920226 CA12 -100113**
CA1168450E	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 920226 - 920506 CA12100113-104553**
CA1168450F	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 920506 - 920901 CA12104553-110918**
CA1168450G	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 920901 - 921001 CA12110918-112922**
CA1168450H	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 921001 - 930305 CA12112922-116187**
CA1168450J	1	(COURTESY LAMP-RED>TDC-CLOTH'C') 930305 - CA12116187-**
CA1268450A	1	(COURTESY LAMP-CLEAR>TDF-CLOTH'F') 920601 - 920901 CA12106683-110918**
CA1268450B	1	(COURTESY LAMP-CLEAR>TDF-CLOTH'F') 920901 - 921001 CA12110918-112922**
CA1268450C	1	(COURTESY LAMP-CLEAR>TDF-CLOTH'F') 921001 - 930305 CA12112922-116187**
CA1268450D	1	(COURTESY LAMP-CLEAR>TDF-CLOTH'F') 930305 - CA12116187-**
CA1368450A	1	(COURTESY LAMP-RED>TDF-CLOTH'F') 920601 - 920901 CA12106683-110918**
CA1368450B	1	(COURTESY LAMP-RED>TDF-CLOTH'F') 920901 - 921001 CA12110918-112922**
CA1368450C	1	(COURTESY LAMP-RED>TDF-CLOTH'F') 921001 - 930305 CA12112922-116187**
CA1368450D	1	(COURTESY LAMP-RED>TDF-CLOTH'F') 930305 - CA12116187-**

» 68433

POCKET(R),DOOR TRIM

Part Number	Qty.	Specifications	Price
C001684C1	1

» 68433Z

POCKET(L),DOOR TRIM

Part Number	Qty.	Specifications	Price
C001684N1	1

» 68437B

LENS,COURTESY LAMP

Part Number	Qty.	Specifications	Price
GA5T684G1	2	COURTESY LAMP-RED	€ 5,64
HG30684G1	2	COURTESY LAMP-CLEAR	€ 16,27

» 684G0

LAMP,COURTESY

Part Number	Qty.	Specifications	Price
C001684G0A	2	COURTESY LAMP-CLEAR
CA07684G0	2	COURTESY LAMP-RED

» 684H1

GRILLE(R),SPEAKER

Part Number	Qty.	Specifications	Price
C001684H0	1

» 684LY

PANEL(L),SWITCH

Part Number	Qty.	Specifications	Price
CA06684L6B	1	- 921001 CA12 -112922**
CA06684L6C	1	921001 - CA12112922-**

» 684T1

GRILLE(L),SPEAKER

Part Number	Qty.	Specifications	Price
C001684W0	1

» 68AB1

FASTENER

Part Number	Qty.	Specifications	Price
G35268ABX	2	ILLUST. NO.3 - 930601 CA12 -118060**	€ 0,79
GA2A68AB1A	6	ILLUST. NO.1	€ 0,97
GA2K68AB1	10	ILLUST. NO.2	€ 0,50

» 68AD6

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
B48168AD6	1		€ 1,41

» 68D61A

HANDLE(R),PULL-FRT

Part Number	Qty.	Specifications	Price
C00168D60B	1	- 931201 CA12 -119844**
C00168D60C	1	931201 - CA12119844-**

» 68D62

CAP,FRT-DOOR TRIM

Part Number	Qty.	Specifications	Price
C00168D62	1	931201 - CA12119844-**

» 69361

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
B31669361	4		€ 1,28

» 69371

REST(R),ARM

Part Number	Qty.	Specifications	Price
CA0669371	1

» 69371A

REST,ARM

Part Number	Qty.	Specifications	Price
CA0669391A	1

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997350616	1		€ 0,60

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997350625	1		€ 0,83

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998740512	1		€ 0,69

» 99577

NUT,SPEED

Part Number	Qty.	Specifications	Price
995783000	1		€ 0,55
