- Parts > Mazda XEDOS-6 > 1992-01 > Gasoline-engine V6-cylinder Supplement > Engine Electrical System(2000cc)
- Search by part number:
-

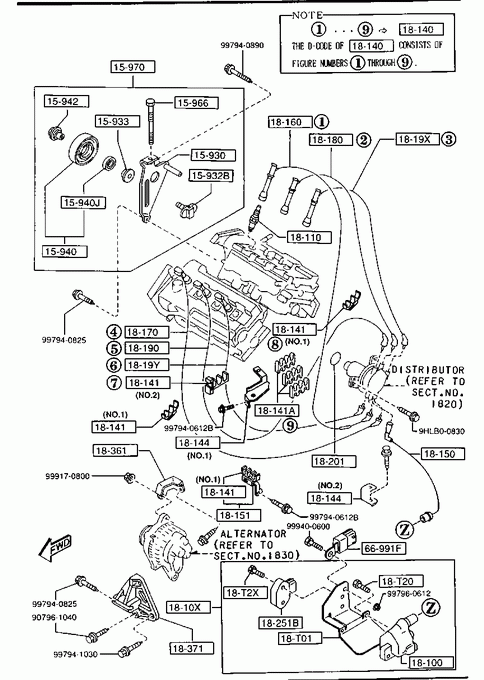

Engine Electrical System(2000cc)
-
» 15930 BRACKET,IDLE PULLEY Part Number Qty. Specifications Price KL0115950D 1 € 53,88 » 15932B SHAFT,ADJUST-C0MP.BRKT Part Number Qty. Specifications Price KL0115932 1 € 14,10 » 15933 COLLAR,COMP.BRKT Part Number Qty. Specifications Price K80515933 1 A (K805-15-933A) € 4,12 » 15940 PULLEY,IDLE Part Number Qty. Specifications Price K8051594YA 1 AN (K805-15-94YB) € 80,52 » 15940J BEARING Part Number Qty. Specifications Price 9960622030 1 € 16,06 » 15942 COLLAR,COMP.BRKT-PULLEY Part Number Qty. Specifications Price KL0115942 1 € 13,32 » 15966 BOLT,ADJUST Part Number Qty. Specifications Price K80515966A 1 € 12,64 » 15970 PULLEY,IDLE Part Number Qty. Specifications Price K80515930E 1 € 219,85 » 18100 COIL,IGNITION Part Number Qty. Specifications Price G62218100 1 € 117,39 » 1810X COIL & IGNITER Part Number Qty. Specifications Price KF011810X 1 € 293,39 » 18110 PLUG,SPARK Part Number Qty. Specifications Price BP0118110 6 BKR5E-11 NGK
OPTION HOT TYPE€ 3,35 BP0218110 6 K16PR-U11 ND
OPTION HOT TYPE€ 3,35 BP0318110 6 BKR6E-11 NGK
STD.€ 3,35 BP0418110 6 K20PR-U11 ND
STD.€ 3,35 BP0518110 6 BKR7E-11 NGK
OPTION COLD TYPE€ 3,35 BP0618110 6 K22PR-U11 ND
OPTION COLD TYPE€ 3,25 » 18140 CORD SET,HI.TENSION Part Number Qty. Specifications Price 8BGP18140 1 A (8BGP-18-140A) € 166,75 » 18141 SUPPORTER Part Number Qty. Specifications Price JE2618141 3 ILLUST. NO.1 € 3,89 KF0118141A 1 ILLUST. NO.2 € 3,43 » 18141A SUPPORTER Part Number Qty. Specifications Price KL0118141A 3 € 2,48 » 18144 BRACKET,SUPPORT-H.T. CORD Part Number Qty. Specifications Price KF0518144A 1 A (KF05-18-144B)
ILLUST. NO.2
- 920201
CA12** -100049€ 6,45 KF0518144B 1 ILLUST. NO.2
920201 -
CA12**100049-€ 6,45 KL0218144A 1 ILLUST. NO.1 € 9,25 » 18150 CORD,HIGH TENSION Part Number Qty. Specifications Price KF0118150B 1 € 20,16 » 18151 BRACKET,HT.CORD SUPPORTER Part Number Qty. Specifications Price KF011828YA 1 € 18,47 » 18160 CORD NO.1,HI.TENSION Part Number Qty. Specifications Price KF0118T51 1 AN (KF01-18-T51A) € 23,98 » 18170 CORD NO.2,HI.TENSION Part Number Qty. Specifications Price KF0118T52 1 AN (KF01-18-T52A) € 22,08 » 18180 CORD NO.3,HI.TENSION Part Number Qty. Specifications Price KF0118T53 1 A (KF01-18-T53A) € 23,98 » 18190 CORD NO.4,HI.TENSION Part Number Qty. Specifications Price KF0118T54 1 AN (KF01-18-T54A) € 19,17 » 1819X CORD NO.5,HIGH TENSION Part Number Qty. Specifications Price KF0118T55 1 A (KF01-18-T55A) € 26,16 » 1819Y CORD NO.6,HIGH TENSION Part Number Qty. Specifications Price KF0118T56 1 AN (KF01-18-T56A) € 19,17 » 18201 RING,'O' Part Number Qty. Specifications Price F20118201 1 € 4,13 » 18251B IGNITER Part Number Qty. Specifications Price KF0118251 1 € 123,31 » 18361 STRAP,ALTERNATOR Part Number Qty. Specifications Price KL0118360 1 € 17,85 » 18371 BRACKET,ALTERNATOR Part Number Qty. Specifications Price KL0518371 1 A (KL05-18-371A)
- 920301
CA12** -100257KL0518371A 1 A (KL05-18-371B)
920301 - 920801
CA12**100257-109507KL0518371B 1 920801 -
CA12**109507-€ 71,85 » 18T01 BAND,IGNITION COIL Part Number Qty. Specifications Price KF0118T01 1 » 18T20 SCREW SET,IG. COIL Part Number Qty. Specifications Price JE1518T20 1 HANSHIN € 2,50 » 18T2X SCREW SET,IGNITER Part Number Qty. Specifications Price KF0118T2X 1 € 1,93 » 66991F CONDENSER Part Number Qty. Specifications Price F2G866991 1 € 8,37 » 90780 BOLT Part Number Qty. Specifications Price 9HLB00830 1 € 1,41 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907961040 1 € 2,31 » 90901 NUT Part Number Qty. Specifications Price 999170800 1 € 0,79 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 999400600 1 € 1,24 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612B 1 € 1,22 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940825 1 € 1,57 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940890 1 € 2,62 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997941030 1 € 2,06 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960612 1 € 0,69
