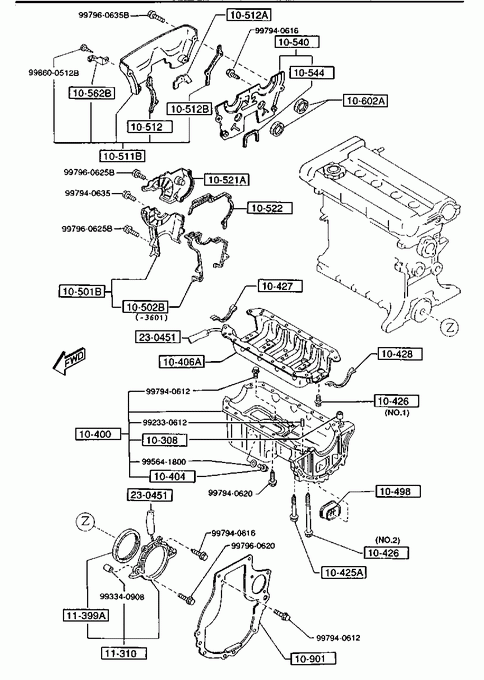

Oil Pan & Timing Cover(1600cc)
-
» 10308 PIN,TUBULAR Part Number Qty. Specifications Price B6F410308 1 € 2,42 » 10400 PAN,OIL Part Number Qty. Specifications Price B65H10400E 1 MANUAL TRANSMISSION € 297,52 B6S810400E 1 AUTOMATIC TRANSMISSION » 10404 PLUG,DRAIN Part Number Qty. Specifications Price B6S710404A 1 € 2,74 » 10406A PLATE,OIL BAFFLE Part Number Qty. Specifications Price B5411040YB 1 € 84,37 » 10425A BOLT Part Number Qty. Specifications Price B6S710466 2 € 2,35 » 10426 BOLT Part Number Qty. Specifications Price B54110426B 8 ILLUST. NO.1 € 2,50 B6S710465 2 ILLUST. NO.2 € 2,35 » 10427 GASKET,OIL PAN Part Number Qty. Specifications Price B54110427 1 NON ASBESTOS € 14,05 » 10428 GASKET,OIL PAN Part Number Qty. Specifications Price B54110428 1 NON ASBESTOS € 14,05 » 10498 CAP,BLIND-OIL PAN Part Number Qty. Specifications Price B6S710498 1 AUTOMATIC TRANSMISSION € 4,68 » 10501B COVER,TIMING BELT-LWR Part Number Qty. Specifications Price B66010500E 1 A (B660-10-501E)
- 930601
CA12** -118060€ 39,71 B66010501E 1 DAIKYOH
930601 -
CA12**118060-€ 41,71 » 10502B GASKET Part Number Qty. Specifications Price B66010502B 1 NON ASBESTOS
- 930601
CA12** -118060€ 16,81 » 10511B COVER,TIMING BELT-UP Part Number Qty. Specifications Price B69F10510 1 A (B69F-10-510A)
- 931001
CA12** -119321€ 82,12 B69F10510A 1 931001 -
CA12**119321-€ 82,12 » 10512 GASKET(L) Part Number Qty. Specifications Price B61P10512 1 NON ASBESTOS € 8,55 » 10512A GASKET,T.BELT COVER-UP Part Number Qty. Specifications Price B66010513 1 NON ASBESTOS € 6,67 » 10512B GASKET,T.B.COVER UP. Part Number Qty. Specifications Price B69F10514 1 € 7,40 » 10521A COVER,TIMING BELT-C. Part Number Qty. Specifications Price B66010520B 1 A (B660-10-521B) € 33,80 » 10522 GASKET,T.BELT COVER-C. Part Number Qty. Specifications Price B66010522 1 NON ASBESTOS € 13,62 » 10540 PLATE,SEAL-T.BELT COVER U Part Number Qty. Specifications Price B69F10540 1 € 35,30 » 10544 RUBBER,SEAL-SEAL PLATE Part Number Qty. Specifications Price B66010544 1 € 5,43 » 10562B CLIP Part Number Qty. Specifications Price B69510562A 1 € 9,84 » 10602A SEAL,OIL Part Number Qty. Specifications Price F80110602 2 A (F285-10-602)
- 921125
CA12** -113838€ 8,37 FE0110602 2 KEEPER
921125 -
CA12**113838-€ 8,37 » 10901 PLATE,END Part Number Qty. Specifications Price B6S710901A 1 € 30,28 » 11310 COVER,REAR Part Number Qty. Specifications Price B36611310C 1 RYOBI € 98,83 » 11399A SEAL,OIL-CRANKSHAFT Part Number Qty. Specifications Price BP0511312 1 € 24,47 » 230451 TUBE,SILICON Part Number Qty. Specifications Price 852777739 1 € 39,13 » 99175 SCREW,TAPPING Part Number Qty. Specifications Price 998600512B 1 € 0,69 » 99201 WASHER Part Number Qty. Specifications Price 995641800 1 € 1,18 » 99220 PIN Part Number Qty. Specifications Price 992330612 1 € 0,71 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612 1 € 0,87 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940616 1 € 1,28 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940620 1 € 3,14 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940635 1 € 2,24 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960620 1 € 1,18 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960625B 1 € 0,43 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997960635B 1 € 1,90
