Mazda RX-7 FD 1994-07 Mazda Cooling System 01/02 02/02

Mazda parts catalog

Parts > Mazda RX-7 > 1994-07 > 2 Rotary-engine Supplement > Cooling System

Search by part number:

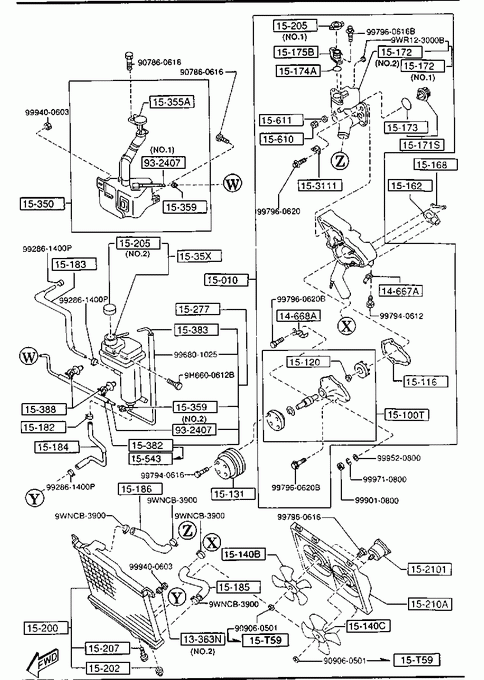

Cooling System
01/02
02/02

» 13363N RUBBER,MOUNTING

Part Number Qty. Specifications Price
022213363 2 AN (B092-61-481)
ILLUST. NO.2
€ 4,21
NF0113363 6 ILLUST. NO.1
€ 4,23

» 14667A CLIP,OIL TUBE

Part Number Qty. Specifications Price
N3A114667A 1
€ 5,35

» 14668A CLIP,M.OIL TUBE

Part Number Qty. Specifications Price
N3A114668A 1
€ 8,95

» 15010 PUMP,WATER

Part Number Qty. Specifications Price
N3C115010D 1
€ 244,76

» 15100T HOUSING SET,BRG WATER PUMP

Part Number Qty. Specifications Price
8AF415100A 1
€ 115,42

» 15116 GASKET,WATER PUMP

Part Number Qty. Specifications Price
N3A115116 1
€ 5,78

» 15120 SEAL,WATER-PUMP

Part Number Qty. Specifications Price
N3C115120 1

» 15131 PULLEY,WATER PUMP

Part Number Qty. Specifications Price
N3A115131 1
€ 24,51

» 15140B FAN(R),COOLING

Part Number Qty. Specifications Price
N3A215140 1
€ 52,18

» 15140C FAN(L),COOLING

Part Number Qty. Specifications Price
N3A115140 1
€ 52,18

» 15162 GASKET

Part Number Qty. Specifications Price
N38615162 1 NON ASBESTOS
€ 3,59

» 15168 SHIM,WATER PIPE BRACKET

Part Number Qty. Specifications Price
N3A115168 1
€ 3,96

» 15171S THERMOSTAT SET

Part Number Qty. Specifications Price
8AF615171 1
€ 21,59

» 15172 COVER,THERMOSTAT

Part Number Qty. Specifications Price
N3A115170 1 A (N3A1-15-170A)
ILLUST. NO.1
€ 49,32
N3A115172 1 A (N3A1-15-170)
ILLUST. NO.2
€ 49,32

» 15173 GASKET,THERMOSTAT COVER

Part Number Qty. Specifications Price
N3C115173 1
€ 2,84

» 15174A RING

Part Number Qty. Specifications Price
N32615174 1
€ 3,18

» 15175B BODY,FILLER CAP

Part Number Qty. Specifications Price
N3C115175 1
€ 32,88

» 15182 CLAMP,WATER HOSE

Part Number Qty. Specifications Price
N3A115182A 1

» 15183 HOSE,WATER

Part Number Qty. Specifications Price
N3A115183A 1
€ 24,00

» 15184 HOSE,WATER

Part Number Qty. Specifications Price
N3A115184A 1
€ 36,90

» 15185 HOSE,WATER

Part Number Qty. Specifications Price
N3A115185A 1 A (N3A1-15-185B)
- 950301
FD13B2 -300032 € 24,11
N3A115185B 1 950301 -
FD13B2300032- € 24,84

» 15186 HOSE,WATER

Part Number Qty. Specifications Price
N3A115186A 1 A (N3A1-15-186B)
- 950301
FD13B2 -300032 € 31,35
N3A115186B 1 950301 -
FD13B2300032- € 32,29

» 15200 RADIATOR

Part Number Qty. Specifications Price
N3A115200A 1
€ 453,95

» 15202 RUBBER,MOUNT

Part Number Qty. Specifications Price
JE4815202 2
€ 4,36

» 15205 CAP,RADIATOR

Part Number Qty. Specifications Price
KF0115205 1 ILLUST. NO.1
€ 17,21
N3A115205A 1 ILLUST. NO.2
€ 18,97

» 15207 COCK,DRAIN

Part Number Qty. Specifications Price
NF0115203 1 CALSONIC
€ 8,27

» 152101 FAN DRIVE

Part Number Qty. Specifications Price
N3A115150 2
€ 245,74

» 15210A COWLING,RADIATOR

Part Number Qty. Specifications Price
N3A215211B 1 A (N3A2-15-211C)
- 951011
FD13B2 -300053 € 92,30
N3A215211C 1 951011 -
FD13B2300053- € 96,03

» 15277 HOSE,WATER SUB TANK

Part Number Qty. Specifications Price
N3A115380C 1
€ 22,94

» 153111 BRACKET

Part Number Qty. Specifications Price
N3A115109 1

» 15350 TANK,SUB-RADIATOR

Part Number Qty. Specifications Price
N3A115350B 1
€ 114,32

» 15355A CAP,SUB TANK

Part Number Qty. Specifications Price
N3A115355 1
€ 19,59

» 15359 PIPE,JOINT

Part Number Qty. Specifications Price
N3A115359 2
€ 5,30

» 1535X TANK,AIR SEPARATE

Part Number Qty. Specifications Price
N3A11535XB 1
€ 104,67

» 15382 PROTECTOR,HOSE-SUB TANK

Part Number Qty. Specifications Price
F20115382 1 - 950201
FD13B2 -300028 € 2,16

» 15383 HOSE,SUB TANK

Part Number Qty. Specifications Price
N3A115383 1
€ 7,26

» 15388 CLIP,HOSE

Part Number Qty. Specifications Price
F20115388A 2
€ 1,86

» 15543 PROTECTOR,WATER HOSE

Part Number Qty. Specifications Price
KF1715543 1 950201 -
FD13B2300028- € 3,14

» 15610 SENSOR,WATER LEVEL

Part Number Qty. Specifications Price
N3A115610A 1
€ 63,16

» 15611 GASKET

Part Number Qty. Specifications Price
855315611 1
€ 1,74

» 15T59 NUT,COOLING FAN

Part Number Qty. Specifications Price
B59515T59 2 951011 -
FD13B2300053- € 2,79

» 90688 PROTECTOR

Part Number Qty. Specifications Price
996801025 1

» 90780 BOLT

Part Number Qty. Specifications Price
9H6600612B 1
€ 0,69

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860616 1
€ 2,41

» 90901 NUT

Part Number Qty. Specifications Price
999010800 1
€ 2,31

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
909060501 1
€ 0,51

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603 1
€ 2,05

» 932407 HOSE,WATER

Part Number Qty. Specifications Price
9932407200 1 ILLUST. NO.1
€ 2,07
9932407400 1 ILLUST. NO.2

» 99203 WASHER,PLAIN

Part Number Qty. Specifications Price
999520800 1
€ 0,49

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
992861400P 1
€ 2,44

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
9WNCB3900 1
€ 3,12

» 99503 PLUG,HEXAGON SOCKET

Part Number Qty. Specifications Price
9WR123000B 1

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940612 1
€ 0,87

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940616 1
€ 1,28

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616B 1
€ 0,48

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960620 1
€ 1,18

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960620B 1
€ 0,75

» 99971 WASHER,SPRING

Part Number Qty. Specifications Price
999710800 1
€ 1,18

Part Number	Qty.	Specifications	Price
022213363	2	AN (B092-61-481) ILLUST. NO.2	€ 4,21
NF0113363	6	ILLUST. NO.1	€ 4,23
