Mazda RX-7 FD 1992-01 Mazda Front & Rear Wiring Harnesses 01/02 02/02

Mazda parts catalog

Parts > Mazda RX-7 > 1992-01 > Body Electronics > Front & Rear Wiring Harnesses

Search by part number:

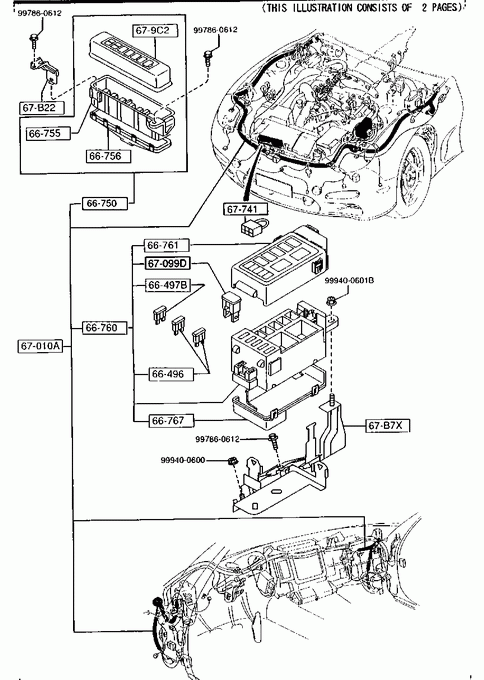

Front & Rear Wiring Harnesses

01/02
02/02

FUSE (15A)

Part Number	Qty.	Specifications	Price
997051115	3		€ 1,15

» 66497B

FUSE (30A)

Part Number	Qty.	Specifications	Price
997051130	1		€ 1,08

» 66750

BLOCK,RELAY

Part Number	Qty.	Specifications	Price
FD1466750B	1	AN (FD14-66-750C) - 920401 FD13B2 -100162	€ 89,11
FD1466750C	1	920401 - FD13B2100162-	€ 89,11

» 66755

CASE,RELAY BOX

Part Number	Qty.	Specifications	Price
FD0166755B	1	AN (FD01-66-755C) - 920401 FD13B2 -100162	€ 47,73
FD0166755C	1	920401 - FD13B2100162-	€ 47,73

» 66756

COVER,UNDER-RELAY BOX

Part Number	Qty.	Specifications	Price
FD0166756	1

» 66760

BLOCK,MAIN FUSE

Part Number	Qty.	Specifications	Price
FD1466760B	1	A (FD14-66-760C) - 921101 FD13B2 -100754	€ 81,04
FD1466760C	1	921101 - FD13B2100754-	€ 81,04

» 66761

COVER,MAIN FUSE BLOCK

Part Number	Qty.	Specifications	Price
FD1466761B	1	A (FD14-66-761C) - 921101 FD13B2 -100754	€ 15,74
FD1466761C	1	921101 - FD13B2100754-	€ 15,74

» 66767

COVER,UNDER-MAIN FUSE BLK

Part Number	Qty.	Specifications	Price
FD0166767	1

» 67010A

HARNESS,FRONT

Part Number	Qty.	Specifications	Price
FD1467010C	1	A (FD14-67-010D) - 920401 FD13B2 -100162	€ 1617,69
FD1467010G	1	A (FD14-67-010H) 920401 - 921101 FD13B2100162-100754	€ 1617,69
FD1467010H	1	921101 - FD13B2100754-	€ 1683,04

» 67099D

FUSE (60A)

Part Number	Qty.	Specifications	Price
FB0167099	1	60A	€ 5,76

» 67741

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
FD1467741	2		€ 6,07

» 679C2

COVER,RELAY BOX-F.HARNESS

Part Number	Qty.	Specifications	Price
FD1466752A	1		€ 20,83

» 67B22

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
FD0167B12	1		€ 11,06

» 67B7X

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
FD0567B7XD	1	A (FD05-67-B7XE) - 920707 FD13B2 -100436	€ 20,50
FD0567B7XE	1	AN (FD05-67-B7XF) 920707 - FD13B2100436-	€ 20,50

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601B	1		€ 1,11

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58
