Mazda RX-7 FC 1989-03 Mazda Sunroof 01/02 02/02

Mazda parts catalog

Parts > Mazda RX-7 > 1989-03 > Body Exterior Trim > Sunroof(convertible)

Search by part number:

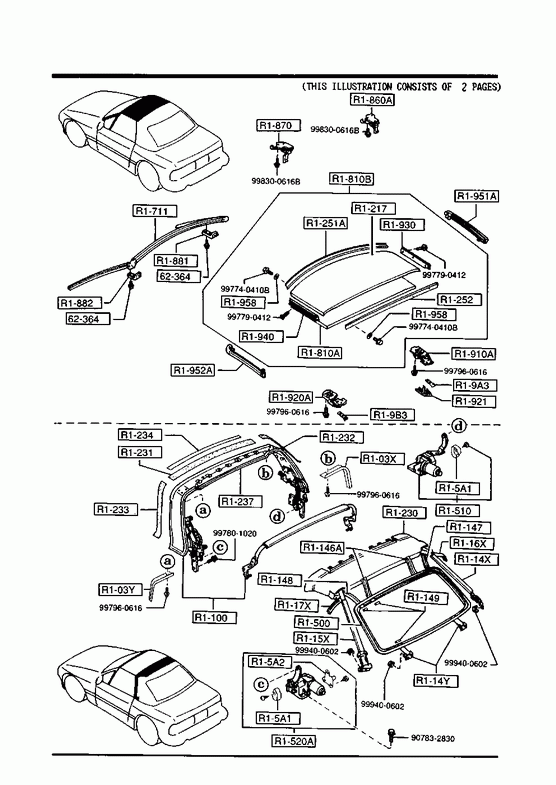

Sunroof(convertible)

01/02
02/02

SCREW,STRIKER

Part Number	Qty.	Specifications	Price
FB67R1222	4		€ 1,10

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997740410B	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997790412	1

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907832830	1		€ 1,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997801020	1		€ 3,22

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99830

SCREW,FLANGE

Part Number	Qty.	Specifications	Price
998300616B	1		€ 0,60

» R103X

BRKT(R),BELT-FORMING

Part Number	Qty.	Specifications	Price
FC54R103X	1

» R103Y

BRKT(L),BELT-FORMING

Part Number	Qty.	Specifications	Price
FC54R103Y	1

» R1100

BAR,FORMING-SOFT TOP

Part Number	Qty.	Specifications	Price
FB67R1100	1		€ 1593,40

» R1146A

BELT'A',BACK WINDOW

Part Number	Qty.	Specifications	Price
FB67R1146A	2		€ 19,38

» R1147

BELT'B'(R),BACK WINDOW

Part Number	Qty.	Specifications	Price
FB67R1147A	1		€ 15,63

» R1148

BELT'B'(L),BACK WINDOW

Part Number	Qty.	Specifications	Price
FB67R1148A	1		€ 15,63

» R1149

PIN,BELT-BACK WINDOW

Part Number	Qty.	Specifications	Price
FB67R1149	6		€ 0,77

» R114X

BELT'A'(R),CORNER-SOFTTOP

Part Number	Qty.	Specifications	Price
FB67R114X	1		€ 75,43

» R114Y

BELT'C',BACK WINDOW

Part Number	Qty.	Specifications	Price
FB67R114Y	2		€ 12,89

» R115X

BELT'A'(L),CORNER-SOFTTOP

Part Number	Qty.	Specifications	Price
FB67R115X	1		€ 86,99

» R116X

BELT'B'(R),CORNER-SOFTTOP

Part Number	Qty.	Specifications	Price
FB67R116X	1		€ 64,28

» R117X

BELT'B'(L),CORNER-SOFTTOP

Part Number	Qty.	Specifications	Price
FB67R117X	1		€ 74,45

» R1217

FABRIC COVERING,ROOF PANEL

Part Number	Qty.	Specifications	Price
FC33R1217	1		€ 239,77

» R1230

INSULATOR,TOP CEILING

Part Number	Qty.	Specifications	Price
FB67R1213	1		€ 189,84

» R1231

PAD(CTR),SPACER-SOFT TOP

Part Number	Qty.	Specifications	Price
FB67R1231	1		€ 3,50

» R1232

PAD(R),SPACER-SOFT TOP

Part Number	Qty.	Specifications	Price
FB67R1232	1		€ 3,57

» R1233

PAD(L),SPACER-SOFT TOP

Part Number	Qty.	Specifications	Price
FB67R1233	1		€ 3,57

» R1234

PLATE,FRONT-SOFT TOP

Part Number	Qty.	Specifications	Price
FB67R1234	1		€ 5,26

» R1237

PROTECTOR,FORMING BAR

Part Number	Qty.	Specifications	Price
FB67R1237A	1

» R1251A

PLATE(FRT),SET-ROOF PANEL

Part Number	Qty.	Specifications	Price
FB67R1251	1		€ 34,27

» R1252

PLATE(RR),SET-ROOF PANEL

Part Number	Qty.	Specifications	Price
FB67R1252	1

» R1500

FRAME,BACK WINDOW

Part Number	Qty.	Specifications	Price
FB67R1421A	1	AN (FB67-R1-421B)	€ 569,94

» R1510

MOTOR(R),T0P

Part Number	Qty.	Specifications	Price
FB67R1510D	1		€ 1017,62

» R1520A

MOTOR(L),TOP

Part Number	Qty.	Specifications	Price
FB67R1520B	1		€ 821,32

» R15A1

SWITCH,LIMIT-TOP MOTOR

Part Number	Qty.	Specifications	Price
FB67R15A1	2		€ 24,37

» R15A2

BUZZER,TOP MOTOR

Part Number	Qty.	Specifications	Price
FB67R15A2	1

» R1711

WTHSTP,FRONT HEADER

Part Number	Qty.	Specifications	Price
FB67R1711D	1	AN (FB67-R1-711E) - 890421 *FC132 -200250**
FB67R1711E	1	A (FB67-R1-711F) 890421 - 910701 *FC132200250-202542**	€ 145,68
FB67R1711F	1	910701 - *FC132202542-**	€ 169,80

» R1810A

PANEL,ROOF

Part Number	Qty.	Specifications	Price
FB67R1810H	1	LESS OUTER CLOTH

» R1810B

PANEL/FABRIC,ROOF

Part Number	Qty.	Specifications	Price
FCZ3R12Y0	1	A (FCZ3-R1-2Y0A) - 910701 *FC132 -202542**	€ 951,34
FCZ3R12Y0A	1	910701 - *FC132202542-**	€ 1066,22

» R1860A

LOCK(R),TOP

Part Number	Qty.	Specifications	Price
FB67R1860D	1

» R1870

LOCK(L),TOP

Part Number	Qty.	Specifications	Price
FB67R1870D	1		€ 172,12

» R1881

STRIKER(R),LOCK-TOP

Part Number	Qty.	Specifications	Price
FB67R1881C	1		€ 33,46

» R1882

STRIKER(L),LOCK-TOP

Part Number	Qty.	Specifications	Price
FB67R1882C	1		€ 33,46

» R1910A

LOCK(R),HINGE-TOP

Part Number	Qty.	Specifications	Price
FC54R1910A	1

» R1920A

LOCK(L),HINGE-TOP

Part Number	Qty.	Specifications	Price
FC54R1920A	1		€ 111,42

» R1921

COVER,KNOB-HINGE

Part Number	Qty.	Specifications	Price
FB67R1921A	1

» R1930

RETAINER(R),ROOF PANEL

Part Number	Qty.	Specifications	Price
FB67R1930A	1		€ 49,86

» R1940

RETAINER(L),ROOF PANEL

Part Number	Qty.	Specifications	Price
FB67R1940A	1		€ 50,86

» R1951A

WTHSTP(R),R00F PANEL

Part Number	Qty.	Specifications	Price
FC54R1951A	1	A (FC54-R1-951B) - 890602 *FC132 -200527**	€ 24,87
FC54R1951B	1	890602 - *FC132200527-**	€ 34,12

» R1952A

WTHSTP(L),ROOF PANEL

Part Number	Qty.	Specifications	Price
FC54R1952A	1	A (FC54-R1-952B) - 890602 *FC132 -200527**	€ 24,87
FC54R1952B	1	890602 - *FC132200527-**	€ 34,12

» R1958

WASHER,HOOK'A'&'B'

Part Number	Qty.	Specifications	Price
B235R1958A	10		€ 2,05

» R19A3

BRACKET(R),HINGE-ROOF

Part Number	Qty.	Specifications	Price
FB67R19A3A	1		€ 6,23

» R19B3

BRACKET(L),HINGE-ROOF

Part Number	Qty.	Specifications	Price
FB67R19B3A	1

Sunroof(convertible)
