Mazda RX-7 FC 1989-03 Mazda Oil Pump & Filter

|

Mazda parts catalog

Parts > Mazda RX-7 > 1989-03 > Rotary-engine & Transmission > Oil Pump & Filter

Search by part number:

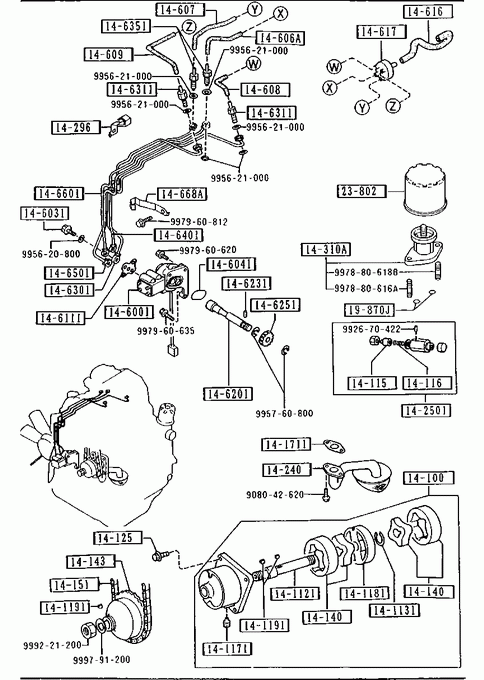

Oil Pump & Filter

PUMP,OIL

Part Number	Qty.	Specifications	Price
N31814100A	1		€ 171,78

SHAFT,OIL PUMP

Part Number	Qty.	Specifications	Price
N32614131	1		€ 18,39

RING,SNAP

Part Number	Qty.	Specifications	Price
081014113	1		€ 3,07

PLUNGER,CONTROL

Part Number	Qty.	Specifications	Price
022114115	1		€ 4,14

SPRING,PRESSURE

Part Number	Qty.	Specifications	Price
022114116	1		€ 1,57

BOLT,LOCK

Part Number	Qty.	Specifications	Price
N32614117	1		€ 2,62

PLATE,MIDDLE

Part Number	Qty.	Specifications	Price
N31814135A	1

KEY

Part Number	Qty.	Specifications	Price
083914119B	3		€ 2,50

BOLT,SET

Part Number	Qty.	Specifications	Price
855314125	4

ROTOR

Part Number	Qty.	Specifications	Price
N31814140	2		€ 63,63

SPROCKET,DRIVEN

Part Number	Qty.	Specifications	Price
N32614143	1		€ 38,14

CHAIN,OIL PUMP

Part Number	Qty.	Specifications	Price
N32614151	1

GASKET,OIL STRAINER

Part Number	Qty.	Specifications	Price
081014171A	1	ASBESTOS - 900210 *FC132 -201363**	€ 1,92
N38614248	1	NON ASBESTOS 900210 - *FC132201363-**	€ 2,06
N3Y014248	1	NON ASBESTOS - 900210 *FC132 -201363**

STRAINER,OIL

Part Number	Qty.	Specifications	Price
N32614240B	1		€ 25,46

REGULATOR,PRESSURE

Part Number	Qty.	Specifications	Price
364814250	1		€ 23,54

CLIP,OIL TUBE

Part Number	Qty.	Specifications	Price
N37014667	1

BODY,OIL FILTER

Part Number	Qty.	Specifications	Price
834114310	1		€ 37,35

PUMP,METERING OIL

Part Number	Qty.	Specifications	Price
N35014600B	1		€ 1436,23

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
N23614603B	4	AN (RF2A-14-603)	€ 15,21

RING,'O'

Part Number	Qty.	Specifications	Price
N35014604	1		€ 7,14

TUBE NO.1,AIR

Part Number	Qty.	Specifications	Price
N37014606	1		€ 4,40

TUBE NO.2,AIR

Part Number	Qty.	Specifications	Price
N37014607	1		€ 4,40

TUBE NO.3,AIR

Part Number	Qty.	Specifications	Price
N37014608	1		€ 4,40

TUBE NO.4,AIR

Part Number	Qty.	Specifications	Price
N37014609	1		€ 4,40

GASKET,METERING OIL

Part Number	Qty.	Specifications	Price
N35014602	1	NON ASBESTOS	€ 6,08

TUBE,AIR INLET

Part Number	Qty.	Specifications	Price
N31814616A	1		€ 8,70

CONNECTOR,AIR TUBE

Part Number	Qty.	Specifications	Price
N32614617	1		€ 9,04

SHAFT,DRIVEN GEAR

Part Number	Qty.	Specifications	Price
N35014620	1		€ 12,92

PIN,DRIVEN GEAR

Part Number	Qty.	Specifications	Price
081314623	1		€ 3,05

GEAR,DRIVEN

Part Number	Qty.	Specifications	Price
082014625A	1		€ 24,55

TUBE,METERING OIL

Part Number	Qty.	Specifications	Price
N37014660A	1		€ 21,91

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
N31814631	2	A (N3G1-14-631)	€ 29,04

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
N31814635	2		€ 33,57

TUBE,METERING OIL

Part Number	Qty.	Specifications	Price
N37014670A	1		€ 21,91

TUBE,METERING OIL

Part Number	Qty.	Specifications	Price
N37014680A	1		€ 21,91

TUBE,METERING OIL

Part Number	Qty.	Specifications	Price
N37014690A	1		€ 21,91

CLIP,M.OIL TUBE

Part Number	Qty.	Specifications	Price
N37014668A	1

RING,'O'

Part Number	Qty.	Specifications	Price
9954101601	2		€ 2,71

CARTRIDGE,OIL FILTER

Part Number	Qty.	Specifications	Price
B6Y114302	1	(MAZDA MARK,T. ROKI)	€ 5,98

BOLT & WASHER

Part Number	Qty.	Specifications	Price
908042620	1

STUD

Part Number	Qty.	Specifications	Price
997880616A	1		€ 1,24

NUT

Part Number	Qty.	Specifications	Price
999221200	1		€ 2,46

PIN,GROOVED

Part Number	Qty.	Specifications	Price
992670422	1

GASKET

Part Number	Qty.	Specifications	Price
995620800	1		€ 1,97

GASKET

Part Number	Qty.	Specifications	Price
995621000	1		€ 2,06

RING,SNAP

Part Number	Qty.	Specifications	Price
995760800	1		€ 0,58

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960620	1		€ 1,18

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960635	1		€ 1,24

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812	1		€ 1,47

WASHER,LOCK

Part Number	Qty.	Specifications	Price
999791200	1		€ 0,95
