Mazda RX-7 FC 1985-11 Mazda Clutch Disc & Cover

Mazda parts catalog

Parts > Mazda RX-7 > 1985-11 > Rotary-engine & Transmission > Clutch Disc & Cover(w/o Turbo)

Search by part number:

Clutch Disc & Cover(w/o Turbo)

PIN,PIVOT-CLUTCH REL.FORK

Part Number	Qty.	Specifications	Price
060316102B	1		€ 6,39

» 16103A

SEAL,OIL

Part Number	Qty.	Specifications	Price
060316103	1		€ 6,96

» 16145

RUBBER,SEAL

Part Number	Qty.	Specifications	Price
N20416145	1		€ 3,07

» 16146

COVER,VENT.

Part Number	Qty.	Specifications	Price
N30216150	1	A (N302-16-150A) - 860301 FC1322 -101928
N30216150A	1	A (N302-16-150B) 860301 - 861120 FC1322101928-102844
N30216150B	1	861120 - FC1322102844-	€ 8,88

» 16214

COVER,DUST-CLUTCH FORK

Part Number	Qty.	Specifications	Price
397516214	1	A (3975-16-214A) - 880709 FC1322 -104482
397516214A	1	880709 - FC1322104482-	€ 17,46

» 16220

COVER,FRONT CLUTCH

Part Number	Qty.	Specifications	Price
N20416220A	1		€ 44,41

» 16225

GASKET,FRONT COVER

Part Number	Qty.	Specifications	Price
854016225	1		€ 2,61

» 16232A

SUPPORTER,FORK

Part Number	Qty.	Specifications	Price
141616232A	1		€ 2,55

» 16241

PLUG,BLIND

Part Number	Qty.	Specifications	Price
854016241A	1		€ 3,11

» 16410

COVER,CLUTCH

Part Number	Qty.	Specifications	Price
N20616410	1	AN (N304-16-410)	€ 119,48

» 16432

BOLT

Part Number	Qty.	Specifications	Price
083916432	2		€ 1,67

» 16460

DISC,CLUTCH

Part Number	Qty.	Specifications	Price
N20416460A	1	ASBESTOS - 870401 FC1322 -103411
N30316460	1	ASBESTOS 870401 - 870701 FC1322103411-103557	€ 98,98
N30816460	1	NON ASBESTOS 870701 - FC1322103557-	€ 98,98

» 16510

COLLAR,CLUTCH REL.

Part Number	Qty.	Specifications	Price
H60616510A	1	A (FE84-16-510)	€ 26,77

» 16520

FORK,CLUTCH RELEASE

Part Number	Qty.	Specifications	Price
N20416520	1		€ 17,37

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9975378118	1		€ 2,63

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999401001	1		€ 2,07

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860610	1		€ 1,07

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961040	1		€ 2,37

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961045	1		€ 2,52

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961090	1		€ 2,51

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710800	1		€ 1,18

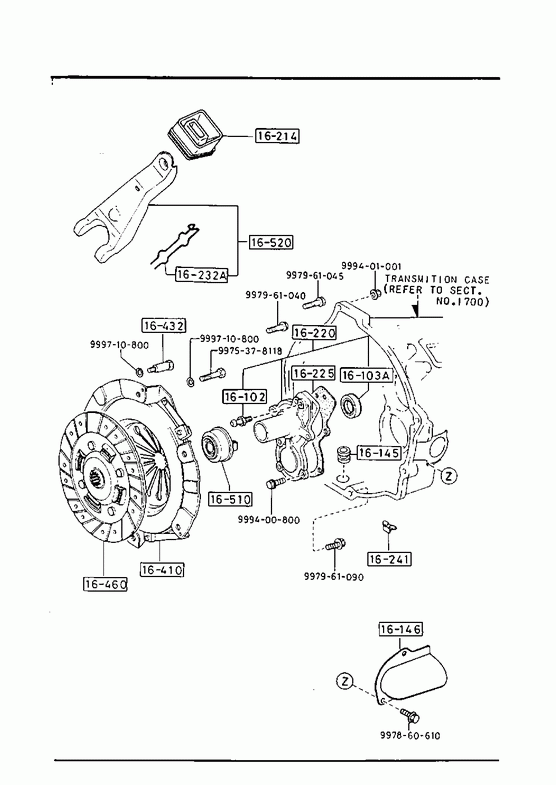

Clutch Disc & Cover(w/o Turbo)
