Parts > Mazda BT-50 > 2006-08 > Body Interior Trim > Air Conditioner

Search by part number:

Air Conditioner

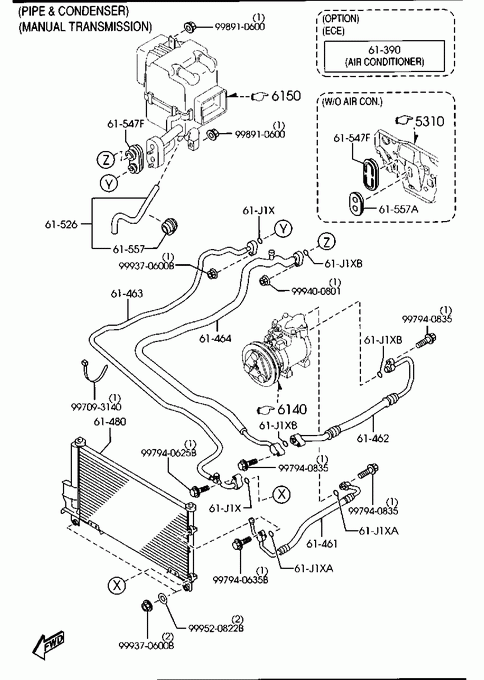

01/04 (PIPE & CONDENSER) (MANUAL TRANSMISSION)
02/04 (BRACKET & CLIP) (MANUAL TRANSMISSION)
03/04 (PIPE & CONDENSER) (AUTOMATIC TRANSMISSION)
04/04 (BRACKET & CLIP) (AUTOMATIC TRANSMISSION)

» 61390

CONDITIONER,AIR

Part Number	Qty.	Specifications	Price
UA3P61410J	1	AN (UA3P-61-410K) OPTION (AUTOMATIC TRANSMISSION>ECE) - 061201 UN -621822
UA3P61410K	1	OPTION (AUTOMATIC TRANSMISSION>ECE) 061201 - UN621822-
UR8361410E	1	AN (UR83-61-410F) OPTION (MANUAL TRANSMISSION>ECE) - 061101 UN -617734	€ 1308,40
UR8361410G	1	AN (UR83-61-410H) OPTION (MANUAL TRANSMISSION>ECE) 061101 - 061201 UN617734-621822
UR8361410H	1	OPTION (MANUAL TRANSMISSION>ECE) 061201 - UN621822-	€ 821,85

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
UR5661461	1

» 61462

HOSE,FLEXIBLE-LOW

Part Number	Qty.	Specifications	Price
UR8361462A	1

» 61463

PIPE NO.1,COOLER

Part Number	Qty.	Specifications	Price
UR8361464	1	MANUAL TRANSMISSION	€ 49,78

» 61464

PIPE NO.2,COOLER

Part Number	Qty.	Specifications	Price
UR8361465	1	MANUAL TRANSMISSION	€ 41,14

» 61480

CONDENSER

Part Number	Qty.	Specifications	Price
UM6561480A	1		€ 253,44

» 61526

HOSE,DRAIN

Part Number	Qty.	Specifications	Price
UJ066152XC	1		€ 7,74

» 61547F

GROMMET

Part Number	Qty.	Specifications	Price
UH7261549A	1	W/O AIR CON.	€ 2,12
UJ0661549C	1	W/AIR CON.

» 61557

GROMMET,REAR COOLER

Part Number	Qty.	Specifications	Price
UH7161557A	1		€ 0,85

» 61557A

GROMMET

Part Number	Qty.	Specifications	Price
UH7261557A	1	W/O AIR CON.	€ 0,93

» 61J1X

RING,'O'-NO.1

Part Number	Qty.	Specifications	Price
UH7161J17	2		€ 0,43

» 61J1XA

RING,'O'-NO.2

Part Number	Qty.	Specifications	Price
UH7261J17	2		€ 0,49

» 61J1XB

RING,'O'-NO.3

Part Number	Qty.	Specifications	Price
UH7361J17	3		€ 0,34

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997940625B	1		€ 1,53

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 90901

NUT

Part Number	Qty.	Specifications	Price
999370600B	1		€ 3,81

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520822B	1		€ 0,51

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093140	1		€ 3,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940635B	1		€ 1,47

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940835	1		€ 2,12
