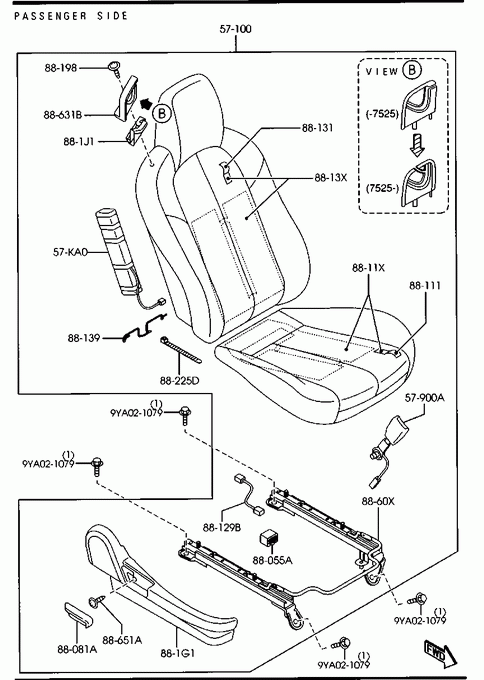

Seats 01/02 (DRIVER SIDE) 02/02 (PASSENGER SIDE)

Seats |

Mazda parts catalog

Parts > Mazda MX-5 > 2005-07 > Body Interior Trim > Seats

Search by part number:

Seats

01/02 (DRIVER SIDE)
02/02 (PASSENGER SIDE)

SEAT(R),FRONT

Part Number	Qty.	Specifications	Price
NE8557100J	1	(STA-CLOTH A>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE) - 060701 NC18 -122275**
NE8557100K	1	(STA-CLOTH A>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE) 060701 - 070525 NC18122275-139854**
NE8557100M	1	(STA-CLOTH A>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE) 070525 - NC18139854-**
NE9957100C	1	(STA-CLOTH A>SEAT BELT REMINDER:DRIVER SIDE ONLY) - 060701 NC18 -122275**
NE9957100D	1	(STA-CLOTH A>SEAT BELT REMINDER:DRIVER SIDE ONLY) 060701 - 070525 NC18122275-139854**
NE9957100F	1	(STA-CLOTH A>SEAT BELT REMINDER:DRIVER SIDE ONLY) 070525 - NC18139854-**
NF0257100C	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER SIDE ONLY) - 060201 NC18 -113093**
NF0257100D	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER SIDE ONLY) 060201 - 060701 NC18113093-122275**
NF0257100E	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER SIDE ONLY) 060701 - 070525 NC18122275-139854**
NF0257100G	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER SIDE ONLY) 070525 - NC18139854-**
NF7657100J	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE) - 060201 NC18 -113093**
NF7657100K	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE) 060201 - 060701 NC18113093-122275**
NF7657100L	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE) 060701 - 070525 NC18122275-139854**
NF7657100N	1	(STB-LEATHER>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE) 070525 - NC18139854-**

» 57900A

BELT'A'(R),FRT SEAT

Part Number	Qty.	Specifications	Price
N12157680	1	SEAT BELT REMINDER:DRIVER SIDE ONLY	€ 24,47
NEY157620	1	SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE

» 57KA0

MODULE(R)-A/B,SIDE

Part Number	Qty.	Specifications	Price
N12157KA0B	1	A (N121-57-KA0C) - 070601 NC18 -140169**	€ 342,72
N12157KA0C	1	070601 - NC18140169-**	€ 367,20

» 88055A

HOLDER,CABLE

Part Number	Qty.	Specifications	Price
NE5188055	2		€ 4,74

» 88081A

KNOB(R),KNUCKLE

Part Number	Qty.	Specifications	Price
NE51881G5	1

» 88111

TRIM(R),SEAT CUSHION

Part Number	Qty.	Specifications	Price
NE5188111B	1	CLOTH A
NF4788111A	1	LEATHER

» 8811X

SENSOR(R),SEAT CUSHION

Part Number	Qty.	Specifications	Price
NE858811X	1	A (NE85-88-11XA) (CLOTH A>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE)	€ 142,75
NF478811XA	1	A (NF47-88-11XB) (LEATHER>SEAT BELT REMINDER:DRIVER SIDE ONLY) - 060701 NC18 -122275**
NF478811XB	1	(LEATHER>SEAT BELT REMINDER:DRIVER SIDE ONLY) 060701 - NC18122275-**
NF768811X	1	A (NF76-88-11XA) (LEATHER>SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE)

» 88129B

CORD,SHORT

Part Number	Qty.	Specifications	Price
NE8588129	1	SEAT BELT REMINDER:DRIVER & PASSENGER BOTH SIDE

» 88131

TRIM(R),SEAT BACK

Part Number	Qty.	Specifications	Price
NE5588131A	1	CLOTH A
NF4788131	1	LEATHER - 060201 NC18 -113093**
NF4788131A	1	LEATHER 060201 - NC18113093-**

» 88139

WIRE,TRIM

Part Number	Qty.	Specifications	Price
NE5588139	1

» 8813X

HEATER&PAD(R),BACK

Part Number	Qty.	Specifications	Price
NF478813X	1	LEATHER	€ 166,01

» 88198

SCREW

Part Number	Qty.	Specifications	Price
NE5188068	2

» 881G1

COVER NO.1,SIDE-F.SEAT

Part Number	Qty.	Specifications	Price
NE51881G1	1

» 881J1

PROTECTOR NO.1

Part Number	Qty.	Specifications	Price
NE51881J1	1

» 88225D

BAND

Part Number	Qty.	Specifications	Price
B25H88244	6		€ 0,42

» 8860X

ADJUSTER UNIT(R),FRT SEAT

Part Number	Qty.	Specifications	Price
N12188A00	1		€ 133,17

» 88631B

GUIDE(R),BELT-SEAT

Part Number	Qty.	Specifications	Price
NE51881L7	1	- 070525 NC18 -139854**
NG90881L7	1	070525 - NC18139854-**

» 88651A

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
G21188651	2		€ 0,47

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9YA021079	1		€ 1,69
