Mazda MX-5 NC 2005-07 Mazda Rear Bumper

Mazda parts catalog

Parts > Mazda MX-5 > 2005-07 > Body Exterior Trim > Rear Bumper

Search by part number:

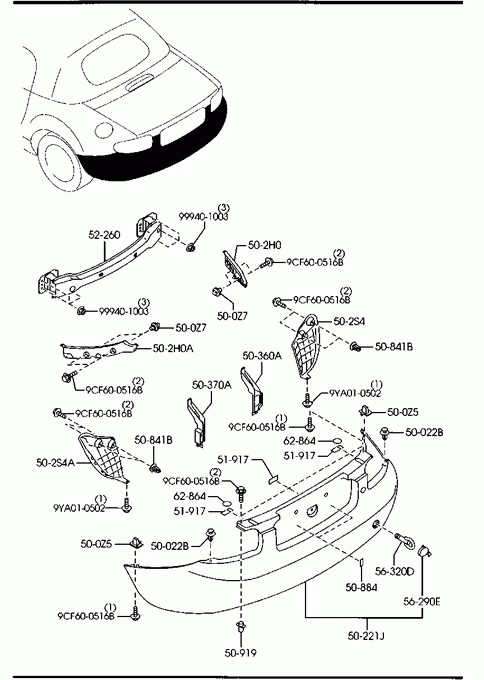

Rear Bumper
» 50022B FASTENER

Part Number Qty. Specifications Price
GD7A50EA1 2
€ 1,32

» 500Z5 GROMMET,SCREW

Part Number Qty. Specifications Price
BP4K500Z5 2 060626 -
NC18**121871- € 0,92
GJ6A500Z5 2 - 060626
NC18** -121871 € 0,98

» 500Z7 GROMMET,SCREW

Part Number Qty. Specifications Price
NE51500Z1A 4
€ 1,92

» 50221J BUMPER,REAR

Part Number Qty. Specifications Price
NFY05022X 1 - 070201
NC18** -133236
NFY05022XA 1 070201 -
NC18**133236-

» 502H0 RETAINER(R),REAR BUMPER

Part Number Qty. Specifications Price
NF79502H1B 1
€ 10,10

» 502H0A RETAINER(L),REAR BUMPER

Part Number Qty. Specifications Price
NF79502J1B 1
€ 10,10

» 502S4 SHIELD(R),SPLASH-R.BUMPER

Part Number Qty. Specifications Price
NF7950341C 1 W/O RR. MUD FLAP
- 061201
NC18** -129924 € 17,13
NF8550341C 1 W/RR. MUD FLAP
- 061201
NC18** -129924 € 27,85

» 502S4A SHIELD(L),SPLASH-R.BUMPER

Part Number Qty. Specifications Price
NF7950351C 1 W/O RR. MUD FLAP
- 061201
NC18** -129924 € 17,13
NF8550351C 1 W/RR. MUD FLAP
- 061201
NC18** -129924 € 27,85

» 50360A PLATE(R),SET-REAR BUMPER

Part Number Qty. Specifications Price
NF79502A1A 1
€ 13,41

» 50370A PLATE(L),SET-RR BUMPER S.

Part Number Qty. Specifications Price
NF79502B1A 1
€ 13,41

» 50841B GROMMET,SCREW

Part Number Qty. Specifications Price
H26050841 4
€ 1,84

» 50884 TAPE

Part Number Qty. Specifications Price
B45550G32 2
€ 1,12

» 50919 GROMMET,SCREW-SIDE WINDOW

Part Number Qty. Specifications Price
B21650919 2
€ 2,14

» 51917 SEAL,RUBBER

Part Number Qty. Specifications Price
NC10502G2 3
€ 1,08

» 52260 REINF.,REAR BUMPER

Part Number Qty. Specifications Price
NE7550260A 1
€ 146,69

» 56290E COVER,TOWING HOOK

Part Number Qty. Specifications Price
NF7950EK1A 1

» 56320D HOOK,TOWING

Part Number Qty. Specifications Price
NE5150EJ0 1
€ 14,91

» 62864 TAPE,PROTECTOR-STOPPER

Part Number Qty. Specifications Price
G04362864A 2
€ 2,44

» 90720 SCREW

Part Number Qty. Specifications Price
9CF600516B 1
€ 1,64

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999401003 1
€ 2,18

» 99601 BOLT

Part Number Qty. Specifications Price
9YA010502 1
€ 2,63

Part Number	Qty.	Specifications	Price
BP4K500Z5	2	060626 - NC18121871-**	€ 0,92
GJ6A500Z5	2	- 060626 NC18 -121871**	€ 0,98

Part Number	Qty.	Specifications	Price
NFY05022X	1	- 070201 NC18 -133236**
NFY05022XA	1	070201 - NC18133236-**

Part Number	Qty.	Specifications	Price
NF7950341C	1	W/O RR. MUD FLAP - 061201 NC18 -129924**	€ 17,13
NF8550341C	1	W/RR. MUD FLAP - 061201 NC18 -129924**	€ 27,85

Part Number	Qty.	Specifications	Price
NF7950351C	1	W/O RR. MUD FLAP - 061201 NC18 -129924**	€ 17,13
NF8550351C	1	W/RR. MUD FLAP - 061201 NC18 -129924**	€ 27,85
