Mazda MX-5 NC 2005-07 Mazda Rear Differentials

Mazda parts catalog

Parts > Mazda MX-5 > 2005-07 > Chassis Axle Suspension,brake & Steering > Rear Differentials(normal Diff.)

Search by part number:

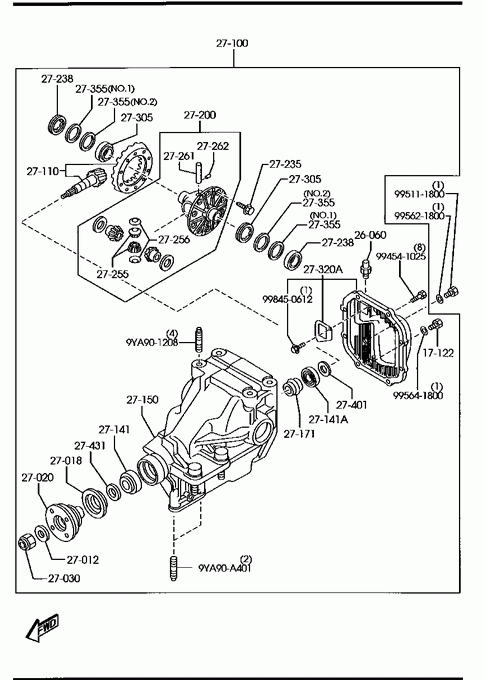

Rear Differentials(normal Diff.)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
MA0327165	1

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
MA0327120B	1		€ 95,68

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
MA2927100D	1	A (MA29-27-100E) - 070126 NC18 -132830**	€ 1327,69
MA2927100E	1	070126 - NC18132830-**	€ 1457,45

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
MA0627110A	1

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
075527210	1		€ 42,29

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
M02527210	1		€ 40,74

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
MA2927150A	1	A (MA29-27-150B) - 070126 NC18 -132830**
MA2927150B	1	070126 - NC18132830-**

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
MA0127171A	1

» 27200

DIFFERENTIAL

Part Number	Qty.	Specifications	Price
MA2927200A	1

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
P04327238A	2		€ 5,97

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
FNE127255	2	AN (H010-27-255)	€ 32,52

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M02527256	2	T=0.8MM	€ 3,36

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
M02527261A	1		€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27305

BEARING

Part Number	Qty.	Specifications	Price
011827350A	2		€ 51,70

» 27320A

COVER,REAR

Part Number	Qty.	Specifications	Price
MA2927320	1

» 27355

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
R00127355	2	T=5.5MM ILLUST. NO.1	€ 11,31
R00127356	2	T=5.6MM ILLUST. NO.1	€ 11,21
R00127357	2	T=5.65MM ILLUST. NO.1	€ 11,21
R00127358	2	T=5.7MM ILLUST. NO.1	€ 11,21
R00127359	2	T=5.75MM ILLUST. NO.1	€ 11,31
R00127361	2	T=5.8MM ILLUST. NO.1	€ 10,99
R00127362	2	T=5.85MM ILLUST. NO.1	€ 11,21
R00127363	2	T=5.9MM ILLUST. NO.1	€ 11,21
R00127364	2	T=5.95MM ILLUST. NO.1	€ 11,21
R00127365	2	T=6MM ILLUST. NO.1	€ 10,77
R00127366	2	T=6.05MM ILLUST. NO.1	€ 11,21
R00127367	2	T=6.1MM ILLUST. NO.1	€ 10,77
R00127368	2	T=6.15MM ILLUST. NO.1	€ 10,77
R00127369	2	T=6.2MM ILLUST. NO.1	€ 10,77
R00127371	2	T=6.25MM ILLUST. NO.1	€ 6,59
R00127372	2	T=6.3MM ILLUST. NO.1	€ 6,59
R00127373	2	T=6.35MM ILLUST. NO.1	€ 6,59
R00127374	2	T=6.4MM ILLUST. NO.1	€ 6,59
R00127375	2	T=6.5MM ILLUST. NO.1	€ 6,59
R00127376	2	ILLUST. NO.2

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69
022327416	1	T=3.095MM	€ 6,71
022327417	1	T=3.125MM	€ 6,71
022327418	1	T=3.155MM	€ 6,71
022327419	1	T=3.185MM	€ 6,71
022327422	1	T=3.215MM	€ 6,71
022327423	1	T=3.245MM	€ 6,71
022327424	1	T=3.275MM	€ 6,71
022327425	1	T=3.305MM	€ 6,71
022327426	1	T=3.335MM	€ 6,71
022327427	1	T=3.365MM	€ 6,71
022327428	1	T=3.395MM	€ 6,71
022327433	1	T=3.425MM	€ 6,71
022327434	1	T=3.455MM	€ 6,58

» 27431

SPACER

Part Number	Qty.	Specifications	Price
PA0127431	1		€ 7,05

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450612	1		€ 2,32

» 90857

STUD

Part Number	Qty.	Specifications	Price
9YA901208	1

» 90857

STUD

Part Number	Qty.	Specifications	Price
9YA90A401	1

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621800	1		€ 0,19

» 99601

BOLT

Part Number	Qty.	Specifications	Price
994541025	1

Rear Differentials(normal Diff.)
