Mazda MX-5 NC 2005-07 Mazda Cooling System 01/03 02/03 03/03

Mazda parts catalog

Parts > Mazda MX-5 > 2005-07 > Gasoline-engine 4-cylinder Supplement > Cooling System

Search by part number:

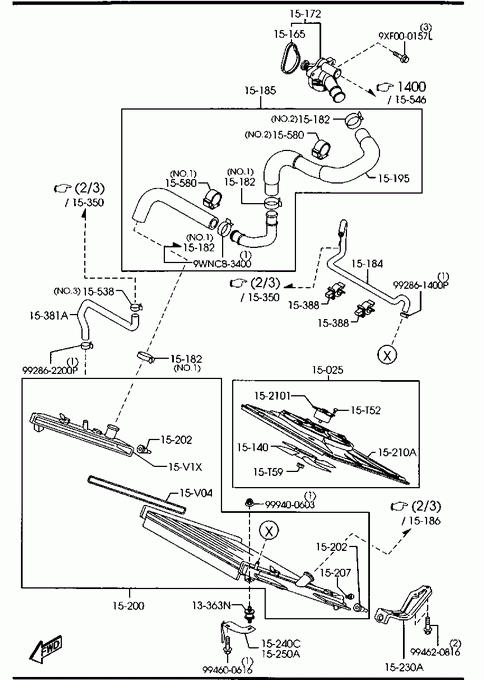

Cooling System

RUBBER,MOUNTING

Part Number	Qty.	Specifications	Price
022213363	2	AN (B092-61-481)	€ 4,21

» 15025

FAN,ELECTRIC

Part Number	Qty.	Specifications	Price
LFG115025F	1		€ 219,23

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
LFG115140	1		€ 24,32

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
LF0215165	1	- 060901 NC18 -124658**	€ 12,93
LF0315165A	1	060901 - NC18124658-**

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
LF5015170C	1	AN (LF53-15-170) - 060308 NC18 -115784**	€ 41,90
LF5315170A	1	AN (LF53-15-170B) 060901 - 070417 NC18124658-137998**	€ 50,48
LF7015170	1	070417 - NC18137998-**
LFE215170	1	AN (L328-15-170A) 060308 - 060901 NC18115784-124658**

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
LFG115182	4	ILLUST. NO.1 050804 - NC18100598-**	€ 5,06
LFG215182	2	ILLUST. NO.2	€ 5,06

» 15184

HOSE,WATER

Part Number	Qty.	Specifications	Price
LFG115184	1		€ 25,98

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
LFG11518YC	1	AN (LFG2-15-18Y) - 050804 NC18 -100598**
LFG21518Y	1	050804 - 060308 NC18100598-115784**	€ 82,73
LFG71518Y	1	AN (LFG7-15-18YA) 060308 - 060710 NC18115784-122568**
LFG71518YA	1	060710 - 060901 NC18122568-124658**
LFG81518Y	1	AN (LFG8-15-18YA) 060901 - 061201 NC18124658-129924**
LFG81518YA	1	061201 - NC18129924-**

» 15195

HOSE,WATER

Part Number	Qty.	Specifications	Price
LFG715185	1	060308 - 060901 NC18115784-124658**	€ 29,52

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
LFG215200E	1		€ 181,96

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
LFG115202	2		€ 4,54

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
NF0115203	1	CALSONIC	€ 8,27

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
LFG115150A	1

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
LFG115210E	1		€ 37,45

» 15230A

BRACKET,RADIATOR LWR

Part Number	Qty.	Specifications	Price
LFG115231	1	FOR RIGHT SIDE	€ 10,47
LFG215231	1	FOR LEFT SIDE	€ 10,47

» 15240C

BRACKET(R),RADIATOR

Part Number	Qty.	Specifications	Price
LFG115241A	1		€ 2,20

» 15250A

BRACKET(L),RADIATOR

Part Number	Qty.	Specifications	Price
LFG115251A	1		€ 2,20

» 15381A

HOSE,SUB TANK

Part Number	Qty.	Specifications	Price
LFG115381	1	AN (LFG1-15-381A) - 051219 NC18 -110054**
LFG115381A	1	051219 - NC18110054-**

» 15388

CLIP,HOSE

Part Number	Qty.	Specifications	Price
GY0115547	2

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B6BF15538	1	ILLUST. NO.1	€ 2,10
LFG115538	2	ILLUST. NO.2
LFG215538	1	ILLUST. NO.3

» 15580

CLIP,WATER HOSE

Part Number	Qty.	Specifications	Price
AJ5115581	1	ILLUST. NO.1	€ 2,76
LFG115581	1	AN (LFG1-15-581A) ILLUST. NO.2 - 060710 NC18 -122568**
LFG115581A	1	ILLUST. NO.2 060710 - NC18122568-**	€ 5,00

» 15T52

SCREW

Part Number	Qty.	Specifications	Price
B6S815T52	3		€ 1,26

» 15T59

NUT,COOLING FAN

Part Number	Qty.	Specifications	Price
B59515T59	1		€ 2,79

» 15V04

RING,'O'-DRAIN COCK RADI.

Part Number	Qty.	Specifications	Price
LFG115V04	1

» 15V1X

TANK,RADIATOR-LOWER

Part Number	Qty.	Specifications	Price
LFG215V1XB	1

» 90720

SCREW

Part Number	Qty.	Specifications	Price
994600616	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992861400P	1		€ 2,44

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862200P	1		€ 2,73

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3400	1		€ 4,02

» 99601

BOLT

Part Number	Qty.	Specifications	Price
994620816	1

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9XF000157L	1		€ 5,30
