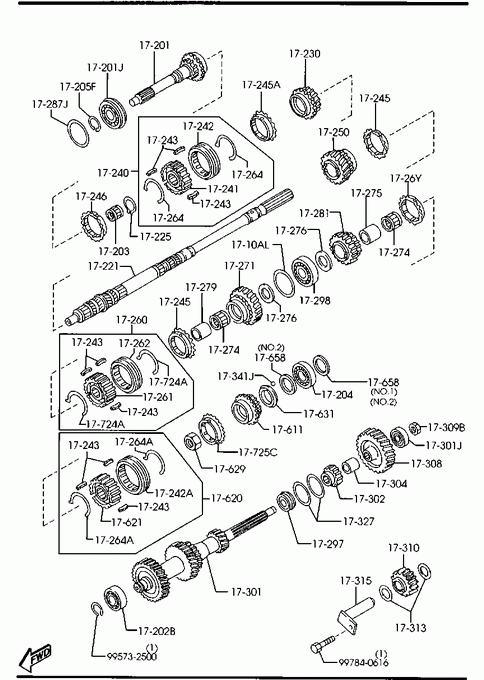

Manual Transmission Gears(5-speed)
-
» 1710AL SHIM,ADJUST Part Number Qty. Specifications Price 999636310 1 T=0.1MM € 1,62 999636330 1 T=0.3MM € 1,94 » 17201 GEAR,MAIN DRIVE Part Number Qty. Specifications Price M52617201 1 » 17201J BEARING,BALL-MAIN DRIVE GEAR Part Number Qty. Specifications Price M50217295C 1 KOYO
SUPPLIER IN SELECTION€ 34,28 M50517295 1 HANWHA
SUPPLIER IN SELECTION» 17202B BEARING,BALL Part Number Qty. Specifications Price F52017171C 1 KOYO € 27,44 » 17203 BEARING,NEEDLE Part Number Qty. Specifications Price M50117210A 1 € 10,29 » 17204 BEARING,BALL-MAIN SHAFT Part Number Qty. Specifications Price M50317204 1 NSK € 28,61 » 17205F RING,RETAINING Part Number Qty. Specifications Price M50117205 1 € 2,10 » 17221 SHAFT,MAIN Part Number Qty. Specifications Price M50517221F 1 » 17225 RING,SNAP Part Number Qty. Specifications Price 031717225 1 € 2,16 » 17230 GEAR,3RD Part Number Qty. Specifications Price M52817231 1 » 17240 HUB SET,CLUTCH-3RD & 4TH Part Number Qty. Specifications Price M52017240 1 » 17241 HUB,CLUTCH Part Number Qty. Specifications Price M50317241 1 » 17242 SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price M50417242 1 » 17242A SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price F40117242A 1 € 43,46 » 17243 KEY,SYNCHRONIZER Part Number Qty. Specifications Price F40117243C 9 € 3,24 » 17245 RING,SYNCHRONIZER Part Number Qty. Specifications Price M5041726Y 2 € 148,43 » 17245A RING,SYNCHRONIZER Part Number Qty. Specifications Price M5051726Y 1 » 17246 RING,SYNCHRONIZER Part Number Qty. Specifications Price M5061726Y 1 » 17250 GEAR,2ND Part Number Qty. Specifications Price M53517251 1 € 134,26 » 17260 HUB SET,CLUTCH-1ST & 2ND Part Number Qty. Specifications Price M52517260 1 € 231,10 » 17261 HUB,CLUTCH Part Number Qty. Specifications Price M51517261 1 » 17262 SLEEVE,CLUTCH HUB Part Number Qty. Specifications Price M51217262 1 » 17264 SPRING,SYNCHRO. KEY Part Number Qty. Specifications Price G40117264 2 A (G402-17-264) € 2,59 » 17264A SPRING,SYNCHRONIZER Part Number Qty. Specifications Price F40117264A 2 € 2,70 » 1726Y RING,SYNCHRONIZER Part Number Qty. Specifications Price M5031726Y 1 » 17271 GEAR,1ST Part Number Qty. Specifications Price M52517271 1 » 17274 BEARING,NEEDLE Part Number Qty. Specifications Price 406917283A 2 € 27,73 » 17275 RACE,INNER Part Number Qty. Specifications Price 406917284E 1 € 35,57 » 17276 WASHER,THRUST Part Number Qty. Specifications Price 025917274A 2 T=3.0MM € 5,25 025917276 2 T=2.2MM € 5,08 025917277 2 T=2.7MM € 4,78 025917278 2 T=3.2MM € 4,78 025917279 2 T=3.7MM € 4,08 » 17279 SLEEVE,GEAR Part Number Qty. Specifications Price 854017275A 1 € 25,44 » 17281 GEAR,REVERSE Part Number Qty. Specifications Price M51317281C 1 € 118,68 » 17287J SHIM,ADJUST Part Number Qty. Specifications Price 9996363010 1 T=1MM 999636310 1 T=0.1MM € 1,62 999636330 1 T=0.3MM € 1,94 999636335 1 T=0.35MM € 2,91 999636340 1 T=0.4MM € 2,91 999636345 1 T=0.45MM € 2,91 999636350 1 T=0.5MM 999636355 1 T=0.55MM € 2,91 999636360 1 T=0.6MM 999636365 1 T=0.65MM 999636370 1 T=0.7MM 999636375 1 T=0.75MM 999636380 1 T=0.8MM 999636385 1 T=0.85MM 999636390 1 T=0.9MM 999636395 1 T=0.95MM » 17297 BEARING,BALL-COUNTER SHAFT G. Part Number Qty. Specifications Price M50617297 1 A (M503-17-297A) € 54,13 » 17298 BEARING Part Number Qty. Specifications Price M50217298B 1 € 35,94 » 17301 GEAR,COUNTER SHAFT Part Number Qty. Specifications Price M53617301A 1 € 599,03 » 17301J BEARING,BALL Part Number Qty. Specifications Price M50217299B 1 KOYO
SUPPLIER IN SELECTION€ 22,52 M50417299 1 HANWHA
SUPPLIER IN SELECTION» 17302 GEAR,COUNTER REVERSE Part Number Qty. Specifications Price M51617302 1 € 39,68 » 17304 SPACER Part Number Qty. Specifications Price M50417304 1 € 5,14 » 17308 GEAR,COUNTER-5TH Part Number Qty. Specifications Price M51017308 1 - 070301
NC18** -135489€ 126,91 » 17309B NUT,LOCK-COUNTER SHAFT BR Part Number Qty. Specifications Price M50117309 1 € 9,13 » 17310 GEAR,REVERSE IDLE Part Number Qty. Specifications Price M51517310A 1 » 17313 WASHER,THRUST-REVERSE IDLE G. Part Number Qty. Specifications Price M50117313 2 T=2.0MM € 3,21 » 17315 SHAFT,REV. IDLE GEAR Part Number Qty. Specifications Price M50117140 1 € 11,45 » 17327 SHIM,ADJUST-COUNTER SHAFT GEAR Part Number Qty. Specifications Price 030517327 2 T=0.1MM € 2,03 030517328 2 T=0.3MM € 2,43 » 17341J BALL,STEEL Part Number Qty. Specifications Price 996111500 1 € 1,93 » 17611 GEAR,OVER TOP Part Number Qty. Specifications Price M51717611 1 - 070301
NC18** -135489€ 180,29 M51817611 1 » 17620 HUB,CLUTCH-5TH & REV. Part Number Qty. Specifications Price M50517620C 1 € 122,69 » 17621 HUB,CLUTCH Part Number Qty. Specifications Price M50517621A 1 € 61,77 » 17629 NUT,LOCK-CLUTCH HUB Part Number Qty. Specifications Price 860117629 1 € 18,58 » 17631 WASHER,THRUST LOCK-OVER TOP G. Part Number Qty. Specifications Price 088417632C 1 T=6.2MM € 9,66 088417633C 1 T=6.4MM € 8,69 088417634C 1 T=6.5MM € 8,69 088417635C 1 T=6.6MM € 10,03 » 17658 RING Part Number Qty. Specifications Price M50817637A 1 T=2.9MM
ILLUST. NO.1€ 3,02 M50917637A 2 T=3MM
ILLUST. NO.2€ 3,11 M51017637A 1 T=3.1MM
ILLUST. NO.1€ 3,08 » 17724A SPRING,SYNCHRO.KEY Part Number Qty. Specifications Price W50117724 2 € 2,28 » 17725C RING,SYNCHRONIZER Part Number Qty. Specifications Price V50117725 1 € 18,74 » 99571 RING,SNAP Part Number Qty. Specifications Price 995732500 1 € 2,20 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997840616 1 € 1,50
