Mazda MX-5 NC 2005-07 Mazda Cylinder Head & Cover 01/02 02/02

Mazda parts catalog

Parts > Mazda MX-5 > 2005-07 > Gasoline-engine 4-cylinder Transmission > Cylinder Head & Cover(2000cc)

Search by part number:

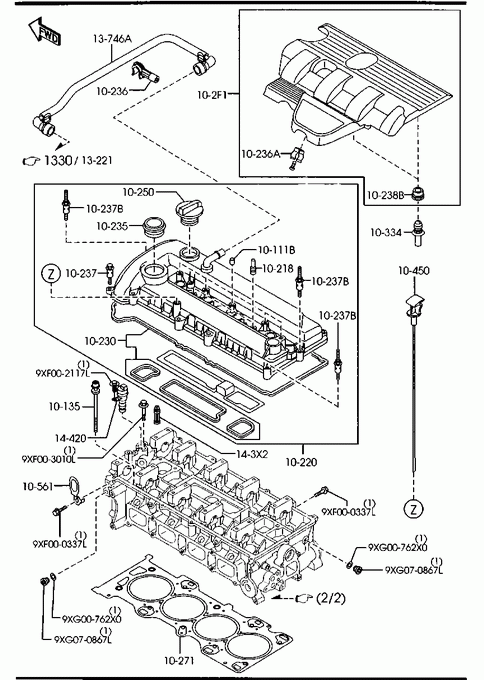

Cylinder Head & Cover(2000cc)
01/02
02/02

» 10111B INSERT

Part Number Qty. Specifications Price
LF0210219 5

» 10135 BOLT,CYLINDER HEAD

Part Number Qty. Specifications Price
LF0110135 10 AN (ZZC0-10-135)
€ 5,82

» 10218 STUD

Part Number Qty. Specifications Price
L35810218 2

» 10220 COVER,CYLINDER HEAD

Part Number Qty. Specifications Price
LFE310210A 1

» 10230 COVER,SEAL

Part Number Qty. Specifications Price
LF0210230 1
€ 26,49

» 10235 GASKET,HEAD COVER

Part Number Qty. Specifications Price
L362102D5A 1
€ 15,93

» 10236 CLIP

Part Number Qty. Specifications Price
LFG210236A 1

» 10236A CLIP

Part Number Qty. Specifications Price
L32310236 1

» 10237 WASHER,SEALING-HEAD COVER

Part Number Qty. Specifications Price
LF0910237 11
€ 5,37

» 10237B WASHER,SEALING

Part Number Qty. Specifications Price
LF1310237 3
€ 6,22

» 10238B RUBBER,MOUNTING

Part Number Qty. Specifications Price
L3G610238 2
€ 5,87

» 10250 CAP,OIL FILLER

Part Number Qty. Specifications Price
LF0310250 1
€ 15,87

» 10271 GASKET,CYLINDER HEAD

Part Number Qty. Specifications Price
L3G210271A 1
€ 48,49

» 102F1 PLATE,PLUG HOLE

Part Number Qty. Specifications Price
LFG1102F0C 1
€ 80,99

» 10334 ADAPTER

Part Number Qty. Specifications Price
LFG110334B 2
€ 9,01

» 10450 GAUGE,OIL LEVEL

Part Number Qty. Specifications Price
LFE210450A 1 A (LFE2-10-450B)
- 061101
NC18** -128215 € 11,99
LFE210450C 1 061101 -
NC18**128215-

» 10561 HANGER,ENGINE

Part Number Qty. Specifications Price
L30910561 1
€ 4,00

» 13746A PIPE,VENTILATION

Part Number Qty. Specifications Price
LFG11374X 1 AN (LFG1-13-74XA)
- 051201
NC18** -108753
LFG11374XA 1 051201 -
NC18**108753-

» 143X2 FILTER,OIL

Part Number Qty. Specifications Price
L3G2143X2 1
€ 6,32

» 14420 VALVE,OIL CONTROL

Part Number Qty. Specifications Price
L3K914420A 1
€ 289,23

» 99201 WASHER

Part Number Qty. Specifications Price
9XG00762X0 1

» 99305 PLUG

Part Number Qty. Specifications Price
9XG070867L 1

» 99601 BOLT

Part Number Qty. Specifications Price
9XF000337L 1

» 99601 BOLT

Part Number Qty. Specifications Price
9XF002117L 1
€ 1,18

» 99601 BOLT

Part Number Qty. Specifications Price
9XF003010L 1

Part Number	Qty.	Specifications	Price
LF0110135	10	AN (ZZC0-10-135)	€ 5,82

Part Number	Qty.	Specifications	Price
LFE210450A	1	A (LFE2-10-450B) - 061101 NC18 -128215**	€ 11,99
LFE210450C	1	061101 - NC18128215-**

Part Number	Qty.	Specifications	Price
LFG11374X	1	AN (LFG1-13-74XA) - 051201 NC18 -108753**
LFG11374XA	1	051201 - NC18108753-**

Cylinder Head & Cover(2000cc)
