Mazda MX-5 NB 2000-08 Mazda Air Conditioner 01/03 (OPTION)(PIPE & CONDENSER) 02/03 ((STD.)>(2301-))(PIPE & CONDENSER) 03/03 (BRACKET & CLIP)

Mazda parts catalog

Parts > Mazda MX-5 > 2000-08 > Body Dashboard > Air Conditioner

Search by part number:

Air Conditioner

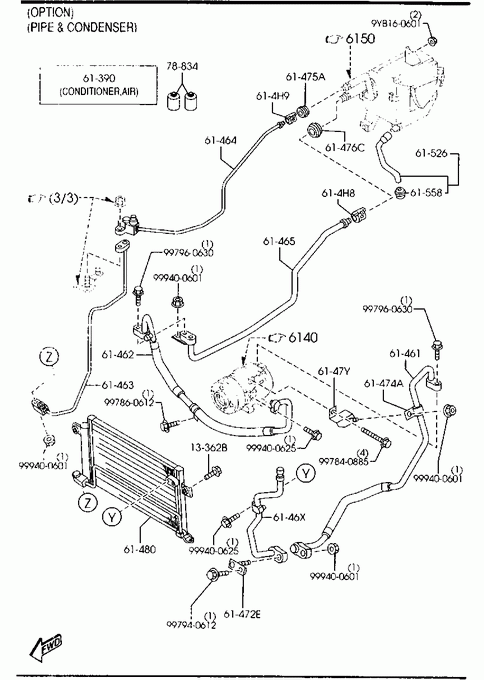

01/03 (OPTION)(PIPE & CONDENSER)
02/03 ((STD.)>(2301-))(PIPE & CONDENSER)
03/03 (BRACKET & CLIP)

BOLT

Part Number	Qty.	Specifications	Price
R20513362	2		€ 0,93

» 61390

CONDITIONER,AIR

Part Number	Qty.	Specifications	Price
NC7361410J	1	AN (NC73-61-410K) OPTION - 001020 NB18 -202726**	€ 1418,94
NC7361410K	1	AN (NC73-61-410L) OPTION 001020 - 010201 NB18202726-206579**	€ 1170,84
NC7361410L	1	AN (NC73-61-410M) OPTION 010201 - 010801 NB18206579-214807**	€ 1418,94
NC7361410M	1	OPTION 010801 - NB18214807-**

» 61461

HOSE,FLEXIBLE-HIGH

Part Number	Qty.	Specifications	Price
NC7261461C	1	CG (NC72-61-461D)	€ 110,12

» 61462

HOSE,FLEXIBLE-LOW

Part Number	Qty.	Specifications	Price
NC72614T0B	1	- 010201 NB18 -206579**
NC72614T0C	1	AN (NC72-61-4T0D) 010201 - 010801 NB18206579-214807**
NC72614T0D	1	CG (NC72-61-4T0E) 010801 - NB18214807-**	€ 183,20

» 61463

PIPE NO.1,COOLER

Part Number	Qty.	Specifications	Price
NC7261464A	1	OPTION	€ 56,73
NC7361464	1	STD. 020301 - NB18229254-**	€ 85,95

» 61464

PIPE NO.2,COOLER

Part Number	Qty.	Specifications	Price
NC7261465A	1		€ 205,95

» 61465

PIPE NO.3,COOLER

Part Number	Qty.	Specifications	Price
NC726146ZA	1	- 010201 NB18 -206579**
NC726146ZB	1	AN (NC72-61-46ZC) 010201 - 010801 NB18206579-214807**
NC726146ZC	1	010801 - NB18214807-**

» 6146X

PIPE,COOLER

Part Number	Qty.	Specifications	Price
NC726146XA	1		€ 97,78

» 61472E

BRACKET,CLAMP

Part Number	Qty.	Specifications	Price
N05461472	1		€ 7,75

» 61474A

CLIP

Part Number	Qty.	Specifications	Price
NC7261474	1

» 61475A

GROMMET

Part Number	Qty.	Specifications	Price
B09261475	1		€ 4,01

» 61476C

GROMMET

Part Number	Qty.	Specifications	Price
B09261476A	1		€ 4,01

» 6147Y

BRACKET

Part Number	Qty.	Specifications	Price
NC726147Y	1		€ 3,93

» 61480

CONDENSER

Part Number	Qty.	Specifications	Price
NC7261480A	1	A (NC72-61-480B) OPTION	€ 507,33
NC7361480	1	A (NC73-61-480A) STD. 020301 - NB18229254-**

» 614H8

CLIP

Part Number	Qty.	Specifications	Price
NC72614H5	1		€ 7,42

» 614H9

CLIP

Part Number	Qty.	Specifications	Price
NC73614H5	1		€ 7,42

» 61526

HOSE,DRAIN

Part Number	Qty.	Specifications	Price
NC726152X	1		€ 24,01

» 61558

GROMMET,UNIT-COOLING

Part Number	Qty.	Specifications	Price
LB4661558A	1		€ 6,39

» 78834

REFRIGERANT DRUM

Part Number	Qty.	Specifications	Price
W25761R13	2	200G OPTION

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997840885	1		€ 2,93

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB160601	1		€ 3,37

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960630	1		€ 1,39
