Mazda MX-5 NB 1998-01 Mazda Cooling System

Mazda parts catalog

Parts > Mazda MX-5 > 1998-01 > Gasoline-engine 4-cylinder Supplement > Cooling System(1800cc)

Search by part number:

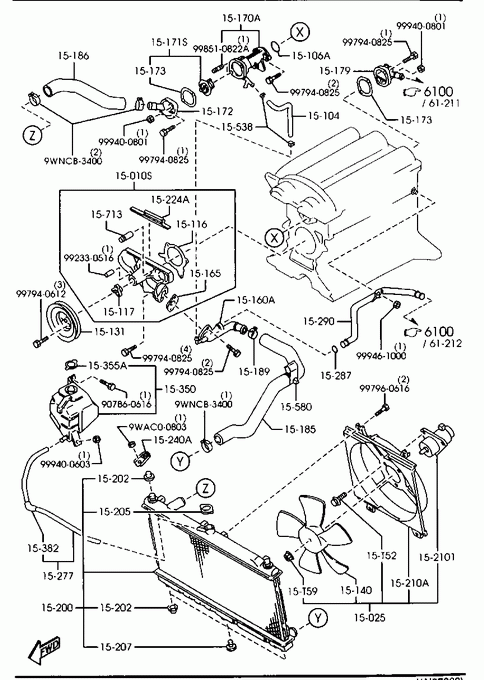

Cooling System(1800cc)
» 15010S PUMP SET,WATER

Part Number Qty. Specifications Price
8ABB15010A 1
€ 87,40

» 15025 FAN,ELECTRIC

Part Number Qty. Specifications Price
BP4W15025 1
€ 402,08

» 15104 HOSE,WATER BY-PASS

Part Number Qty. Specifications Price
B61P15261A 1
€ 7,88

» 15106A RING,'O'-WATER PUMP

Part Number Qty. Specifications Price
B61P15106 1 AN (B61P-15-106A)
€ 2,62

» 15116 GASKET,WATER PUMP

Part Number Qty. Specifications Price
B6BF15116 1
€ 8,78

» 15117 BOSS,W.PUMP PULLEY

Part Number Qty. Specifications Price
E30115117 1
€ 16,43

» 15131 PULLEY,WATER PUMP

Part Number Qty. Specifications Price
B3C715131 1
€ 42,42

» 15140 FAN,COOLING

Part Number Qty. Specifications Price
BP4W15140 1
€ 52,18

» 15160A INLET,WATER PUMP

Part Number Qty. Specifications Price
B61P15160 1
€ 100,91

» 15165 GASKET,W.PUMP INLET

Part Number Qty. Specifications Price
B62115165 1 NON ASBESTOS
€ 2,90

» 15170A COVER,THERMO

Part Number Qty. Specifications Price
BPE815170A 1
€ 53,00

» 15171S THERMOSTAT SET

Part Number Qty. Specifications Price
8ABE15171 1
€ 20,96

» 15172 COVER,THERMOSTAT

Part Number Qty. Specifications Price
BPE815172 1
€ 18,90

» 15173 GASKET,THERMOSTAT COVER

Part Number Qty. Specifications Price
B62115173 2 NON ASBESTOS
€ 5,10

» 15179 OUTLET,WATER PUMP

Part Number Qty. Specifications Price
BP4W15179 1
€ 22,13

» 15185 HOSE,WATER

Part Number Qty. Specifications Price
BP4W15185B 1
€ 17,73

» 15186 HOSE,WATER

Part Number Qty. Specifications Price
BP4W15186B 1
€ 20,41

» 15189 CLAMP,HOSE

Part Number Qty. Specifications Price
B36615182 1
€ 3,79

» 15200 RADIATOR

Part Number Qty. Specifications Price
BP4W15200A 1
€ 331,81

» 15202 RUBBER,MOUNT

Part Number Qty. Specifications Price
JE4815202 4
€ 4,36

» 15205 CAP,RADIATOR

Part Number Qty. Specifications Price
KL0115205 1
€ 14,23

» 15207 COCK,DRAIN

Part Number Qty. Specifications Price
NF0115203 1 CALSONIC
€ 8,27

» 152101 FAN DRIVE

Part Number Qty. Specifications Price
Z5A115150 1 CALSONIC
€ 211,75

» 15210A COWLING,RADIATOR

Part Number Qty. Specifications Price
BP4W15210 1
€ 86,93

» 15224A RUBBER,SEAL

Part Number Qty. Specifications Price
B66010543B 1
€ 8,37

» 15240A BRACKET,RADIATOR UP.

Part Number Qty. Specifications Price
BP4W15231 2
€ 3,76

» 15277 HOSE,WATER SUB TANK

Part Number Qty. Specifications Price
BP4W15380 1
€ 11,40

» 15287 RING,'O'-WATER BYPASS

Part Number Qty. Specifications Price
E30115287 1
€ 1,97

» 15290 PIPE,BYPASS

Part Number Qty. Specifications Price
BP4W15290A 1
€ 35,97

» 15350 TANK,SUB-RADIATOR

Part Number Qty. Specifications Price
BP4W15350A 1 A (BP4W-15-350B)
- 000301
NB18*2 -150272 € 38,17
BP4W15350B 1 000301 -
NB18*2150272- € 39,71

» 15355A CAP,SUB TANK

Part Number Qty. Specifications Price
SLA115355 1
€ 11,34

» 15382 PROTECTOR,HOSE-SUB TANK

Part Number Qty. Specifications Price
BP4W15382 1

» 15538 CLAMP,HOSE

Part Number Qty. Specifications Price
B6BF15538 2
€ 2,10

» 15580 CLIP,WATER HOSE

Part Number Qty. Specifications Price
B6MC15581A 1 AN (B6MC-15-581B)
- 980301
NB18*2 -103740
B6MC15581B 1 980301 -
NB18*2103740- € 3,55

» 15713 SET PIN,SPRING

Part Number Qty. Specifications Price
F80115713 1
€ 1,68

» 15T52 SCREW

Part Number Qty. Specifications Price
B6S815T52 3
€ 1,26

» 15T59 NUT,COOLING FAN

Part Number Qty. Specifications Price
B59515T59 1
€ 2,79

» 90786 SCREW & WASHER,TAPPING

Part Number Qty. Specifications Price
907860616 1
€ 2,41

» 90857 STUD

Part Number Qty. Specifications Price
998510822A 1
€ 1,44

» 90901 NUT

Part Number Qty. Specifications Price
999461000 1
€ 3,28

» 90901 NUT

Part Number Qty. Specifications Price
9WAC00803 1
€ 0,93

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400603 1
€ 2,05

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400801 1
€ 1,64

» 99220 PIN

Part Number Qty. Specifications Price
992330516 1
€ 0,91

» 99281 CLAMP,HOSE

Part Number Qty. Specifications Price
9WNCB3400 1
€ 4,02

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940612 1
€ 0,87

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940825 1
€ 1,57

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960616 1
€ 0,81

Part Number	Qty.	Specifications	Price
B61P15106	1	AN (B61P-15-106A)	€ 2,62

Cooling System(1800cc)
