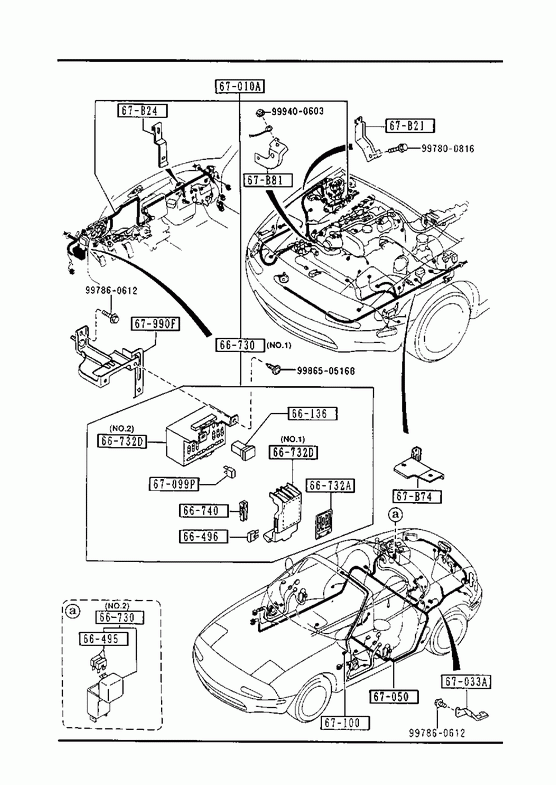

Front & Rear Wiring Harnesses

01/02
02/02

FUSE (30A)

Part Number	Qty.	Specifications	Price
T00167S93	1	950901 - NA18*300001- NA182207238-	€ 2,38

» 66495

FUSE (10A)

Part Number	Qty.	Specifications	Price
997051110	2		€ 1,13

» 66496

FUSE (15A)

Part Number	Qty.	Specifications	Price
997051115	1	- 950901 NA18** -300001 NA18*2 -207238	€ 1,15

» 66730

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
N00866730	1	ILLUST. NO.2	€ 15,48
NA1266730A	1	ILLUST. NO.1 - 950901 NA18** -300001 NA18*2 -207238	€ 126,70
NB4566730A	1	ILLUST. NO.1 950901 - NA18*300001- NA182207238-	€ 103,39

» 66732A

BRACKET(L),FUSE BLOK

Part Number	Qty.	Specifications	Price
NA1266732A	1	- 950901 NA18** -300001 NA18*2 -207238	€ 7,77
NB4566732	1	950901 - NA18*300001- NA182207238-

» 66732D

COVER,FUSE BLOCK

Part Number	Qty.	Specifications	Price
NA0166731A	1	FURUKAWA ILLUST. NO.1	€ 9,37
NB1166731	1	ILLUST. NO.2 950901 - NA18*300001- NA182207238-

» 66740

HOLDER,FUSE

Part Number	Qty.	Specifications	Price
H00166739	1	- 950901 NA18** -300001 NA18*2 -207238	€ 11,10

» 67010A

HARNESS,FRONT

Part Number	Qty.	Specifications	Price
NB1767010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) - 950201 *NA182 -202204**
NB1767010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB1867010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) - 950201 *NA182 -202204**
NB1867010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB1967010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) - 950201 *NA182 -202204**
NB1967010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB2067010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) - 950201 *NA182 -202204**
NB2067010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB3567010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238
NB3667010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238	€ 1455,22
NB4567010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 950901 - 960603 NA18*300001-308212 NA182207238-
NB4667010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 950901 - 960603 NA18*300001-308212 NA182207238-
NB4767010C	1	A (NB47-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 950901 - 951101 NA18*300001-301371 NA182207238-
NB4767010D	1	A (NB47-67-010E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 951101 - 960201 NA18301371-303862**
NB4767010E	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960201 - 960603 NA18303862-308212**
NB4867010C	1	A (NB48-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 950901 - 951101 NA18*300001-301371 NA182207238-
NB4867010D	1	A (NB48-67-010E) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 951101 - 960201 NA18301371-303862**
NB4867010E	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960201 - 960603 NA18303862-308212**
NB4967010B	1	A (NB49-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 950901 - 951101 NA18*300001-301371 NA182207238-
NB4967010C	1	A (NB49-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 951101 - 960201 NA18301371-303862**
NB4967010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960201 - 960603 NA18303862-308212**
NB5067010B	1	A (NB50-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 950901 - 951101 NA18*300001-301371 NA182207238-
NB5067010C	1	A (NB50-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 951101 - 960201 NA18301371-303862**
NB5067010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960201 - 960603 NA18303862-308212**
NB5867010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238
NB5967010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238	€ 1793,15
NB6667010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 950901 - 960603 NA18*300001-308212 NA182207238-
NB6767010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 950901 - 960603 NA18*300001-308212 NA182207238-
NB6867010B	1	A (NB68-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 950901 - 951101 NA18*300001-301371 NA182207238-
NB6867010C	1	A (NB68-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 951101 - 960201 NA18301371-303862**
NB6867010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960201 - 960603 NA18303862-308212**
NB6967010B	1	A (NB69-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 950901 - 951101 NA18*300001-301371 NA182207238-
NB6967010C	1	A (NB69-67-010D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 951101 - 960201 NA18301371-303862**
NB6967010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960201 - 960603 NA18303862-308212**
NB7067010	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) - 950201 *NA182 -202204**
NB7067010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB7167010	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) - 950201 *NA182 -202204**
NB7167010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB7267010	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238
NB7367010	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238
NB7467010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 950901 - 960603 NA18*300001-308212 NA182207238-
NB7567010B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 950901 - 960603 NA18*300001-308212 NA182207238-	€ 1775,41
NB8567010B	1	A (NB85-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB8567010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB8567010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 970120 - NA18313270-**
NB8667010B	1	A (NB86-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB8667010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB8667010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 970120 - NA18313270-**
NB8767010B	1	A (NB87-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB8767010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB8767010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 970120 - NA18313270-**
NB8867010B	1	A (NB88-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB8867010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB8867010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 970120 - NA18313270-**
NB8967010B	1	A (NB89-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB8967010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960801 - 970401 NA18309409-316195**
NB8967010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 970401 - NA18316195-**
NB9067010B	1	A (NB90-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB9067010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB9067010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 970120 - NA18313270-**
NB9167010B	1	A (NB91-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB9167010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB9167010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/O A. LOCK BRAKE) 970120 - NA18313270-**
NB9267010B	1	A (NB92-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB9267010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB9267010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1800>W/A. LOCK BRAKE) 970120 - NA18313270-**
NB9367010B	1	A (NB93-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB9367010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB9367010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 970120 - NA18313270-**
NB9467010B	1	A (NB94-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB9467010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB9467010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 970120 - NA18313270-**
NB9567010B	1	A (NB95-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB9567010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB9567010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/O A. LOCK BRAKE) 970120 - NA18313270-**
NB9667010B	1	A (NB96-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 960603 - 960801 NA18308212-309409**
NB9667010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 960801 - 970120 NA18309409-313270**
NB9667010D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (1600>W/A. LOCK BRAKE) 970120 - NA18313270-**

» 67033A

BRACKET,WIRING

Part Number	Qty.	Specifications	Price
N00767B10A	1		€ 3,84

» 67050

HARNESS,REAR

Part Number	Qty.	Specifications	Price
NB1767050A	1	A (NB17-67-050B) (1800>W/O A. LOCK BRAKE) - 941207 *NA182 -200075**
NB1767050B	1	(1800>W/O A. LOCK BRAKE) 941207 - 950201 *NA182200075-202204**
NB1767050C	1	(1800>W/O A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB1867050B	1	A (NB18-67-050C) (1800>W/A. LOCK BRAKE) - 941207 *NA182 -200075**	€ 267,17
NB1867050C	1	(1800>W/A. LOCK BRAKE) 941207 - 950201 *NA182200075-202204**
NB1867050D	1	(1800>W/A. LOCK BRAKE) 950201 - 950901 NA18** -300001 NA18*2202204-207238
NB3567050A	1	(1600>W/O A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238
NB4567050B	1	(1600>W/O A. LOCK BRAKE) W/O HIGH MOUNT STOP LAMP 950901 - 970106 NA18*300001-312661 NA182207238-	€ 300,98
NB4567050C	1	W/O HIGH MOUNT STOP LAMP (1600>W/O A. LOCK BRAKE) 970106 - NA18312661-**
NB4667050B	1	(1600>W/A. LOCK BRAKE) W/O HIGH MOUNT STOP LAMP 950901 - 970106 NA18*300001-312661 NA182207238-
NB4667050C	1	W/O HIGH MOUNT STOP LAMP (1600>W/A. LOCK BRAKE) 970106 - NA18312661-**
NB4767050B	1	(1800>W/O A. LOCK BRAKE) W/O HIGH MOUNT STOP LAMP 950901 - 970106 NA18*300001-312661 NA182207238-
NB4767050C	1	W/O HIGH MOUNT STOP LAMP (1800>W/O A. LOCK BRAKE) 970106 - NA18312661-**
NB4867050B	1	(1800>W/A. LOCK BRAKE) W/O HIGH MOUNT STOP LAMP 950901 - 970106 NA18*300001-312661 NA182207238-
NB4867050C	1	W/O HIGH MOUNT STOP LAMP (1800>W/A. LOCK BRAKE) 970106 - NA18312661-**
NB5867050A	1	(1600>W/A. LOCK BRAKE) - 950901 NA18** -300001 NA18*2 -207238
NB7567050	1	W/HIGH MOUNT STOP LAMP (1600>W/O A. LOCK BRAKE) 961201 - 970106 NA18311820-312661**
NB7567050A	1	W/HIGH MOUNT STOP LAMP (1600>W/O A. LOCK BRAKE) 970106 - NA18312661-**
NB7667050	1	W/HIGH MOUNT STOP LAMP (1600>W/A. LOCK BRAKE) 961201 - 970106 NA18311820-312661**
NB7667050A	1	W/HIGH MOUNT STOP LAMP (1600>W/A. LOCK BRAKE) 970106 - NA18312661-**
NB7767050	1	W/HIGH MOUNT STOP LAMP (1800>W/O A. LOCK BRAKE) 961201 - 970106 NA18311820-312661**
NB7767050A	1	W/HIGH MOUNT STOP LAMP (1800>W/O A. LOCK BRAKE) 970106 - NA18312661-**
NB7867050	1	W/HIGH MOUNT STOP LAMP (1800>W/A. LOCK BRAKE) 960701 - 961201 NA18308512-311820**
NB7867050A	1	W/HIGH MOUNT STOP LAMP (1800>W/A. LOCK BRAKE) 961201 - 961202 NA18311820-311820**
NB7867050B	1	W/HIGH MOUNT STOP LAMP (1800>W/A. LOCK BRAKE) 961202 - NA18311820-**

» 67099P

FUSE

Part Number	Qty.	Specifications	Price
997051210	6	10A 950901 - NA18*300001- NA182207238-	€ 1,13
997051215	2	15A 950901 - NA18*300001- NA182207238-	€ 1,13
997051220	2	20A 950901 - NA18*300001- NA182207238-	€ 1,13
997051230	1	30A 950901 - NA18*300001- NA182207238-	€ 1,13

» 67100

HARNESS,ROOM LAMP

Part Number	Qty.	Specifications	Price
NB3867100D	1	A (NB38-67-100E) 950901 - 960201 NA18*300001-303862 NA182207238-
NB3867100E	1	A (NB38-67-100F) 960201 - 960701 NA18303862-308512**
NB3867100G	1	960701 - NA18308512-**

» 67990F

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
NA0167BJ0	1	AN (NA01-67-BJ0A) - 950801 *NA182 -207088**	€ 8,10
NA0167BJ0A	1	950801 - *NA182207088-**

» 67B21

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
NB7567B11	1	AN (NB75-67-B11A) 960603 - 960901 NA18308212-309869**
NB7567B11A	1	960901 - NA18309869-**

» 67B24

BRACKET

Part Number	Qty.	Specifications	Price
NA7567B11A	1	W/AIR BAG	€ 13,36

» 67B74

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
N01867BW0	1	- 970421 NA18 -317387**	€ 10,78

» 67B81

BRACKET,HARNESS-ENGINE

Part Number	Qty.	Specifications	Price
NA7567B81	1	1800	€ 4,07

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516B	1		€ 0,52

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997800816	1		€ 2,11
