Mazda MX-3 EC 1993-11 Mazda Floor Attachments

Mazda parts catalog

Parts > Mazda MX-3 > 1993-11 > Body Exterior Trim > Floor Attachments

Search by part number:

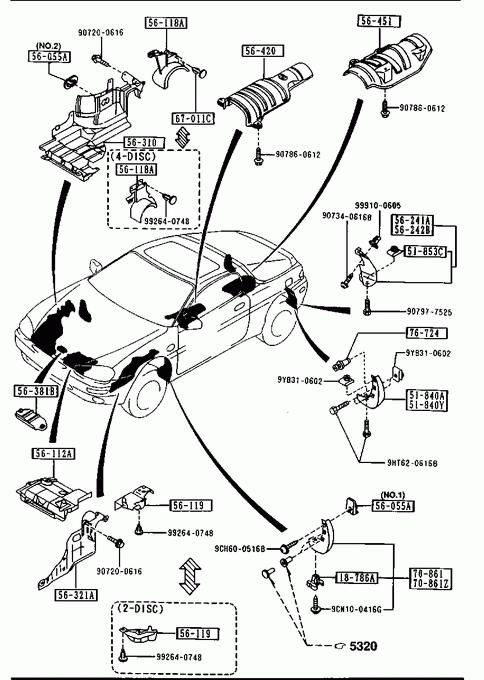

Floor Attachments

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
S21018786	2		€ 1,25

» 51840A

FLAP(R),REAR

Part Number	Qty.	Specifications	Price
E01651871B	1

» 51840Y

FLAP(L),REAR

Part Number	Qty.	Specifications	Price
E01651881B	1

» 51853C

NUT,CLIP

Part Number	Qty.	Specifications	Price
B09251861	2		€ 2,83

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
B09251832	2	ILLUST. NO.1	€ 1,37
S08356055	1	ILLUST. NO.2	€ 2,04

» 56112A

COVER(L),UNDER-ENG.&T/M

Part Number	Qty.	Specifications	Price
EA0156121A	1		€ 20,71

» 56118A

SHIELD(R),SPLASH

Part Number	Qty.	Specifications	Price
BC1D56114	1	2-DISC	€ 6,52
EA0756114A	1	4-DISC	€ 6,29

» 56119

SHIELD(L),SPLASH

Part Number	Qty.	Specifications	Price
B45556115	1	2-DISC	€ 6,52
B60356115	1	4-DISC	€ 6,52

» 56241A

SHIELD(R),SPLASH-REAR

Part Number	Qty.	Specifications	Price
EA015624Z	1		€ 14,65

» 56242B

SHIELD(L),SPLASH-REAR

Part Number	Qty.	Specifications	Price
EA015624Y	1		€ 14,65

» 56310

SHIELD(R),SPLASH-FRONT

Part Number	Qty.	Specifications	Price
EA0156310A	1		€ 28,99

» 56321A

SHIELD(L),SPLASH-FRONT

Part Number	Qty.	Specifications	Price
B45556321B	1	1600	€ 30,12
E01856321	1	1800	€ 28,99

» 56381B

PLATE,SEAL

Part Number	Qty.	Specifications	Price
E04056615	1	W/O AIR BAG	€ 2,45

» 56420

INSULATOR,FRONT

Part Number	Qty.	Specifications	Price
B45556411	1	A (B455-56-411A) - 940601 EC1* -203933**	€ 25,91
B45556411A	1	A (B455-56-411B) 940601 - 960501 EC1203933-212114*	€ 25,91
B45556411B	1	960501 - EC1212114-*	€ 26,96

» 56451

INSULATOR

Part Number	Qty.	Specifications	Price
B45556451	1		€ 52,12

» 67011C

CLIP

Part Number	Qty.	Specifications	Price
GJ2128803	2	2-DISC - 950601 EC1* -208015**	€ 1,84

» 70861

FLAP(R),FRONT

Part Number	Qty.	Specifications	Price
E01651840A	1

» 70861Z

FLAP(L),FRONT

Part Number	Qty.	Specifications	Price
E01651850A	1	4-DISC

» 76724

RIVET

Part Number	Qty.	Specifications	Price
B09251833	2		€ 1,54

» 90720

SCREW

Part Number	Qty.	Specifications	Price
907340616B	1		€ 0,69

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CH600516B	1		€ 1,90

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CN100416G	1		€ 1,37

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9HT620616B	1		€ 0,91

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907977525	1		€ 1,39

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
9YB310602	1		€ 2,91

» 99263

RIVET

Part Number	Qty.	Specifications	Price
992640748	1		€ 1,60

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100605	1		€ 1,68
