Mazda MX-3 EC 1993-11 Mazda Transmission Case & Main Control System

Mazda parts catalog

Parts > Mazda MX-3 > 1993-11 > Gasoline-engine 4-cylinder Transmission > Transmission Case & Main Control System(automatic Transmission 4-speed)

Search by part number:

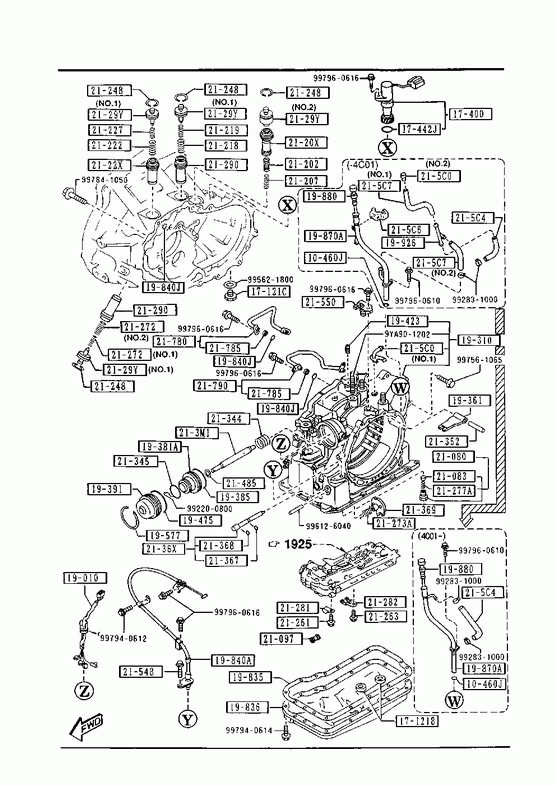

Transmission Case & Main Control System(automatic Transmission 4-speed)

RING,'O'

Part Number	Qty.	Specifications	Price
9954101201	1		€ 2,06

» 17121B

MAGNET

Part Number	Qty.	Specifications	Price
F40117121	2		€ 7,17

» 17121C

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
FU2B17121	1		€ 3,63

» 17400

GEAR SET,DRIVEN-SPEED

Part Number	Qty.	Specifications	Price
F53417400A	1		€ 199,03

» 17442J

RING,'O'

Part Number	Qty.	Specifications	Price
101117443	1		€ 3,00

» 19010

HARNNESS,SOLENOID

Part Number	Qty.	Specifications	Price
FU6319010D	1	AN (FU63-19-010E)	€ 53,56

» 19310

CASE,T/MISSION

Part Number	Qty.	Specifications	Price
FA0319420	1	A (FA03-19-420A) 971201 - EC1221699-*
FU6019420T	1	A (FU60-19-420V) - 931201 EC1* -200171**
FU6019420V	1	A (FU60-19-420W) 931201 - 971201 EC1200171-221699*	€ 333,52

» 19361

STRUT,BAND

Part Number	Qty.	Specifications	Price
FU6021351A	1		€ 3,50

» 19381A

PISTON,BAND SERVO

Part Number	Qty.	Specifications	Price
FU6321321A	1	- 980101 EC1* -223249**	€ 12,14

» 19385

SEAL,PISTON

Part Number	Qty.	Specifications	Price
FU6021341A	1		€ 3,58

» 19391

RETAINER,SERVO

Part Number	Qty.	Specifications	Price
FU6321331A	1		€ 11,22

» 19423

PLUG

Part Number	Qty.	Specifications	Price
FU6019423A	10		€ 1,16

» 19475

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU6021342A	1		€ 5,92

» 19577

RING,SNAP

Part Number	Qty.	Specifications	Price
FU6021322A	1		€ 1,50

» 19835

GASKET,OIL PAN

Part Number	Qty.	Specifications	Price
FU6021512B	1		€ 21,97

» 19836

PAN,OIL

Part Number	Qty.	Specifications	Price
FU6021511B	1	940914 - EC1205282-*	€ 9,98
FU602151XC	1	A (FU60-21-511B) - 940914 EC1* -205282**	€ 9,59

» 19840A

CABLE,THROTTLE-A/T

Part Number	Qty.	Specifications	Price
FU6P21600C	1	- 940201 EC1* -201574**	€ 28,60
FW3221600	1	C (FW32-21-600A) 940201 - 950301 EC1201574-207146*	€ 28,89
FW3221600A	1	950301 - EC1207146-*	€ 29,47

» 19840J

RING,'O'

Part Number	Qty.	Specifications	Price
9954100807	12		€ 2,14

» 19870A

TUBE,FILLER

Part Number	Qty.	Specifications	Price
FW1919870A	1	A (FW19-19-870B) - 941201 EC1* -206615**
FW1919870B	1	A (FW19-19-870C) 941201 - 960215 EC1206615-211178*
FW1919870D	1	960215 - EC1211178-*

» 19880

GAUGE,OIL LEVEL

Part Number	Qty.	Specifications	Price
FW1319880	1	A (FW13-19-880A) - 940712 EC1* -204227**	€ 12,03
FW1319880A	1	940712 - EC1204227-*	€ 12,03

» 19926

CONNECTOR

Part Number	Qty.	Specifications	Price
FW1219926	1	- 941201 EC1* -206615**	€ 4,91

» 21080

ORIFICE

Part Number	Qty.	Specifications	Price
FU6121080A	1		€ 21,75

» 21083

VALVE,ORIFICE

Part Number	Qty.	Specifications	Price
FU6121083B	1		€ 2,45

» 21097

PROTECTOR

Part Number	Qty.	Specifications	Price
FU0121097	1		€ 0,97

» 21202

SPRING,ACCUM N-R

Part Number	Qty.	Specifications	Price
FU60212S2B	1		€ 0,92

» 21207

SPRING,ACCUM FRONT

Part Number	Qty.	Specifications	Price
FU6021207F	1		€ 2,19

» 2120X

PISTON,ACCUM N-R

Part Number	Qty.	Specifications	Price
FU612120X	1		€ 16,16

» 21218

SPRING,ACCUM REAR

Part Number	Qty.	Specifications	Price
FU6921218	1		€ 2,40

» 21219

SPRING,ACCUM

Part Number	Qty.	Specifications	Price
FU6921219	1		€ 1,92

» 21222

SPRING,ACCUM 1-2

Part Number	Qty.	Specifications	Price
FU6921222A	1		€ 1,66

» 21227

SPRING,ACCUM 1/2

Part Number	Qty.	Specifications	Price
FU6921227A	1		€ 2,59

» 2122X

PISTON,ACCUM 1-2

Part Number	Qty.	Specifications	Price
FU602122X	1		€ 16,16

» 21248

RING,SNAP

Part Number	Qty.	Specifications	Price
FU6021248	4		€ 1,16

» 21261

BOLT

Part Number	Qty.	Specifications	Price
FU6121261	3		€ 0,27

» 21263

BOLT

Part Number	Qty.	Specifications	Price
FU6121263	6		€ 0,35

» 21272

SPRING,ACCUMULATOR

Part Number	Qty.	Specifications	Price
FW1521292	1	ILLUST. NO.2	€ 1,73
FW15212S3	1	PINK ILLUST. NO.1	€ 1,98

» 21273A

SPRING,RETURN

Part Number	Qty.	Specifications	Price
FU6121273C	1		€ 0,41

» 21277A

SPRING,ORIFICE CHECK

Part Number	Qty.	Specifications	Price
FU6121277D	1		€ 0,55

» 21281

CLIP

Part Number	Qty.	Specifications	Price
FU6021281C	1		€ 0,47

» 21282

CLIP

Part Number	Qty.	Specifications	Price
FU6121282B	1		€ 0,91

» 21290

PISTON,ACCUM. 2 & 3

Part Number	Qty.	Specifications	Price
FU602129X	2		€ 16,16

» 2129Y

STOPPER

Part Number	Qty.	Specifications	Price
FU602129Y	3	ILLUST. NO.1 - 931201 EC1* -200171**	€ 2,87
FU602129YA	3	ILLUST. NO.1 931201 - EC1200171-*	€ 5,39
FU612129Y	1	ILLUST. NO.2 - 931201 EC1* -200171**	€ 2,84
FU612129YB	1	ILLUST. NO.2 931201 - EC1200171-*	€ 2,90

» 21344

SPRING,RETURN-SERVO

Part Number	Qty.	Specifications	Price
FU0121344D	1		€ 1,30

» 21345

SEAL,PISTON

Part Number	Qty.	Specifications	Price
FU3121345A	1		€ 2,82

» 21352

SHAFT,BAND STRUT

Part Number	Qty.	Specifications	Price
FU6021352A	1		€ 1,41

» 21367

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU6121367	1		€ 2,99

» 21368

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU6121368	1		€ 2,99

» 21369

CAM,THROTTLE

Part Number	Qty.	Specifications	Price
FU6121369C	1		€ 3,90

» 2136X

PIN,ADJUSTER

Part Number	Qty.	Specifications	Price
FU612136XA	1		€ 5,12

» 213M1

STEM,PISTON

Part Number	Qty.	Specifications	Price
FU60213M1B	1	L=95.0MM - 980101 EC1* -223249**	€ 4,04
FU60213M2B	1	L=95.5MM - 980101 EC1* -223249**	€ 7,35
FU60213M3B	1	L=96.0MM - 980101 EC1* -223249**	€ 6,61
FU60213M4B	1	L=96.5MM - 980101 EC1* -223249**	€ 7,21
FU60213M5B	1	L=97.0MM - 980101 EC1* -223249**	€ 10,17
FU60213M6B	1	L=97.5MM - 980101 EC1* -223249**	€ 9,58
FU60213M7B	1	L=98.0MM - 980101 EC1* -223249**	€ 3,96
FU60213M8B	1	L=98.5MM - 980101 EC1* -223249**	€ 3,96
FU60213M9B	1	L=99.0MM - 980101 EC1* -223249**	€ 3,96

» 21485

WASHER

Part Number	Qty.	Specifications	Price
FU6021485A	1	- 980101 EC1* -223249**	€ 0,46

» 21548

BOLT,THROTTLE CABLE BRKT

Part Number	Qty.	Specifications	Price
FU0121548B	1	- 950301 EC1* -207146**	€ 0,94
FW0121548	1	950301 - EC1207146-*	€ 2,00

» 21550

GENERATOR,PULSE

Part Number	Qty.	Specifications	Price
FW0121550	1		€ 34,40

» 215C0

BREATHER

Part Number	Qty.	Specifications	Price
FU60215C0A	1	ILLUST. NO.1	€ 5,61
FW12215C0	1	ILLUST. NO.2 - 941201 EC1* -206615**	€ 6,21

» 215C4

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
FW05215C4	1	- 941201 EC1* -206615**	€ 3,60
FW47215C4	1	941201 - EC1206615-*

» 215C6

CLIP,HOSE

Part Number	Qty.	Specifications	Price
FW17215C5	1	- 941201 EC1* -206615**	€ 0,58

» 215C7

HOSE,BREATHER

Part Number	Qty.	Specifications	Price
FU2E215C7A	1	ILLUST. NO.1 - 941201 EC1* -206615**	€ 1,75
FW12215C7	1	ILLUST. NO.2 - 941201 EC1* -206615**	€ 2,17

» 21780

PIPE,GOVERNOR IN.

Part Number	Qty.	Specifications	Price
FU6021780A	1		€ 11,19

» 21785

SPACER

Part Number	Qty.	Specifications	Price
FU6021785	4		€ 0,52

» 21790

PIPE,GOVERNOR IN.

Part Number	Qty.	Specifications	Price
FU6021790B	1		€ 10,81

» 90857

STUD

Part Number	Qty.	Specifications	Price
9YA901202	1		€ 3,23

» 99220A

PIN,SNAP

Part Number	Qty.	Specifications	Price
992200800	1		€ 2,21

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621800	1		€ 0,19

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997561065	1

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940614	1		€ 1,13

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

Transmission Case & Main Control System(automatic Transmission 4-speed)
