- Parts > Mazda MX-3 > 1991-05 > Gasoline-engine V6-cylinder Supplement > Engine Electrical System(1800cc)
- Search by part number:
-

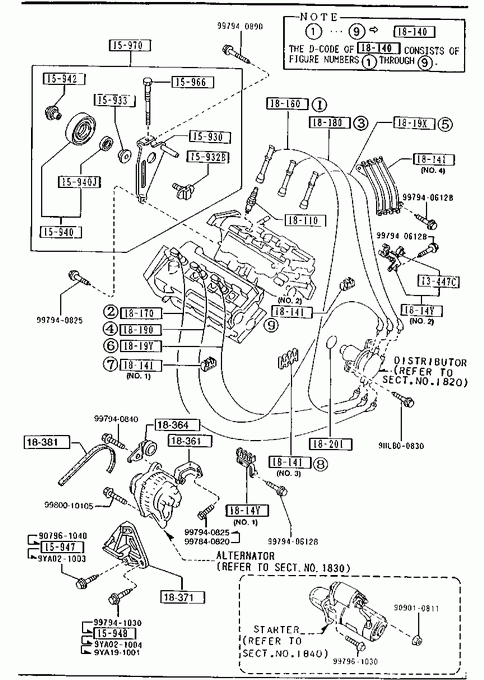

Engine Electrical System(1800cc)
-
» 13447C CLAMP,HOSE Part Number Qty. Specifications Price F21013447 1 € 1,93 » 15930 BRACKET,IDLE PULLEY Part Number Qty. Specifications Price KL0115950C 1 AN (KL01-15-950D)
- 911111
EC13** -107672€ 51,78 KL0115950D 1 911111 -
EC13**107672-€ 53,88 » 15932B SHAFT,ADJUST-C0MP.BRKT Part Number Qty. Specifications Price KL0115932 1 € 14,10 » 15933 COLLAR,COMP.BRKT Part Number Qty. Specifications Price K80515933 1 A (K805-15-933A) € 4,12 » 15940 PULLEY,IDLE Part Number Qty. Specifications Price K8051594YA 1 AN (K805-15-94YB) € 80,52 » 15940J BEARING Part Number Qty. Specifications Price 9960622030 1 € 16,06 » 15942 COLLAR,COMP.BRKT-PULLEY Part Number Qty. Specifications Price KL0115942 1 € 13,32 » 15947 BOLT,BRACKET-IDLE PULLEY Part Number Qty. Specifications Price K80515994 1 910601 - 910701
EC13**100039-101546» 15948 BOLT,BRACKET-IDLE PULLEY Part Number Qty. Specifications Price K80515995 2 910601 - 910701
EC13**100039-101546» 15966 BOLT,ADJUST Part Number Qty. Specifications Price K80515966A 1 € 12,64 » 15970 PULLEY,IDLE Part Number Qty. Specifications Price K80515930D 1 AN (K805-15-930E)
- 911111
EC13** -107672€ 211,31 K80515930E 1 911111 -
EC13**107672-€ 219,85 » 18110 PLUG,SPARK Part Number Qty. Specifications Price BP0118110 6 BKR5E-11 NGK
STD.€ 3,35 BP0218110 6 K16PR-U11 ND
STD.€ 3,35 BP0318110 6 BKR6E-11 NGK
OPTION COLD TYPE€ 3,35 BP0418110 6 K20PR-U11 ND
OPTION COLD TYPE€ 3,35 » 18140 CORD SET,HI.TENSION Part Number Qty. Specifications Price K80118140B 1 € 156,97 » 18141 SUPPORTER Part Number Qty. Specifications Price F8B118141 1 ILLUST. NO.1 € 2,88 JE2618141 2 ILLUST. NO.2 € 3,89 K80118141 1 ILLUST. NO.3 € 2,78 K80218141A 1 ILLUST. NO.4 € 5,90 » 1814Y SUPPORTER,HI.TENSION CORD Part Number Qty. Specifications Price K8011814Y 1 ILLUST. NO.1 € 7,79 K8021814YA 1 ILLUST. NO.2 € 14,44 » 18160 CORD NO.1,HI.TENSION Part Number Qty. Specifications Price K80118T51 1 € 28,04 » 18170 CORD NO.2,HI.TENSION Part Number Qty. Specifications Price K80118T52 1 € 25,66 » 18180 CORD NO.3,HI.TENSION Part Number Qty. Specifications Price K80118T53 1 € 25,66 » 18190 CORD NO.4,HI.TENSION Part Number Qty. Specifications Price K80118T54 1 € 25,66 » 1819X CORD NO.5,HIGH TENSION Part Number Qty. Specifications Price K80118T55 1 € 25,66 » 1819Y CORD NO.6,HIGH TENSION Part Number Qty. Specifications Price K80118T56 1 € 25,66 » 18201 RING,'O' Part Number Qty. Specifications Price F20118201 1 € 4,13 » 18361 STRAP,ALTERNATOR Part Number Qty. Specifications Price KL0118360 1 € 17,85 » 18364 DAMPER,DYNAMIC-ALTERNATOR Part Number Qty. Specifications Price K80118364 1 A (K801-18-364A)
- 910626
EC13** -101243K80118364A 1 910626 -
EC13**101243-€ 18,00 » 18371 BRACKET,ALTERNATOR Part Number Qty. Specifications Price KL0518371 1 A (KL05-18-371A)
- 920301
EC13** -113036KL0518371A 1 A (KL05-18-371B)
920301 - 920801
EC13**113036-119497KL0518371B 1 920801 -
EC13**119497-€ 71,85 » 18381 BELT'V' Part Number Qty. Specifications Price K80518381A 1 5PK-855
- 920326
EC13** -114622€ 14,00 K80518381B 1 5PK-855 BANDO
920326 -
EC13**114622-€ 14,00 » 90780 BOLT Part Number Qty. Specifications Price 9HLB00830 1 € 1,41 » 90780 BOLT Part Number Qty. Specifications Price 9YA021003 1 € 2,79 » 90780 BOLT Part Number Qty. Specifications Price 9YA021004 1 € 2,08 » 90780 BOLT Part Number Qty. Specifications Price 9YA191001 1 € 3,31 » 90794 BOLT & WASHER,FLANGE Part Number Qty. Specifications Price 907961040 1 € 2,31 » 90906 NUT,FLANGE Part Number Qty. Specifications Price 909010811 1 € 1,51 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997840820 1 € 2,22 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940612B 1 € 1,22 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940825 1 € 1,57 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940840 1 € 2,06 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997940890 1 € 2,62 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997941030 1 € 2,06 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 997961030 1 € 2,69 » 99756 BOLT,FLANGE Part Number Qty. Specifications Price 9980010105 1 € 2,78
