Mazda MPV LV 1989-06 Mazda Steering Gear

Mazda parts catalog

Parts > Mazda MPV > 1989-06 > Chassis Axle Suspension,brake & Steering > Steering Gear

Search by part number:

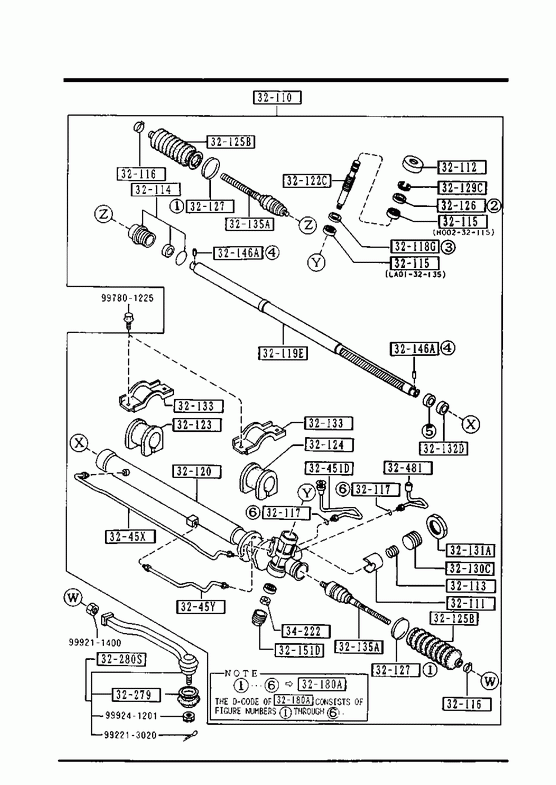

Steering Gear
» 32110 GEAR,STEERING

Part Number Qty. Specifications Price
LA0132110B 1 A (LA01-32-110C)
- 890920
LV10E1 -100033
LA0132110C 1 890920 -
LV10E1100033- € 1319,90

» 32111 YOKE,SUPPORT

Part Number Qty. Specifications Price
LA0132111 1

» 32112 COVER,DUST

Part Number Qty. Specifications Price
G03732112 1 891101 -
LV10E1100054- € 6,04
LA0132112 1 AN (G037-32-112)
- 891101
LV10E1 -100054

» 32113 SPRING,YOKE

Part Number Qty. Specifications Price
LA0132113 1

» 32114 BUSHING,RACK-ST GEAR

Part Number Qty. Specifications Price
LA0132160 1

» 32115 BEARING,ST. GEAR

Part Number Qty. Specifications Price
H00232115 1
€ 42,69
LA0132135 1
€ 8,68

» 32116 CLIP,SEAL

Part Number Qty. Specifications Price
GJ2232116 2
€ 1,93

» 32117 RING,'O'

Part Number Qty. Specifications Price
H00232117 2
€ 3,22

» 32118G SEAL,PINION

Part Number Qty. Specifications Price
LA0132118 1

» 32119E RACK,STEERING GEAR

Part Number Qty. Specifications Price
LA0132119 1

» 32120 HOUSING,GEAR

Part Number Qty. Specifications Price
LA0132120 1

» 32122C PINION,STEERING GEAR

Part Number Qty. Specifications Price
LA0132122 1 A (LA01-32-380)

» 32123 RUBBER,MOUNTING

Part Number Qty. Specifications Price
LA0132123 1
€ 12,67

» 32124 RUBBER,MOUNTING

Part Number Qty. Specifications Price
LA0132124 1
€ 14,14

» 32125B BOOT,RACK

Part Number Qty. Specifications Price
LA0132125 2
€ 48,48

» 32126 SEAL,SHAFT

Part Number Qty. Specifications Price
LA0132126 1
€ 8,49

» 32127 CLIP,WIRE

Part Number Qty. Specifications Price
H00232127 2 891101 -
LV10E1100054- € 2,82
LA0132127 2 AN (H002-32-127)
- 891101
LV10E1 -100054

» 32129C RING,SNAP

Part Number Qty. Specifications Price
H00232129 1
€ 3,26

» 32130C NUT,LOCK-STEERING GEAR

Part Number Qty. Specifications Price
GJ2232130 1
€ 8,85

» 32131A NUT,LOCK-RACK

Part Number Qty. Specifications Price
GJ2232131 1
€ 5,31

» 32132D INSERT,HOUSING

Part Number Qty. Specifications Price
LA0132132 1

» 32133 PLATE,CLAMP

Part Number Qty. Specifications Price
LA0132133 2
€ 11,90

» 32135A JOINT,RACK

Part Number Qty. Specifications Price
LA0132115 2
€ 94,91

» 32146A BOLT SET,CONNECTOR

Part Number Qty. Specifications Price
H00232146 2
€ 3,43

» 32151D COVER,HOUSING

Part Number Qty. Specifications Price
H00232151 1
€ 6,19

» 32180A SEAL KIT,ST. GEAR

Part Number Qty. Specifications Price
LA0132180 1
€ 50,13

» 32279 SEAL,DUST-BALL JOINT

Part Number Qty. Specifications Price
LA0132279 2
€ 7,10

» 32280S JOINT SET,BALL

Part Number Qty. Specifications Price
8AL132280 2
€ 43,53

» 32451D PIPE,PRESSURE

Part Number Qty. Specifications Price
LA0132451 1

» 3245X PIPE(R),RETURN-PRESSURE

Part Number Qty. Specifications Price
LA013245X 1
€ 39,34

» 3245Y PIPE(L),RETURN-PRESSURE

Part Number Qty. Specifications Price
LA013245Y 1

» 32481 PIPE,RETURN

Part Number Qty. Specifications Price
LA0132841 1

» 34222 NUT

Part Number Qty. Specifications Price
139139349 1
€ 2,97

» 90901 NUT

Part Number Qty. Specifications Price
999211400 1
€ 2,54

» 99133 NUT,CASTLE

Part Number Qty. Specifications Price
999241201 1
€ 3,23

» 99221 PIN,SPLIT

Part Number Qty. Specifications Price
992213020 1
€ 0,34

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997801225 1
€ 3,69
