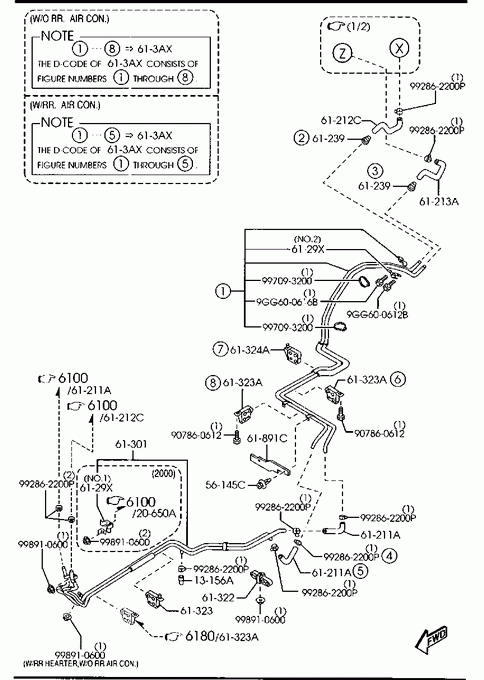

Rear Heater

01/02
02/02

CAP

Part Number	Qty.	Specifications	Price
055213156	1		€ 3,04

» 56145C

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
BC1D56145	2	W/O KARAKURI SEAT W/RR. HEATER - 030929 LW19 -300117**	€ 0,64

» 61211A

HOSE NO 1,WATER-REAR

Part Number	Qty.	Specifications	Price
LC7161311A	2		€ 13,42

» 61212C

HOSE NO 2,WATER-REAR

Part Number	Qty.	Specifications	Price
LC7161312	1		€ 13,07

» 61213A

HOSE NO 3,WATER-REAR

Part Number	Qty.	Specifications	Price
LC7161313	1		€ 11,81

» 61239

GROMMET,HEATER PIPE

Part Number	Qty.	Specifications	Price
LC7161239	2	W/RR. HEATER W/O KARAKURI SEAT - 030929 LW19 -300117**	€ 4,94
LD4761239	2	W/RR. HEATER 030929 - LW19300117-**	€ 5,14

» 6129X

BRACKET

Part Number	Qty.	Specifications	Price
LD476129XA	1	W/RR. HEATER,W/O RR. AIR CON. ILLUST. NO.2
LD636129XA	1	W/RR. HEATER,W/O RR. AIR CON. 2000 ILLUST. NO.1

» 61301

PIPE,WATER

Part Number	Qty.	Specifications	Price
LD48613AX	1	W/RR. HEATER,W/O RR. AIR CON. 2300 3000	€ 142,55
LD51613AX	1	W/RR. HEATER,W/RR. AIR CON. 2300 3000
LD63613AXA	1	W/RR. HEATER,W/O RR. AIR CON. 2000	€ 143,22
LD64613AXA	1	W/RR. HEATER,W/RR. AIR CON. 2000	€ 159,91

» 61322

CLIP

Part Number	Qty.	Specifications	Price
LC7461322	1		€ 4,64

» 61323

CLIP,HOSE

Part Number	Qty.	Specifications	Price
LC7461321	1		€ 5,06

» 61323A

CLIP

Part Number	Qty.	Specifications	Price
LC7461323	2	W/O RR. AIR CON	€ 5,62

» 61324A

CLIP

Part Number	Qty.	Specifications	Price
LC7461324A	1	W/O RR. AIR CON	€ 5,44

» 613AX

PIPE,WATER-RR

Part Number	Qty.	Specifications	Price
LD47613BYC	1	W/RR. HEATER,W/O RR. AIR CON. W/KARAKURI SEAT	€ 161,96
LD49613BYC	1	W/RR. HEATER,W/RR. AIR CON. W/KARAKURI SEAT (W/O KARAKURI SEAT>3000)
LD58613BYA	1	W/RR. HEATER,W/O RR. AIR CON. W/O KARAKURI SEAT	€ 163,92
LD64613BYA	1	W/RR. HEATER,W/RR. AIR CON. (W/O KARAKURI SEAT>2000) (W/O KARAKURI SEAT>2300)	€ 139,24

» 61891C

COVER'A',COOLER PIPE

Part Number	Qty.	Specifications	Price
LC9561891	1	W/O KARAKURI SEAT W/RR. HEATER - 030929 LW19 -300117**	€ 10,10

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90901

NUT

Part Number	Qty.	Specifications	Price
998910600	1		€ 1,79

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9GG600612B	1		€ 0,55

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9GG600616B	1		€ 0,81

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992862200P	1		€ 2,73

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093200	1		€ 2,33
