Parts > Mazda MPV > 1995-12 > Gasoline-engine V6-cylinder Transmission > Clutches & Planetary Gears

Search by part number:

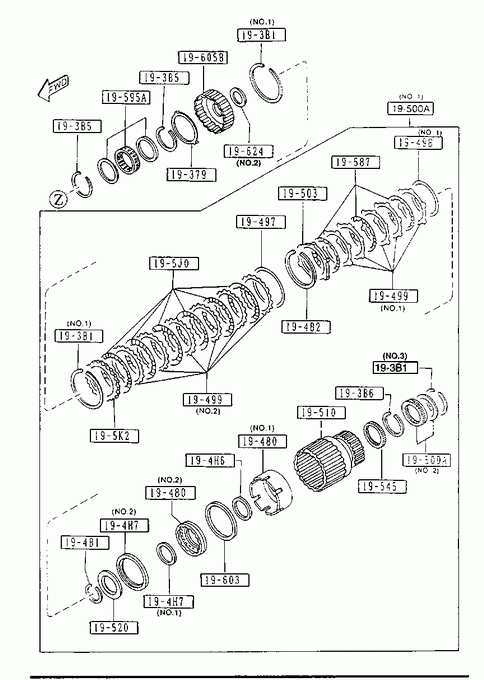

Clutches & Planetary Gears(automatic ; Electronic Control)

01/02
02/02

» 19379

WASHER,TRUST

Part Number	Qty.	Specifications	Price
BV1119379	2		€ 3,25

» 193B1

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B4	1	ILLUST. NO.3 - 980401 LV12J5 -101310
BV12193B1	2	ILLUST. NO.1
BV71193B1	1	ILLUST. NO.3 980401 - LV12J5101310-
BV80193B1	1	ILLUST. NO.2

» 193B5

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B5A	2		€ 4,32

» 193B6

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11193B6	1

» 19480

PISTON,CLUTCH

Part Number	Qty.	Specifications	Price
BV45193F0	1	ILLUST. NO.1
BV5619480	1	ILLUST. NO.2

» 19497

PLATE,DISHED

Part Number	Qty.	Specifications	Price
BV1119497	1

» 19498

PLATE,DISHED

Part Number	Qty.	Specifications	Price
BV1119498	1	ILLUST. NO.1	€ 12,12
BV7119544	1	ILLUST. NO.2

» 19499

PLATE,DRIVEN

Part Number	Qty.	Specifications	Price
BV1119499	5	ILLUST. NO.1	€ 10,01
BV5619499	6	ILLUST. NO.2	€ 6,59

» 194B1

RING,SNAP

Part Number	Qty.	Specifications	Price
BV30194B1	1		€ 2,10

» 194B2

RING,SNAP

Part Number	Qty.	Specifications	Price
BV11194B2	1

» 194H6

SEAL,LATHE CUT

Part Number	Qty.	Specifications	Price
BV11194H6	1		€ 6,05

» 194H7

SEAL,PISTON

Part Number	Qty.	Specifications	Price
BV30194H7	1	ILLUST. NO.2	€ 7,84
BV80194H7	1	ILLUST. NO.1	€ 6,92

» 19500A

CLUTCH & ONE WAY

Part Number	Qty.	Specifications	Price
BV1119651	1	ILLUST. NO.2 - 980401 LV12J5 -101310	€ 97,83
BV1219500	1	ILLUST. NO.1
BV7119651	1	ILLUST. NO.2 980401 - LV12J5101310-

» 19503

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
BV1119503	1	T=4.0MM
BV1119504	1	T=4.2MM
BV1119505	1	T=4.4MM
BV1119506	1	T=4.6MM	€ 44,67
BV1119507	1	T=4.8MM
BV1119508	1	T=5.0MM
BV11195K9	1	T=5.2MM

» 19510

CLUTCH,REAR

Part Number	Qty.	Specifications	Price
BV1119510A	1

» 19520

RETAINER,SPRING-CLU.ONE W

Part Number	Qty.	Specifications	Price
BV1119520	1

» 19545

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
BV5619545	1

» 19587

PLATE

Part Number	Qty.	Specifications	Price
BV1119587	3		€ 23,36

» 19595A

CLUTCH,ONE WAY

Part Number	Qty.	Specifications	Price
BV1119595	1		€ 156,57

» 195J0

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
BV56195J0	6		€ 15,45

» 195K2

PLATE,RETAINING

Part Number	Qty.	Specifications	Price
BV35195K2	1	T=8.0MM
BV35195K3	1	T=8.2MM
BV35195K4	1	T=8.4MM	€ 34,75
BV35195K5	1	T=8.6MM
BV35195K6	1	T=8.8MM
BV35195K7	1	T=9.0MM
BV35195K8	1	T=9.2MM

» 19603

SEAL,PISTON

Part Number	Qty.	Specifications	Price
BV1119603	1		€ 22,66

» 19605B

HUB

Part Number	Qty.	Specifications	Price
BV1119605	1

» 19624

BEARING,NEEDLE

Part Number	Qty.	Specifications	Price
BV3519305	1	AN (BV45-19-304) ILLUST. NO.1 - 971113 LV12J5 -101158	€ 10,01
BV4519304	1	ILLUST. NO.1 971113 - LV12J5101158-
BV5519304	1	ILLUST. NO.2	€ 11,94

Clutches & Planetary Gears(automatic ; Electronic Control)
