Mazda MPV LV 1995-12 Mazda Torque Converter,oil Pump & Pipings

Mazda parts catalog

Parts > Mazda MPV > 1995-12 > Gasoline-engine V6-cylinder Transmission > Torque Converter,oil Pump & Pipings(automatic ; Electronic Control)

Search by part number:

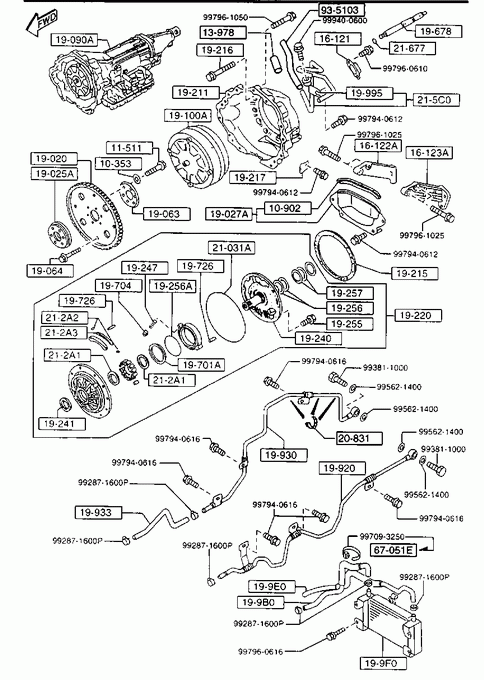

Torque Converter,oil Pump & Pipings(automatic ; Electronic Control)

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
029010353	6		€ 1,23

» 10902

GASKET,END PLATE

Part Number	Qty.	Specifications	Price
JF0110909	1	NON ASBESTOS	€ 4,34

» 11511

BOLT,LOCK-FLYWHEEL

Part Number	Qty.	Specifications	Price
JF0111511	6		€ 2,57

» 13978

PROTECTOR

Part Number	Qty.	Specifications	Price
RF0113862	1		€ 1,79

» 16121

COVER,UNDER CLUTCH HOUS.

Part Number	Qty.	Specifications	Price
BV0119050	1

» 16122A

PLATE(R),GUSSET

Part Number	Qty.	Specifications	Price
BV1119045	1		€ 30,55

» 16123A

PLATE(L),GUSSET

Part Number	Qty.	Specifications	Price
BV7219046	1

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
BV1119020	1		€ 106,17

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
BV0119025A	1

» 19027A

COVER,UNDER

Part Number	Qty.	Specifications	Price
BV1119060	1

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
BV0119063	1

» 19064

BOLT

Part Number	Qty.	Specifications	Price
364919064A	4		€ 1,19

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
BV7219090C	1	A (BV72-19-090D) - 960819 LV12J5 -100555
BV7219090D	1	A (BV72-19-090E) 960819 - 970201 LV12J5100555-100820
BV7219090G	1	970201 - 970401 LV12J5100820-100845
BV7219090H	1	A (BV72-19-090J) 970401 - 980908 LV12J5100845-101495
BV7219090J	1	980908 - LV12J5101495-

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
BV1119100C	1	- 970201 LV12J5 -100820	€ 1270,78
BV7219100A	1	970201 - LV12J5100820-

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
BV1119211A	1

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
BV1219221	1		€ 6,70

» 19216

BOLT

Part Number	Qty.	Specifications	Price
BT4019216	10

» 19217

COVER,BLIND

Part Number	Qty.	Specifications	Price
BT2019217	1

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
BV7219220	1	970201 - LV12J5100820-
BV8019220	1	- 970201 LV12J5 -100820	€ 677,69

» 19240

COVER,OIL PUMP

Part Number	Qty.	Specifications	Price
BV3619240	1	- 970201 LV12J5 -100820	€ 195,78
BV7219240	1	970201 - LV12J5100820-

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
BV3519241	1		€ 9,80

» 19247

SPRING

Part Number	Qty.	Specifications	Price
BV1119247	1

» 19255

BOLT

Part Number	Qty.	Specifications	Price
BV1119255	8

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
BV1119256	2		€ 6,86

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
BV1119242	1	970707 - LV12J5100845-	€ 1,76
BV3719242	1	- 970707 LV12J5 -100845

» 19257

RING,SEAL

Part Number	Qty.	Specifications	Price
BV1119257	2		€ 6,86

» 19678

SHAFT,INPUT

Part Number	Qty.	Specifications	Price
BV4521678	1

» 19701A

SEAL,RING

Part Number	Qty.	Specifications	Price
BV1119701	1		€ 6,31

» 19704

RETAINER

Part Number	Qty.	Specifications	Price
BV1119704	1

» 19726

PIVOT,ROLLER

Part Number	Qty.	Specifications	Price
BV1119726	2

» 19920

PIPE,OIL

Part Number	Qty.	Specifications	Price
BV7219920	1	AN (BV72-19-920A) - 960201 LV12J5 -100008
BV7219920A	1	A (BV72-19-920B) 960201 - 960501 LV12J5100008-100383
BV7419920A	1	A (BV74-19-920B) 960501 - 970601 LV12J5100383-100845
BV7419920B	1	A (BV74-19-920C) 970601 - 970901 LV12J5100845-100875
BV7419920C	1	970901 - LV12J5100875-

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
BV7219930A	1	A (BV72-19-930B) - 970601 LV12J5 -100845
BV7219930B	1	A (BV72-19-930C) 970601 - 970901 LV12J5100845-100875
BV7219930C	1	970901 - LV12J5100875-

» 19933

HOSE,OIL

Part Number	Qty.	Specifications	Price
BV7219933B	1		€ 18,42

» 19995

CLIP

Part Number	Qty.	Specifications	Price
BV0119995B	1

» 199B0

HOSE,OIL-OIL PUMP

Part Number	Qty.	Specifications	Price
BV73199B0	1	AN (BV73-19-9B0A) - 960201 LV12J5 -100008
BV73199B0A	1	960201 - 960501 LV12J5100008-100383
BV75199B0	1	960501 - LV12J5100383-

» 199E0

HOSE,OIL

Part Number	Qty.	Specifications	Price
BV73199E0	1	- 960501 LV12J5 -100383
BV75199E0A	1	960501 - LV12J5100383-

» 199F0

COOLER,OIL

Part Number	Qty.	Specifications	Price
BV11199F0B	1		€ 277,09

» 20831

BAND

Part Number	Qty.	Specifications	Price
BV7418868	3

» 21031A

RING,'O'

Part Number	Qty.	Specifications	Price
BV1121031	1

» 212A1

SPRING,RING

Part Number	Qty.	Specifications	Price
BV11212A1	2

» 212A2

SEAL,SIDE

Part Number	Qty.	Specifications	Price
BV11212A2	2

» 212A3

SEAL,FLANGE

Part Number	Qty.	Specifications	Price
BV11212A3	1

» 215C0

BREATHER

Part Number	Qty.	Specifications	Price
BV72215C0A	1

» 21677

RING,'O'

Part Number	Qty.	Specifications	Price
BV0121677	1		€ 2,17

» 67051E

CLIP

Part Number	Qty.	Specifications	Price
W02967051A	1	960501 - LV12J5100383-	€ 2,18

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 935103

HOSE

Part Number	Qty.	Specifications	Price
9935106820	1

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992871600P	1		€ 2,93

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993811000	1		€ 2,97

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621400	1		€ 3,08

» 99709

BAND

Part Number	Qty.	Specifications	Price
997093250	1		€ 2,76

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050	1		€ 3,15

Torque Converter,oil Pump & Pipings(automatic ; Electronic Control)
