Mazda MIATA NA 0- Mazda Oil Pan & Timing Cover

Mazda parts catalog

Parts > Mazda MIATA > 0- > Gasoline-engine & Transmission > Oil Pan & Timing Cover

Search by part number:

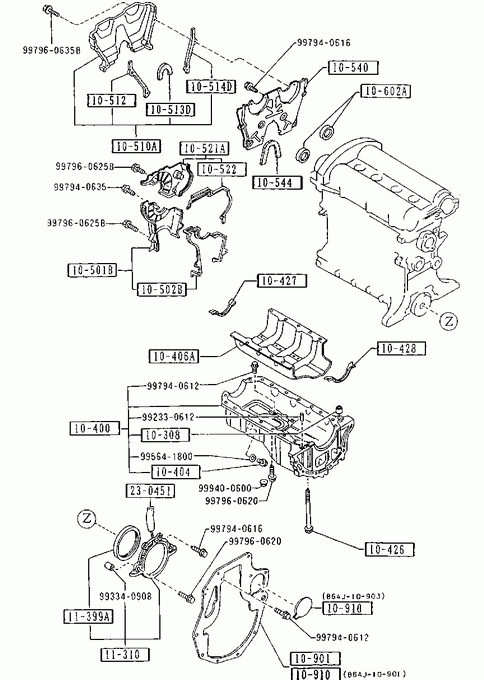

Oil Pan & Timing Cover
» 10308 PIN,TUBULAR

Part Number Qty. Specifications Price
B6F410308 1
€ 2,42

» 10400 PAN,OIL

Part Number Qty. Specifications Price
B6Y010400C 1 AN (B6Y0-10-400D)
€ 250,61

» 10404 PLUG,DRAIN

Part Number Qty. Specifications Price
B6S710404A 1
€ 2,74

» 10406A PLATE,OIL BAFFLE

Part Number Qty. Specifications Price
B61P1040YA 1
€ 52,67

» 10426 BOLT

Part Number Qty. Specifications Price
B6S710465 2
€ 2,35

» 10427 GASKET,OIL PAN

Part Number Qty. Specifications Price
B6F410427 1
€ 12,03

» 10428 GASKET,OIL PAN

Part Number Qty. Specifications Price
B6F410428 1
€ 12,03

» 10501B COVER,TIMING BELT-LWR

Part Number Qty. Specifications Price
B66010500E 1 A (B660-10-501E)
€ 39,71

» 10502B GASKET

Part Number Qty. Specifications Price
B66010502B 1 NON ASBESTOS
€ 16,81

» 10510A COVER(UP.),TIMING CHAIN

Part Number Qty. Specifications Price
B61P10510 1
€ 50,58

» 10512 GASKET(L)

Part Number Qty. Specifications Price
B61P10512 1 NON ASBESTOS
€ 8,55

» 10513D GASKET(INN),TIMING BELT(L)

Part Number Qty. Specifications Price
B61P10513 1 NON ASBESTOS
€ 5,82

» 10514D GASKET(C),TIMING BELT(L)

Part Number Qty. Specifications Price
B61P10514 1 NON ASBESTOS
€ 8,55

» 10521A COVER,TIMING BELT-C.

Part Number Qty. Specifications Price
B66010520B 1 A (B660-10-521B)
€ 33,80

» 10522 GASKET,T.BELT COVER-C.

Part Number Qty. Specifications Price
B66010522 1 NON ASBESTOS
€ 13,62

» 10540 PLATE,SEAL-T.BELT COVER U

Part Number Qty. Specifications Price
B61P10540B 1 AN (B61P-10-540C)
- 910701
NA35** -235561 € 22,83
B61P10540C 1 910701 -
NA35**235561- € 23,76

» 10544 RUBBER,SEAL-SEAL PLATE

Part Number Qty. Specifications Price
B61P10544 1
€ 6,10

» 10602A SEAL,OIL

Part Number Qty. Specifications Price
F28510602 2 901119 -
NA35**219322- € 8,37
F80110602 2 A (F285-10-602)
- 901119
NA35** -219322 € 8,37

» 10901 PLATE,END

Part Number Qty. Specifications Price
B61P10901A 1 A (B61P-10-901B)
MANUAL TRANSMISSION
€ 29,41

» 10910 COVER,END PLATE

Part Number Qty. Specifications Price
B64J10901 1 AUTOMATIC TRANSMISSION

B64J10903 1 AUTOMATIC TRANSMISSION

» 11310 COVER,REAR

Part Number Qty. Specifications Price
B36611310B 1 AN (B366-11-310C)
- 901126
NA35** -220046
B36611310C 1 RYOBI
901126 -
NA35**220046- € 98,83

» 11399A SEAL,OIL-CRANKSHAFT

Part Number Qty. Specifications Price
B63011312 1 A (BP05-11-312)
- 901126
NA35** -220046 € 20,46
BP0511312 1 901126 -
NA35**220046- € 24,47

» 230451 TUBE,SILICON

Part Number Qty. Specifications Price
852777739 1
€ 39,13

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400600 1
€ 1,24

» 99201 WASHER

Part Number Qty. Specifications Price
995641800 1
€ 1,18

» 99220 PIN

Part Number Qty. Specifications Price
992330612 1
€ 0,71

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940612 1
€ 0,87

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940616 1
€ 1,28

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997940635 1
€ 2,24

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960620 1
€ 1,18

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960625B 1
€ 0,43

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997960635B 1
€ 1,90

Part Number	Qty.	Specifications	Price
B6Y010400C	1	AN (B6Y0-10-400D)	€ 250,61

Part Number	Qty.	Specifications	Price
B61P10540B	1	AN (B61P-10-540C) - 910701 NA35 -235561**	€ 22,83
B61P10540C	1	910701 - NA35235561-**	€ 23,76

Part Number	Qty.	Specifications	Price
F28510602	2	901119 - NA35219322-**	€ 8,37
F80110602	2	A (F285-10-602) - 901119 NA35 -219322**	€ 8,37

Part Number	Qty.	Specifications	Price
B64J10901	1	AUTOMATIC TRANSMISSION
B64J10903	1	AUTOMATIC TRANSMISSION
