Mazda MIATA NA 0- Mazda Cooling System

Mazda parts catalog

Parts > Mazda MIATA > 0- > Gasoline-engine Supplement > Cooling System

Search by part number:

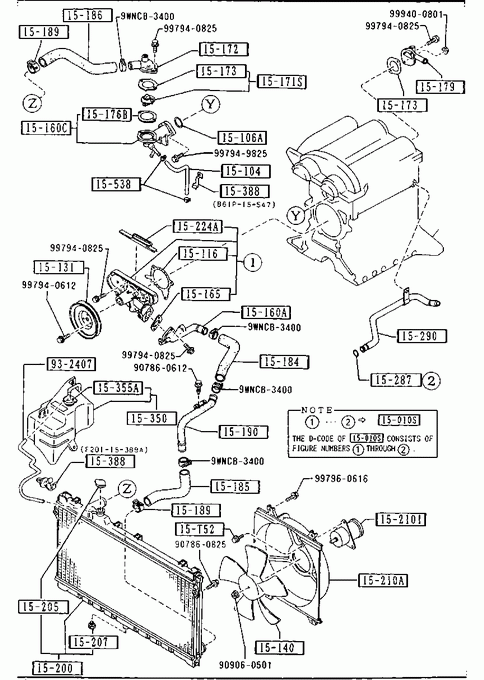

Cooling System

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AB815010	1	NON ASBESTOS	€ 91,60

» 15104

HOSE,WATER BY-PASS

Part Number	Qty.	Specifications	Price
B61P15261A	1		€ 7,88

» 15106A

RING,'O'-WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15106	1	AN (B61P-15-106A)	€ 2,62

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
B62115116A	1	NON ASBESTOS	€ 4,23

» 15131

PULLEY,WATER PUMP

Part Number	Qty.	Specifications	Price
B36615131	1	AN (B366-15-131A) - 890901 NA35 -119257**	€ 18,02
B36615131A	1	890901 - NA35119257-**	€ 18,75

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
B61P15140	1	MANUAL TRANSMISSION	€ 33,96
B6S815140A	1	CALSONIC AUTOMATIC TRANSMISSION

» 15160A

INLET,WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15160	1		€ 100,91

» 15160C

PIPE,WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15170A	1	A (B61P-15-170B) - 890401 NA35 -100090**
B61P15170B	1	890401 - NA35100090-**	€ 56,80

» 15165

GASKET,W.PUMP INLET

Part Number	Qty.	Specifications	Price
B62115165	1	NON ASBESTOS	€ 2,90

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AN115171	1	NON ASBESTOS	€ 20,96

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
B61P15172	1		€ 15,84

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
B62115173	2	NON ASBESTOS	€ 5,10

» 15176B

CASE,THERMOSTAT

Part Number	Qty.	Specifications	Price
B61P15176A	1	A (B61P-15-176B) - 890401 NA35 -100090**
B61P15176B	1	890401 - NA35100090-**	€ 47,63

» 15179

OUTLET,WATER PUMP

Part Number	Qty.	Specifications	Price
B61P15179	1	A (B61P-15-179A) - 890415 NA35 -100712**
B61P15179A	1	890415 - NA35100712-**	€ 18,63

» 15184

HOSE,WATER

Part Number	Qty.	Specifications	Price
B61P15184	1		€ 18,11

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
B61P15185	1		€ 13,87

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
B61P15186	1		€ 14,83

» 15189

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B36615182	2		€ 3,79

» 15190

PIPE,WATER

Part Number	Qty.	Specifications	Price
B61P15190	1		€ 32,99

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
B61P15200	1	CALSONIC MANUAL TRANSMISSION	€ 315,49
B64J15200A	1	CALSONIC AUTOMATIC TRANSMISSION	€ 694,39

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
D31615205	1	CALSONIC	€ 14,93

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
N32615203	1		€ 7,61

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
B61P15150A	1	A (BPE8-15-150) MANUAL TRANSMISSION	€ 201,51
B64J15150	1	AUTOMATIC TRANSMISSION

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
B61P15210A	1		€ 65,47

» 15224A

RUBBER,SEAL

Part Number	Qty.	Specifications	Price
B66010543B	1		€ 8,37

» 15287

RING,'O'-WATER BYPASS

Part Number	Qty.	Specifications	Price
E30115287	1		€ 1,97

» 15290

PIPE,BYPASS

Part Number	Qty.	Specifications	Price
B61P15290	1	AN (B61P-15-290A) - 891001 NA35 -122908**
B61P15290A	1	AN (B61P-15-290B) 891001 - 900301 NA35122908-141901**	€ 24,88
B61P15290B	1	900301 - NA35141901-**	€ 25,89

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
B61P15350A	1	A (B61P-15-350B) - 890419 NA35 -101038**
B61P15350B	1	AN (B61P-15-350C) 890419 - 890901 NA35101038-119257**
B61P15350C	1	A (B61P-15-350D) 890901 - NA35119257-**	€ 38,17

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
B61P15355	1	AN (B61P-15-355A) - 890901 NA35 -119257**
B61P15355A	1	890901 - NA35119257-**	€ 11,34

» 15388

CLIP,HOSE

Part Number	Qty.	Specifications	Price
B61P15547	1		€ 4,93
F20115388	1	A (F201-15-388A) - 890401 NA35 -100090**
F20115388A	1	890401 - NA35100090-**	€ 1,86

» 15538

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
JF0215538	2		€ 2,51

» 15T52

SCREW

Part Number	Qty.	Specifications	Price
B6S815T52	3		€ 1,26

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860825	1		€ 2,61

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909060501	1		€ 0,51

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 932407

HOSE,WATER

Part Number	Qty.	Specifications	Price
9932407610	1	890419 - NA35101038-**	€ 4,70
9932407630	1	- 890419 NA35 -101038**

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3400	1		€ 4,02

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940825	1		€ 1,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81
