Mazda MAZDA 5 CR 2007-09 Mazda Rear Combination Lamps 01/02 (COMBINATION LAMP BEZEL-STD) 02/02 (COMBINATION LAMP BEZEL-BLACK)

Mazda parts catalog

Parts > MAZDA 5 > 2007-09 > Body Electronics > Rear Combination Lamps

Search by part number:

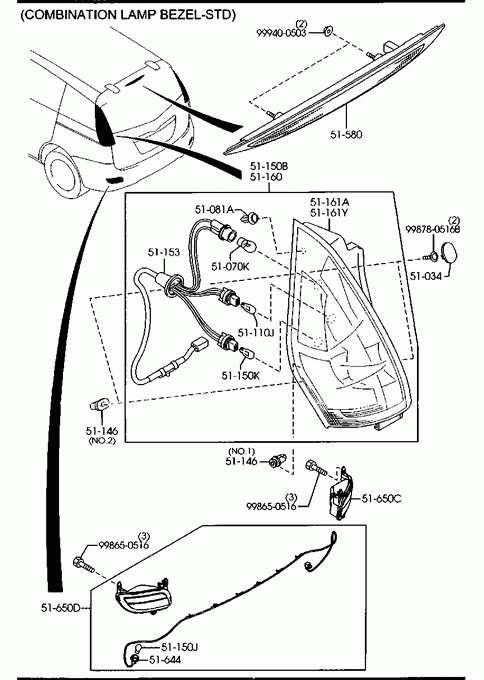

Rear Combination Lamps

01/02 (COMBINATION LAMP BEZEL-STD)
02/02 (COMBINATION LAMP BEZEL-BLACK)

CAP

Part Number	Qty.	Specifications	Price
C247510X8	4		€ 2,68

» 51070K

BULB

Part Number	Qty.	Specifications	Price
997007180	2	A12V 18.4W	€ 2,80

» 51081A

FASTENER

Part Number	Qty.	Specifications	Price
C23551081	2		€ 2,68

» 51110J

BULB

Part Number	Qty.	Specifications	Price
997006210Y	2	12V 21W	€ 6,66

» 51146

GROMMET,SCREW-R.COMB

Part Number	Qty.	Specifications	Price
B01W51142B	4	ILLUST. NO.2	€ 1,69
GJ6A5114Y	2	ILLUST. NO.1	€ 6,51

» 51150B

LAMP(R),RR COMB.

Part Number	Qty.	Specifications	Price
C29151150C	1	A (C291-51-150D) COMBINATION LAMP BEZEL-STD - 070911 CR19 -300096**
C29151150D	1	COMBINATION LAMP BEZEL-STD 070911 - CR19300096-**
C31751150C	1	COMBINATION LAMP BEZEL-BLACK

» 51150J

BULB

Part Number	Qty.	Specifications	Price
997013210	1	12V 21W	€ 0,54

» 51150K

BULB

Part Number	Qty.	Specifications	Price
997008215	2	12V 21/5W COMBINATION LAMP BEZEL-STD	€ 4,85

» 51153

SOCKET,RR.COMB.

Part Number	Qty.	Specifications	Price
C29151155	2	COMBINATION LAMP BEZEL-STD
C31751155	2	COMBINATION LAMP BEZEL-BLACK

» 51160

LAMP(L),RR COMB.

Part Number	Qty.	Specifications	Price
C29151160C	1	A (C291-51-160D) COMBINATION LAMP BEZEL-STD - 070911 CR19 -300096**
C29151160D	1	COMBINATION LAMP BEZEL-STD 070911 - CR19300096-**
C31751160C	1	COMBINATION LAMP BEZEL-BLACK

» 51161A

LENS & BODY(R),RR COMB.

Part Number	Qty.	Specifications	Price
C29151170C	1	A (C291-51-170D) COMBINATION LAMP BEZEL-STD - 070911 CR19 -300096**
C29151170D	1	COMBINATION LAMP BEZEL-STD 070911 - CR19300096-**
C31751170C	1	COMBINATION LAMP BEZEL-BLACK

» 51161Y

LENS & BODY(L),RR COMB.

Part Number	Qty.	Specifications	Price
C29151180C	1	A (C291-51-180D) COMBINATION LAMP BEZEL-STD - 070911 CR19 -300096**
C29151180D	1	COMBINATION LAMP BEZEL-STD 070911 - CR19300096-**
C31751180C	1	COMBINATION LAMP BEZEL-BLACK

» 51580

LAMP,STOP-HI.MOUNT.

Part Number	Qty.	Specifications	Price
C23551580C	1	A (C235-51-580D) - 071005	€ 88,74
C23551580D	1	071005 -

» 51644

SOCKET,REAR FOG LAMP

Part Number	Qty.	Specifications	Price
CD8551644	1

» 51650C

LAMP(R),RR FOG

Part Number	Qty.	Specifications	Price
CD8551650C	1

» 51650D

LAMP(L),RR FOG

Part Number	Qty.	Specifications	Price
CD8551660C	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400503	1		€ 0,73

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998650516	1		€ 0,51

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998780516B	1		€ 1,37
