Rear Combination Lamps 01/03 (-0901) 02/03 (0901-0A01) 03/03 (0A01-)

Rear Combination Lamps |

Mazda parts catalog

Parts > Mazda E2000 > 1999-08 > Body Electronics > Rear Combination Lamps

Search by part number:

Rear Combination Lamps(van)

01/03 (-0901)
02/03 (0901-0A01)

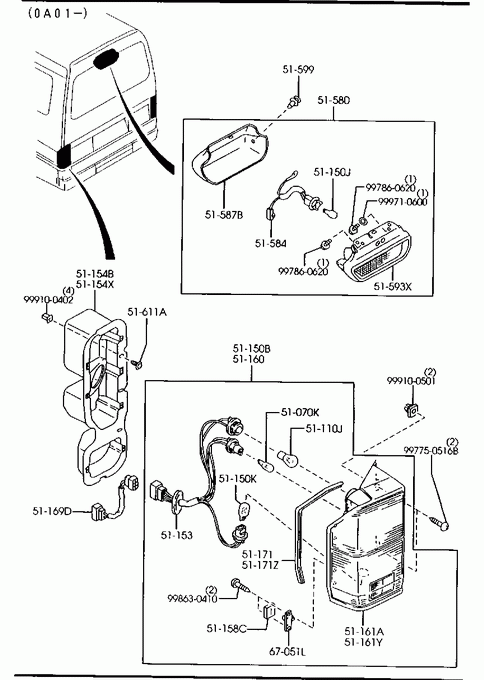

03/03 (0A01-)

BULB

Part Number	Qty.	Specifications	Price
997007180	2	A12V 18.4W	€ 2,80

» 51110J

BULB

Part Number	Qty.	Specifications	Price
997013210Y	2	12V 21W YELLOW	€ 1,63

» 51150B

LAMP(R),RR COMB.

Part Number	Qty.	Specifications	Price
S24B51150B	1	AN (S24B-51-150C) 000901 - 001001 SK104253-104644
S24B51150C	1	001001 - 011001 SK104644-108771
S41A51150	1	A (S41A-51-150A) 011001 - 051101 SK108771-119543
S41A51150A	1	051101 - SK119543-

» 51150J

BULB

Part Number	Qty.	Specifications	Price
997006210	1	12V 21W W/HI.MOUNT STOP LAMP-INTERIOR	€ 2,85

» 51150K

BULB

Part Number	Qty.	Specifications	Price
997008215	2	12V 21/5W	€ 4,85

» 51153

SOCKET,RR.COMB.

Part Number	Qty.	Specifications	Price
S24B51155A	2	- 011001 SK -108771
S41A51155	2	011001 - SK108771-

» 51154B

COVER(R),RR.COMB.

Part Number	Qty.	Specifications	Price
S08351210F	1

» 51154X

COVER(L),RR.COMB.

Part Number	Qty.	Specifications	Price
S08351220F	1

» 51158C

GASKET,SEAL

Part Number	Qty.	Specifications	Price
S08351158	4	- 000901 SK -104253	€ 3,95

» 51160

LAMP(L),RR COMB.

Part Number	Qty.	Specifications	Price
S24B51160B	1	AN (S24B-51-160C) 000901 - 001001 SK104253-104644
S24B51160C	1	001001 - 011001 SK104644-108771
S41A51160	1	A (S41A-51-160A) 011001 - 051101 SK108771-119543
S41A51160A	1	051101 - SK119543-

» 51161A

LENS & BODY(R),RR COMB.

Part Number	Qty.	Specifications	Price
S24B51170A	1	A (S24B-51-170B) - 051101 SK -119543
S24B51170B	1	051101 - SK119543-

» 51161Y

LENS & BODY(L),RR COMB.

Part Number	Qty.	Specifications	Price
S24B51180A	1	A (S24B-51-180B) - 051101 SK -119543
S24B51180B	1	051101 - SK119543-

» 51169D

CORD,RR. COMB.

Part Number	Qty.	Specifications	Price
S08351145A	1	FOR LEFT SIDE - 011001 SK -108771	€ 12,11
S24A51145A	1	FOR RIGHT SIDE - 011001 SK -108771	€ 23,35

» 51171

PROTECTOR(R),RR.COMB

Part Number	Qty.	Specifications	Price
S08351153	1		€ 11,31

» 51171Z

PROTECTOR(L),RR.COMB

Part Number	Qty.	Specifications	Price
S08351163	1		€ 11,31

» 51580

LAMP,STOP-HI.MOUNT.

Part Number	Qty.	Specifications	Price
S0N851580	1	W/HI.MOUNT STOP LAMP-INTERIOR 051101 - SK119543-
S41A51580B	1	W/HI.MOUNT STOP LAMP-INTERIOR - 051101 SK -119543

» 51584

SOCKET,STOP LAMP-HI.MOUNT

Part Number	Qty.	Specifications	Price
S14L51584	1	W/HI.MOUNT STOP LAMP-INTERIOR

» 51587B

COVER,STOP LAMP-HI. MOUNT

Part Number	Qty.	Specifications	Price
S38A51587	1	W/HI.MOUNT STOP LAMP-INTERIOR

» 51593X

UNIT,STOP LAMP-HI. MOUNT

Part Number	Qty.	Specifications	Price
S0N851593	1	W/HI.MOUNT STOP LAMP-INTERIOR 051101 - SK119543-

» 51599

FASTENER,STOP LAMP-HI.

Part Number	Qty.	Specifications	Price
HG3051599	2	W/HI.MOUNT STOP LAMP-INTERIOR

» 51611A

SCREW,HEAD LAMP BEZEL

Part Number	Qty.	Specifications	Price
FB0151611	8		€ 1,13

» 67051L

CLIP,RR. COMBI LAMP

Part Number	Qty.	Specifications	Price
S08351156	4	- 000901 SK -104253	€ 3,43

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997750516B	1		€ 0,70

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860620	1		€ 0,80

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
998630410	1		€ 0,26

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100402	1		€ 1,14

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100501	1		€ 1,33

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999710600	1		€ 0,24

Rear Combination Lamps(van)
