Injection Pump 01/02 (W/O HI ALTI.) 02/02 (W/HI ALTI.)

Injection Pump |

Mazda parts catalog

Parts > Mazda E2000 > 1988-02 > Diesel-engine Supplement > Injection Pump

Search by part number:

Injection Pump(diesel)

01/02 (W/O HI ALTI.)

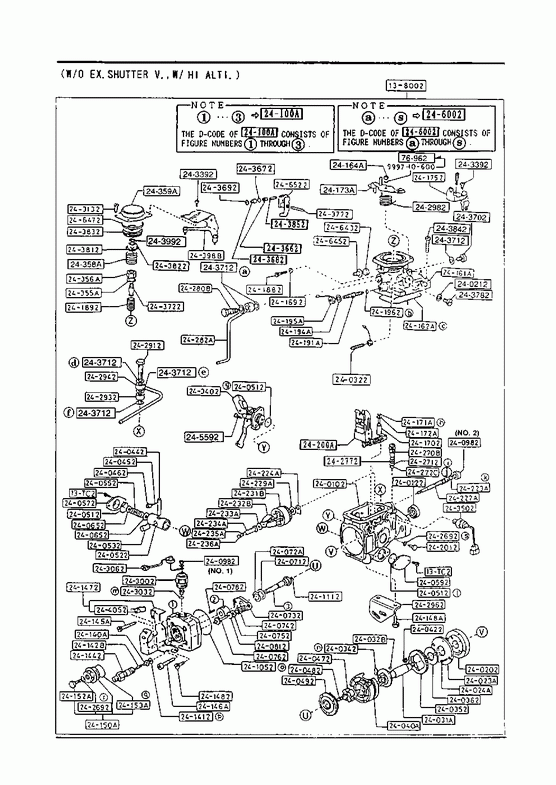

02/02 (W/HI ALTI.)

PUMP,INJECTION

Part Number	Qty.	Specifications	Price
R20113800D	1	A (R201-13-800E) W/O EX.SHUTTER V.,W/O HI ALTI. - 920529 SR -623492
R20113800E	1	W/O EX.SHUTTER V.,W/O HI ALTI. 920529 - SR623492-	€ 2308,25
R20213800D	1	A (R202-13-800E) W/EX.SHUTTER V.,W/O HI ALTI. - 920603 SR -623521
R20213800E	1	W/EX.SHUTTER V.,W/O HI ALTI. 920603 - SR623521-
R23413800B	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 13TC2

BOLT

Part Number	Qty.	Specifications	Price
SE0113TC2	4	W/O EX.SHUTTER V.,W/HI ALTI.

» 240102

HOUSING

Part Number	Qty.	Specifications	Price
R23424010	1	W/O EX.SHUTTER V.,W/HI ALTI.
RF0124010A	1	W/O EX.SHUTTER V.,W/O HI ALTI.
RF0224010	1	W/EX.SHUTTER V.,W/O HI ALTI.

» 240122

SEAL,OIL

Part Number	Qty.	Specifications	Price
RF0124012	1		€ 7,94

» 240202

PUMP,FEED

Part Number	Qty.	Specifications	Price
RF0124020	1		€ 219,38

» 240212

GASKET

Part Number	Qty.	Specifications	Price
063624021	2	W/O EX.SHUTTER V.,W/HI ALTI.

» 24023A

COVER

Part Number	Qty.	Specifications	Price
093324023	1		€ 55,00

» 24024A

SCREW

Part Number	Qty.	Specifications	Price
093324024	2

» 24031A

SHAFT,DRIVE

Part Number	Qty.	Specifications	Price
RF0124031	1		€ 151,43

» 240322

BOLT

Part Number	Qty.	Specifications	Price
093313VV4	1	W/O EX.SHUTTER V.,W/HI ALTI. - 890401 SR -609663

» 24032B

KEY

Part Number	Qty.	Specifications	Price
093324032	1

» 240342

DAMPER

Part Number	Qty.	Specifications	Price
093324034	2

» 240352

GEAR

Part Number	Qty.	Specifications	Price
093324035	1

» 240362

WASHER

Part Number	Qty.	Specifications	Price
093324036	1

» 24040A

ROLLER

Part Number	Qty.	Specifications	Price
RF0124040	1		€ 210,65

» 240422

KEY,WOODRUFF

Part Number	Qty.	Specifications	Price
R23013V29	1	AN (RF11-24-042) W/O EX.SHUTTER V.,W/HI ALTI.
RF1124042	1	W/O EX.SHUTTER V.,W/O HI ALTI. W/EX.SHUTTER V.,W/O HI ALTI.	€ 1,86

» 240442

Part Number	Qty.	Specifications	Price
093324044	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI. - 890401 SR -609663	€ 31,81
V10113TC6	1	W/O EX.SHUTTER V.,W/O HI ALTI.

» 240452

Part Number	Qty.	Specifications	Price
093324045	1		€ 2,50

» 240462

CLIP

Part Number	Qty.	Specifications	Price
093324046	1		€ 1,94

» 240472

DISC

Part Number	Qty.	Specifications	Price
093324047	1		€ 63,86

» 240482

SPRING

Part Number	Qty.	Specifications	Price
093324048	1

» 240492

CAM DISK

Part Number	Qty.	Specifications	Price
093324049	1		€ 133,12

» 240512

RING,'O'

Part Number	Qty.	Specifications	Price
093324051	3		€ 8,67

» 240522

PISTON

Part Number	Qty.	Specifications	Price
145624052	1	A (RF11-24-052A) W/O EX.SHUTTER V.,W/O HI ALTI.
RF1124052A	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.

» 240532

SLIDER

Part Number	Qty.	Specifications	Price
093324053	1		€ 19,91

» 240552

SPRING,TIMER

Part Number	Qty.	Specifications	Price
482524055	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI. - 890401 SR -609663
PN1113TA3	1	W/O EX.SHUTTER V.,W/HI ALTI. W/EX.SHUTTER V.,W/O HI ALTI. 890401 - SR609663-
R26413TA6	1	W/O EX.SHUTTER V.,W/O HI ALTI.
V10113TA3	1	K=2.25KG W/O EX.SHUTTER V.,W/O HI ALTI.

» 240572

COVER

Part Number	Qty.	Specifications	Price
RF0113TA4	1

» 240592

COVER

Part Number	Qty.	Specifications	Price
093324059	1

» 240652

SHIM

Part Number	Qty.	Specifications	Price
093324065	2	T=0.6MM	€ 1,22
093324066	1	T=0.7MM
093324067	1	T=0.9MM	€ 1,22
093324068	1	T=1.0MM	€ 1,22
093324069	1	T=1.2MM

» 240712

SHIM

Part Number	Qty.	Specifications	Price
093324071	1		€ 5,46

» 24072A

WASHER

Part Number	Qty.	Specifications	Price
093324072	1		€ 12,17

» 240732

SHEET,SPRING

Part Number	Qty.	Specifications	Price
093324073	1

» 240742

SPRING,PLUNGER

Part Number	Qty.	Specifications	Price
S21024074	1

» 240752

SHEET,SPRING

Part Number	Qty.	Specifications	Price
093324075	2

» 240762

PIN,GUIDE

Part Number	Qty.	Specifications	Price
093324076	2

» 240782

SPRING

Part Number	Qty.	Specifications	Price
093324078	2	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.
PN1113V24	2	W/O EX.SHUTTER V.,W/O HI ALTI.

» 240812

SHIM

Part Number	Qty.	Specifications	Price
093324081	2	T=0.5MM
093324082	2	T=0.8MM
093324083	2	L=1.0MM
093324084	2	T=1.2MM
093324085	2	T=1.5MM
093324086	2	T=1.8MM
093324087	2	T=2.0MM

» 240982

NUT

Part Number	Qty.	Specifications	Price
PN1113TJ4	1	EXC.COLD AREA ILLUST. NO.1
R28613VX9	1	ILLUST. NO.2 W/O EX.SHUTTER V.,W/HI ALTI. 900401 - SR614155-
RF0113VX7	1	ILLUST. NO.2 W/O EX.SHUTTER V.,W/HI ALTI. - 900401 SR -614155

» 24100A

HEAD,DISTRIBUTOR

Part Number	Qty.	Specifications	Price
R20124100	1		€ 646,21

» 241052

RING,'O'

Part Number	Qty.	Specifications	Price
093324105	1		€ 6,82

» 241112

SHIM

Part Number	Qty.	Specifications	Price
093324111	1	T=1.92MM
093324112	1	T=2.0MM
093324113	1	T=2.08MM
093324114	1	T=2.16MM
093324115	1	T=2.24MM
093324116	1	T=2.32MM
093324117	1	T=2.4MM
093324118	1	T=2.48MM
093324119	1	T=2.56MM
093324121	1	T=2.64MM
093324122	1	T=2.72MM
093324123	1	T=2.8MM
093324124	1	T=2.88MM

» 24140A

VALVE,DELIVERY

Part Number	Qty.	Specifications	Price
093324140	4		€ 89,82

» 241412

GASKET

Part Number	Qty.	Specifications	Price
093324141	4		€ 1,90

» 24142B

SPRING,D.V.

Part Number	Qty.	Specifications	Price
093324142	4		€ 5,17

» 241442

HOLDER,D.V.

Part Number	Qty.	Specifications	Price
091124144	4		€ 23,45

» 24145A

SCREW

Part Number	Qty.	Specifications	Price
093324145	3

» 24146A

BOLT,SOCKET HEAD

Part Number	Qty.	Specifications	Price
145624146	1		€ 2,45

» 241472

BRACKET

Part Number	Qty.	Specifications	Price
RF0124147A	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.

» 241482

SCREW

Part Number	Qty.	Specifications	Price
145624148	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.

» 24148A

BOLT

Part Number	Qty.	Specifications	Price
SE0124148	2		€ 2,66

» 24150A

PLUG

Part Number	Qty.	Specifications	Price
093324150	1		€ 29,73

» 24152A

BOLT

Part Number	Qty.	Specifications	Price
093324152	1		€ 6,29

» 24153A

RING,'O'

Part Number	Qty.	Specifications	Price
093324153	1		€ 4,25

» 24161A

COVER,GOVERNOR

Part Number	Qty.	Specifications	Price
R23424161A	1	W/O EX.SHUTTER V.,W/HI ALTI.
RF0124161A	1	W/O EX.SHUTTER V.,W/O HI ALTI. W/EX.SHUTTER V.,W/O HI ALTI.	€ 115,67

» 24162A

RING SEAL

Part Number	Qty.	Specifications	Price
093324162	1		€ 5,83

» 24164A

NUT

Part Number	Qty.	Specifications	Price
075024164	1

» 241692

NUT

Part Number	Qty.	Specifications	Price
R23424169	2		€ 3,23

» 241702

SHAFT,CONTROL

Part Number	Qty.	Specifications	Price
R20124170	1		€ 210,61

» 24171A

RING,'O'

Part Number	Qty.	Specifications	Price
093324171	1		€ 3,18

» 24172A

WASHER

Part Number	Qty.	Specifications	Price
093324172	1		€ 1,64

» 24173A

LEVER

Part Number	Qty.	Specifications	Price
R23413VR1	1	W/O EX.SHUTTER V.,W/HI ALTI. 900401 - SR614155-
R23424178A	1	W/O EX.SHUTTER V.,W/HI ALTI. - 900401 SR -614155
RF0124173A	1	A (RF01-24-173B) W/O EX.SHUTTER V.,W/O HI ALTI. W/EX.SHUTTER V.,W/O HI ALTI. - 920603 SR -623521	€ 66,79
RF0124173B	1	W/O EX.SHUTTER V.,W/O HI ALTI. W/EX.SHUTTER V.,W/O HI ALTI. 920603 - SR623521-	€ 66,79

» 241752

BRACKET

Part Number	Qty.	Specifications	Price
RF0124175	1

» 241882

BOLT

Part Number	Qty.	Specifications	Price
R23424188	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 24191A

SCREW,LOAD

Part Number	Qty.	Specifications	Price
093324191A	1	L=53MM	€ 13,04
093324192A	1	L=55MM
093324193A	1	L=57MM

» 24194A

WASHER

Part Number	Qty.	Specifications	Price
093324194	1		€ 1,84

» 24195A

NUT

Part Number	Qty.	Specifications	Price
093324195A	1

» 241962

RING,'O'

Part Number	Qty.	Specifications	Price
093324196	1		€ 1,89

» 24200A

LEVER,GOVERNOR

Part Number	Qty.	Specifications	Price
R20124200	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.

» 242012

BOLT,PIVOT

Part Number	Qty.	Specifications	Price
093324201	2	- 890401 SR -609663
RFB313VM5	2	890401 - SR609663-

» 24222A

SHAFT,GOVERNOR

Part Number	Qty.	Specifications	Price
RF0124222A	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.
S21024222	1	W/O EX.SHUTTER V.,W/O HI ALTI.	€ 85,21

» 24223A

RING,'O'

Part Number	Qty.	Specifications	Price
093324223	1		€ 1,84

» 24224A

SHIM

Part Number	Qty.	Specifications	Price
093324224	1	T=1.05MM
093324225	1	T=1.25MM
093324226	1	T=1.45MM
093324227	1	T=1.65MM
093324228	1	T=1.85MM

» 24229A

WASHER

Part Number	Qty.	Specifications	Price
093324229	1

» 24231B

HOLDER FLYWEIGHT

Part Number	Qty.	Specifications	Price
145624231	1

» 24232B

FLYWEIGHT

Part Number	Qty.	Specifications	Price
093324232	1

» 24233A

WASHER

Part Number	Qty.	Specifications	Price
093324233	1

» 24234A

SLEEVE,GOVERNOR

Part Number	Qty.	Specifications	Price
R20124234	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.
R26413VL6	1	W/O EX.SHUTTER V.,W/O HI ALTI.

» 24235A

CAP,LOCK

Part Number	Qty.	Specifications	Price
093324235	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.
PN1113VL7	1	W/O EX.SHUTTER V.,W/O HI ALTI.

» 24236A

PLUG,CLOSING

Part Number	Qty.	Specifications	Price
S21024236	1	L=8.6MM
S21024237	1	L=8.8MM
S21024238	1	L=9.0MM
S21024239	1	L=9.2MM
S21024241	1	L=9.4MM
S21024242	1	L=9.6MM
S21024243	1	L=9.8MM
S21024244	1	L=10.0MM

» 242692

GASKET,INJECTION

Part Number	Qty.	Specifications	Price
072724269	3		€ 2,74

» 24270B

VALVE,REGULATING

Part Number	Qty.	Specifications	Price
S21024270	1		€ 82,89

» 242712

RING,'O'

Part Number	Qty.	Specifications	Price
093324271	1		€ 2,02

» 24272C

RING,'O'

Part Number	Qty.	Specifications	Price
093324272	1	- 890401 SR -609663	€ 2,02

» 242772

PIN,SPRING

Part Number	Qty.	Specifications	Price
484624277	1	890401 - SR609663-	€ 6,66

» 24280B

VALVE,OVER FLOW

Part Number	Qty.	Specifications	Price
093324280	1		€ 29,54

» 24282A

EYE

Part Number	Qty.	Specifications	Price
R23424282	1	W/O EX.SHUTTER V.,W/HI ALTI.
RF0124282	1	W/O EX.SHUTTER V.,W/O HI ALTI. W/EX.SHUTTER V.,W/O HI ALTI.	€ 34,46

» 242912

BOLT,EYE

Part Number	Qty.	Specifications	Price
RF0124292	1	W/O EX.SHUTTER V.,W/O HI ALTI. W/EX.SHUTTER V.,W/O HI ALTI.	€ 16,00

» 242932

SPACER

Part Number	Qty.	Specifications	Price
RF0124293	1		€ 4,20

» 242942

EYE

Part Number	Qty.	Specifications	Price
RF0124294	1		€ 32,32

» 242982

SPRING

Part Number	Qty.	Specifications	Price
RF0124298	1	- 890401 SR -609663

» 243002

VALVE,MAGNET

Part Number	Qty.	Specifications	Price
093324300B	1		€ 172,18

» 243032

RING,'O'

Part Number	Qty.	Specifications	Price
093324303	1		€ 5,84

» 243062

WIRE

Part Number	Qty.	Specifications	Price
SE0124306	1

» 243132

SCREW

Part Number	Qty.	Specifications	Price
093524313	2	W/O EX.SHUTTER V.,W/HI ALTI.

» 243392

SCREW

Part Number	Qty.	Specifications	Price
SE0124339	3	W/EX.SHUTTER V.,W/O HI ALTI. - 890401 SR -609663

» 243402

COVER

Part Number	Qty.	Specifications	Price
RF0124340A	1	W/O EX.SHUTTER V.,W/HI ALTI.
RF0224340A	1	W/EX.SHUTTER V.,W/O HI ALTI.

» 243502

PICK UP

Part Number	Qty.	Specifications	Price
RF0224350	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.	€ 196,50

» 24355A

WASHER

Part Number	Qty.	Specifications	Price
R23424355	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 24356A

NUT

Part Number	Qty.	Specifications	Price
R23424356	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 24358A

SPRING

Part Number	Qty.	Specifications	Price
R23424358	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 24359A

COVER

Part Number	Qty.	Specifications	Price
R23424359	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243662

NUT

Part Number	Qty.	Specifications	Price
S21324366	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243672

RING,'O'

Part Number	Qty.	Specifications	Price
S21324367	1	W/O EX.SHUTTER V.,W/HI ALTI.	€ 2,84

» 243682

BUSH

Part Number	Qty.	Specifications	Price
S21324368	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243692

GASKET

Part Number	Qty.	Specifications	Price
S21324369	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243702

PLUG

Part Number	Qty.	Specifications	Price
S21324370	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243712

GASKET

Part Number	Qty.	Specifications	Price
S21324371	5	W/O EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.	€ 1,56

» 243722

PIN,ADJUSTING

Part Number	Qty.	Specifications	Price
S21324372	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243772

Part Number	Qty.	Specifications	Price
S21324377	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243782

PLUG

Part Number	Qty.	Specifications	Price
S21324378	2	W/O EX.SHUTTER V.,W/HI ALTI.

» 243812

SHEET,SPRING

Part Number	Qty.	Specifications	Price
S21324381	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243822

RING,SNAP

Part Number	Qty.	Specifications	Price
S21324382	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243832

BELLOWS

Part Number	Qty.	Specifications	Price
S21324383	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 243842

BOLT,SOCKET HEAD

Part Number	Qty.	Specifications	Price
S21324384	4	W/O EX.SHUTTER V.,W/HI ALTI.

» 24398B

BRACKET

Part Number	Qty.	Specifications	Price
R23424398	1	W/O EX.SHUTTER V.,W/HI ALTI. - 890401 SR -609663
R28613TN2	1	W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-

» 243992

SHIM

Part Number	Qty.	Specifications	Price
R23424649	1	W/O EX.SHUTTER V.,W/HI ALTI. - 890401 SR -609663
S21324399	1	T=0.2MM W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-
S21324400	1	T=0.3MM W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-
S21324401	1	T=0.5MM W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-
S21324402	1	T=0.7MM W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-
S21324403	1	T=1.0MM W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-
S21324404	1	T=1.5MM W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-

» 244052

PLATE

Part Number	Qty.	Specifications	Price
RF0124405	1	W/EX.SHUTTER V.,W/O HI ALTI. W/O EX.SHUTTER V.,W/HI ALTI.

» 245592

SCREW

Part Number	Qty.	Specifications	Price
RF1124559	2	W/O EX.SHUTTER V.,W/HI ALTI. 890401 - SR609663-	€ 6,98
SE0124339	1	W/O EX.SHUTTER V.,W/HI ALTI. - 890401 SR -609663

» 246002

REPAIR KIT,F.I.P.

Part Number	Qty.	Specifications	Price
S21024600	1		€ 89,57

» 246432

ELEMENT

Part Number	Qty.	Specifications	Price
R23424643	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 246452

PLUG

Part Number	Qty.	Specifications	Price
R23424645	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 246472

RING,'O'

Part Number	Qty.	Specifications	Price
R23424647	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 246522

LEVER

Part Number	Qty.	Specifications	Price
R23424652	1	W/O EX.SHUTTER V.,W/HI ALTI.

» 76962

WASHER,SPRING

Part Number	Qty.	Specifications	Price
836376962	1	W/O EX.SHUTTER V.,W/HI ALTI. 900401 - SR614155-

Injection Pump(diesel)
