Mazda E2000 SD,SR 1997-03 Mazda Front Differentials

Mazda parts catalog

Parts > Mazda E2000 > 1997-03 > Chassis Axle Suspension,brake & Steering > Front Differentials(4x4)

Search by part number:

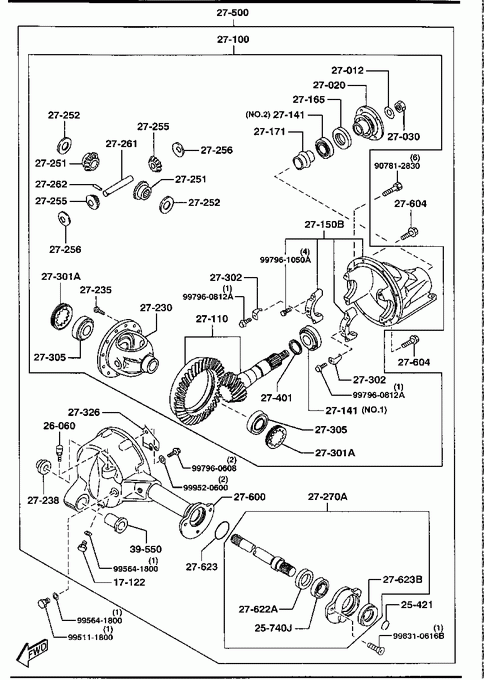

Front Differentials(4x4)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 25421

CLIP

Part Number	Qty.	Specifications	Price
G00325421	1		€ 1,23

» 25740J

BEARING,BALL

Part Number	Qty.	Specifications	Price
9960682064	1		€ 20,99

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
M05327120B	1		€ 35,57

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
M05627100C	1		€ 1127,19

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
M05727110	1	R=4.777	€ 448,49

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
022127210	1	ILLUST. NO.1	€ 35,41
075527210	1	ILLUST. NO.2	€ 42,29

» 27150B

CARRIER,DIFFERENTIAL-FRT

Part Number	Qty.	Specifications	Price
M05327150C	1		€ 228,19

» 27165

SEAL,OIL

Part Number	Qty.	Specifications	Price
M05327165	1		€ 11,94

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
030527171	1		€ 8,24

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
M05327231	1		€ 140,30

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
M0A727238A	1		€ 12,25

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
M05327251	2	AN (M053-27-251A)	€ 32,43

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
029027257	2		€ 3,86

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M02527255C	2	A (M025-27-255D) - 980420 SRC2 -801817 SR32 -805044	€ 27,87
M02527255D	2	AN (M025-27-255E) 980420 - SRC2801817- SR32805044-	€ 27,87

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M02527256	2	T=0.8MM	€ 3,36

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
M02527261A	1		€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27270A

SHAFT,OUTPUT

Part Number	Qty.	Specifications	Price
MA2127270	1	A (MA21-27-270A) - 990623 SRC2 -803248**	€ 212,06
MA2127270A	1	A (MA21-27-270B) 990623 - SRC2803248-**

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
029027301	2		€ 4,85

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
022127350	2		€ 40,08

» 27326

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
M05327326C	1		€ 2,04

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69
022327416	1	T=3.095MM	€ 6,71
022327417	1	T=3.125MM	€ 6,71
022327418	1	T=3.155MM	€ 6,71
022327419	1	T=3.185MM	€ 6,71
022327422	1	T=3.215MM	€ 6,71
022327423	1	T=3.245MM	€ 6,71
022327424	1	T=3.275MM	€ 6,71
022327425	1	T=3.305MM	€ 6,71
022327426	1	T=3.335MM	€ 6,71
022327427	1	T=3.365MM	€ 6,71
022327428	1	T=3.395MM	€ 6,71
022327433	1	T=3.425MM	€ 6,71
022327434	1	T=3.455MM	€ 6,58

» 27500

CASING,FRONT DIFF.

Part Number	Qty.	Specifications	Price
MA2127010A	1	AN (MA21-27-010B) - 990623 SRC2 -803248**
MA2127010B	1	AN (MA21-27-010C) 990623 - 990701 SRC2803248-803259**
MA2127010C	1	990701 - SRC2803259-**

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M05327600E	1	A (M053-27-600F)	€ 549,02

» 27604

BOLT

Part Number	Qty.	Specifications	Price
M05327605	2		€ 3,04

» 27622A

SEAL,OIL

Part Number	Qty.	Specifications	Price
M05327622	1	G (M053-27-622A)	€ 6,16

» 27623

RING,'O'-DIFF. CASING

Part Number	Qty.	Specifications	Price
M05327623	1		€ 3,18

» 27623B

SEAL,DUST-OUTPUT SHAFT

Part Number	Qty.	Specifications	Price
M07427623A	1		€ 5,76

» 39550

BUSH,DIFFERENTIAL CASING

Part Number	Qty.	Specifications	Price
S23139550	1	- 990701 SRC2 -803259**	€ 17,71
S47S39550	1	990701 - SRC2803259-**

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998310616B	1		€ 0,43

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99203

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
999520600	1		€ 0,51

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960608	1		€ 0,40

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961050A	1		€ 2,57

Front Differentials(4x4)
