Parts > Mazda E2000 > 1997-03 > Diesel-engine Supplement > Cooling System

Search by part number:

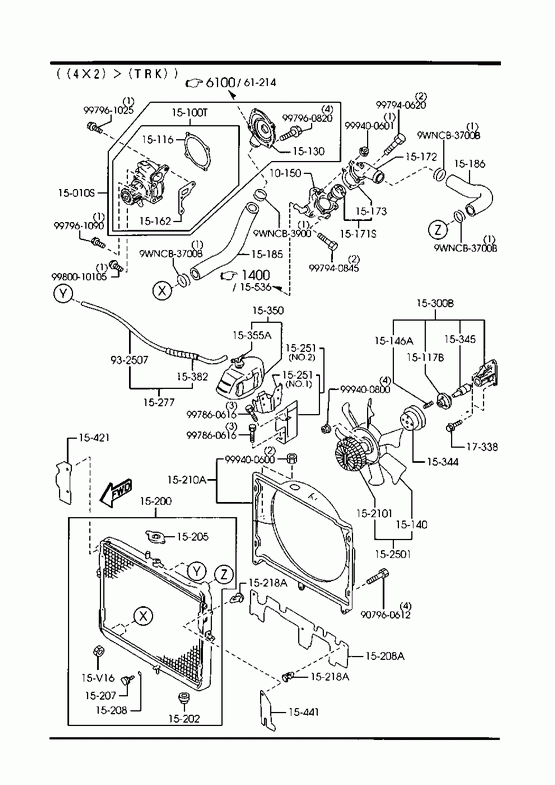

Cooling System(diesel)

01/03 ((4X2)>(VAN))
02/03 ((4X2)>(TRK))
03/03 (4X4)

CASING,THERMOSTAT

Part Number	Qty.	Specifications	Price
R2L110150	1		€ 82,57

» 15010S

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AG615010A	1	NON ASBESTOS	€ 85,30

» 15100T

HOUSING SET,BRG WATER PUMP

Part Number	Qty.	Specifications	Price
8AG215100B	1		€ 148,67

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
RFB915116	1	NON ASBESTOS	€ 3,60

» 15117B

HUB,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
VS0115117	1		€ 20,82

» 15130

COVER,WATER PUMP

Part Number	Qty.	Specifications	Price
RF0315161C	1		€ 30,86

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
RFB315141A	1		€ 64,97

» 15146A

STUD,COOLING FAN

Part Number	Qty.	Specifications	Price
S21015146	4	A (S210-15-146A)	€ 2,01

» 15162

GASKET

Part Number	Qty.	Specifications	Price
RFB915162	1	NON ASBESTOS - 990501 SD32 -805114 SR32 -808615	€ 3,19
RFB915162A	1	990501 - SD32805114- SR32808615-	€ 3,32

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AG815171	1		€ 32,88

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
RFB315172A	1		€ 41,23

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
RFC615173	1	NON ASBESTOS	€ 5,25

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
R26415185	1	4X4	€ 22,25
R2L115185	1	4X2	€ 28,44

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
RFB315186	1	AN (RFB3-15-186A) - 990101 SD32 -804425 SR32 -807548	€ 16,52
RFB315186A	1	990101 - SD32804425- SR32807548-	€ 17,02

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
R2L115200	1	A (R2L1-15-200A) (VAN>4X2)	€ 328,02
R2L415200	1	A (R2L4-15-200A) (VAN>4X4)	€ 328,02
R2M115200	1	AN (R2M1-15-200A) TRUCK

» 15202

RUBBER,MOUNT

Part Number	Qty.	Specifications	Price
F81E15202	2	990601 - SD32805225- SR32808898-

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
B3C715205	1	DENSO	€ 14,23

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
G60715316	1	USA DENSO	€ 6,90

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
S21015204	1		€ 4,24

» 15208A

SEAL,RADIATOR LOW.

Part Number	Qty.	Specifications	Price
RFE915431	1		€ 18,20

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
R26515150A	1	AN (R265-15-150B) - 970401 SD32 -800012**	€ 256,50
R26515150B	1	970401 - 980824 SD32800012-803488 SR32 -805946	€ 266,86
R2L115150	1	980824 - SD32803488- SR32805946-	€ 266,86

» 15210A

COWLING,RADIATOR

Part Number	Qty.	Specifications	Price
R2D115210D	1	AN (R2D1-15-210E) 4X2 - 990420 SD32 -805078 SR32 -808565	€ 75,07
R2D115210E	1	4X2 990420 - SD32805078- SR32808565-	€ 78,10
RFE915210C	1	AN (RFE9-15-210D) 4X4	€ 69,51

» 15218A

RIVET

Part Number	Qty.	Specifications	Price
RFB315218A	7		€ 1,17

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
R2L115140	1	AN (R2L1-15-140A) - 970401 SD32 -800012**	€ 355,24
R2L115140A	1	AN (R2L1-15-140B) 970401 - 980824 SD32800012-803488 SR32 -805946	€ 355,24
R2L115140B	1	980824 - SD32803488- SR32805946-	€ 369,59

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
R2M115370A	1	ILLUST. NO.2 TRUCK
RF0115261	1	ILLUST. NO.1 TRUCK	€ 10,31

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
R2L115380	1	A (R2L1-15-380A) VAN - 970901 SR32 -801982**	€ 22,05
R2L115380A	1	VAN 970901 - SR32801982-**	€ 22,94
R2M115380A	1	AN (R2M1-15-380B) TRUCK - 970401 SD32 -800012**
R2M115380B	1	TRUCK 970401 - SD32800012-**

» 15300B

BRACKET,FAN

Part Number	Qty.	Specifications	Price
R26515340A	1		€ 111,24

» 15344

PULLEY,FAN

Part Number	Qty.	Specifications	Price
RFJ515344	1		€ 28,48

» 15345

SHAFT,BEARING-FAN BRKT.

Part Number	Qty.	Specifications	Price
R26515345	1		€ 45,85

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
RF0115250A	1	TRUCK	€ 34,95
RFJ515350	1	AN (RFJ5-15-350A) VAN - 990120 SR32 -807778**	€ 72,00
RFJ515350A	1	A (RFJ5-15-350B) VAN 990120 - SR32807778-**	€ 72,00

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
RF0123990A	1	TRUCK	€ 12,43
RFJ515355	1	VAN	€ 13,35

» 15382

PROTECTOR,HOSE-SUB TANK

Part Number	Qty.	Specifications	Price
S21313551	1	TRUCK 970401 - SD32800012-**
VS0115382B	1	TRUCK - 970401 SD32 -800012**	€ 5,89

» 15421

SEAL(R),RADIATOR

Part Number	Qty.	Specifications	Price
RFF115421	1		€ 5,48

» 15441

SEAL(L),RADIATOR

Part Number	Qty.	Specifications	Price
VS0115441	1		€ 6,56

» 15V16

NUT

Part Number	Qty.	Specifications	Price
F81E15V16	2	990601 - SD32805225- SR32808898-

» 17338

BOLT

Part Number	Qty.	Specifications	Price
R50117338A	3		€ 3,08

» 90780

BOLT

Part Number	Qty.	Specifications	Price
907960612	1		€ 2,61

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400800	1		€ 1,54

» 932507

HOSE,WATER

Part Number	Qty.	Specifications	Price
9932507000	1	TRUCK	€ 8,76

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860616	1		€ 1,54

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700B	1		€ 3,12

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3900	1		€ 3,12

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940620	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940845	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960820	1		€ 1,22

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961090	1		€ 2,51

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
9980010105	1		€ 2,78

Cooling System(diesel)
