Injection Pump 01/02 (-8901) 02/02 (8901-)

Injection Pump |

Mazda parts catalog

Parts > Mazda E2000 > 1997-03 > Diesel-engine Supplement > Injection Pump

Search by part number:

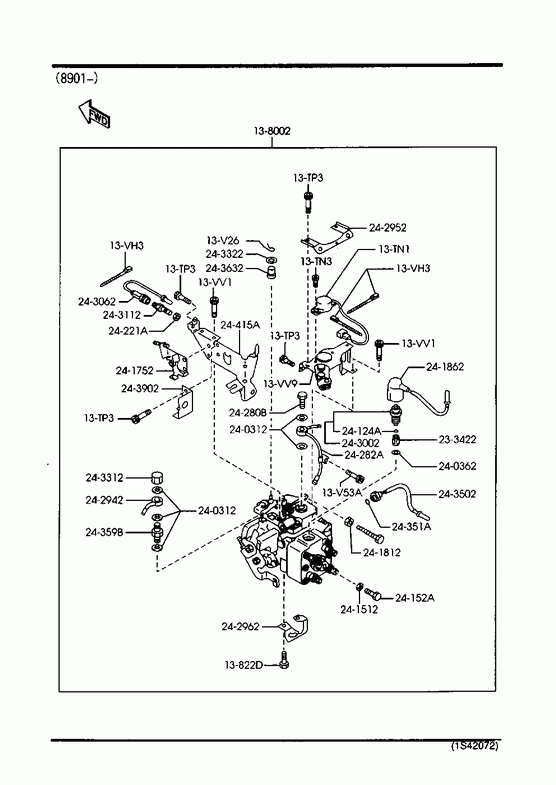

Injection Pump(diesel)

01/02 (-8901)
02/02 (8901-)

PUMP,INJECTION

Part Number	Qty.	Specifications	Price
R2N513800	1	C (R2N5-13-800A) W/O EX.SHUTTER VALVE - 980901 SD32 -803580 SR32 -805981	€ 2354,42
R2N613800	1	W/EX.SHUTTER VALVE - 970401 SD32 -800012**
R2R713800	1	C (R2R7-13-800A) 980901 - 990618 SD32803580-805446 SR32805981-809181
R2R713800A	1	990618 - SD32805446- SR32809181-	€ 2401,51

» 13822D

BOLT

Part Number	Qty.	Specifications	Price
RF2A13V51	2	990618 - SD32805446- SR32809181-	€ 2,85
S5A113V51	2	- 990618 SD32 -805446 SR32 -809181

» 13TN1

SENSOR,POSITION-THROTTLE

Part Number	Qty.	Specifications	Price
R2L113TN1	1	980901 - SD32803580- SR32805981-	€ 278,71

» 13TN3

SCREW,POSITION-SENSOR

Part Number	Qty.	Specifications	Price
RFP113TN3	2	980901 - SD32803580- SR32805981-	€ 2,79

» 13TP3

BOLT,PUMP-FUEL INJECTION

Part Number	Qty.	Specifications	Price
VS0113TP3	8	980901 - SD32803580- SR32805981-	€ 5,56

» 13V26

PLUG

Part Number	Qty.	Specifications	Price
RFP113V26	1	980901 - SD32803580- SR32805981-

» 13V53A

BOLT

Part Number	Qty.	Specifications	Price
VS0113V53	1		€ 5,28

» 13VH3

CLIP,EYE-F.I.PUMP

Part Number	Qty.	Specifications	Price
RFP113VH3	3	980901 - SD32803580- SR32805981-	€ 3,86

» 13VV1

BOLT

Part Number	Qty.	Specifications	Price
RFP113VV1	9	980901 - SD32803580- SR32805981-	€ 7,16

» 13VV9

BRKT,ACCEL.WIRE-F.I.PUMP

Part Number	Qty.	Specifications	Price
R2L513VV9	1	980901 - SD32803580- SR32805981-	€ 86,80

» 233422

FILTER

Part Number	Qty.	Specifications	Price
S5A113VF5	1		€ 28,39

» 240312

GASKET

Part Number	Qty.	Specifications	Price
S50124283	5		€ 3,05

» 24124A

RING,'O'

Part Number	Qty.	Specifications	Price
S5A113VJ7	1		€ 7,01

» 241512

GASKET

Part Number	Qty.	Specifications	Price
S50124154	1		€ 0,62

» 24152A

BOLT

Part Number	Qty.	Specifications	Price
S50124152	1		€ 6,45

» 241752

BRACKET

Part Number	Qty.	Specifications	Price
R2L513VV7	1	980901 - SD32803580- SR32805981-	€ 41,92
RFP113TR4	1		€ 79,96

» 241812

NUT

Part Number	Qty.	Specifications	Price
S50124181	1		€ 6,79

» 241862

WIRE

Part Number	Qty.	Specifications	Price
R2L213VZ9	1	W/EX.SHUTTER VALVE - 970401 SD32 -800012**
R2L313VZ9	1	W/O EX.SHUTTER VALVE - 980901 SD32 -803580 SR32 -805981	€ 20,36
RFP113VZ9	1	980901 - SD32803580- SR32805981-	€ 17,47

» 24221A

NUT

Part Number	Qty.	Specifications	Price
RFP113VX7	1	980901 - SD32803580- SR32805981-	€ 11,77

» 24280B

VALVE,OVER FLOW

Part Number	Qty.	Specifications	Price
S50124280	1		€ 31,01

» 24282A

EYE

Part Number	Qty.	Specifications	Price
R2L313VH6	1		€ 81,91

» 242942

EYE

Part Number	Qty.	Specifications	Price
VS0113VH5	1

» 242952

BRACKET

Part Number	Qty.	Specifications	Price
R2R713VW1	1	980901 - SD32803580- SR32805981-	€ 34,29

» 242962

BRACKET

Part Number	Qty.	Specifications	Price
R2L313V03	1	- 980901 SD32 -803580 SR32 -805981
R2S213V03	1	990618 - SD32805446- SR32809181-	€ 53,47
RFP113V03	1	980901 - 990618 SD32803580-805446 SR32805981-809181

» 243002

VALVE,MAGNET

Part Number	Qty.	Specifications	Price
S5A113VF4	1		€ 276,24

» 243062

WIRE

Part Number	Qty.	Specifications	Price
R2L113T69	1	980901 - SD32803580- SR32805981-	€ 21,40

» 243112

SWITCH,MICRO

Part Number	Qty.	Specifications	Price
PN4113XH0	1	980901 - SD32803580- SR32805981-	€ 105,83
R2L213TT0	1	W/EX.SHUTTER VALVE - 970401 SD32 -800012**

» 243312

NUT

Part Number	Qty.	Specifications	Price
RF6613VX7	1		€ 5,11

» 243322

WASHER

Part Number	Qty.	Specifications	Price
S50124332	1	980901 - SD32803580- SR32805981-	€ 1,39

» 243502

PICK UP

Part Number	Qty.	Specifications	Price
R2L313TS1	1	980901 - SD32803580- SR32805981-	€ 127,82

» 24351A

RING,'O'

Part Number	Qty.	Specifications	Price
RFP113TS2	1	980901 - SD32803580- SR32805981-	€ 3,12

» 24359B

BOLT

Part Number	Qty.	Specifications	Price
RF6613VG7	1		€ 7,44

» 243632

BUSH

Part Number	Qty.	Specifications	Price
RFP113VW4	1	980901 - SD32803580- SR32805981-	€ 10,48

» 243902

BRACKET

Part Number	Qty.	Specifications	Price
RFP113TN2	1		€ 17,23

» 24415A

BRACKET

Part Number	Qty.	Specifications	Price
R2L313VV8	1		€ 78,20

Injection Pump(diesel)
