Mazda E2000 SD,SR 1997-03 Mazda Fuel System 01/02 (VAN) 02/02 (TRK)

Mazda parts catalog

Parts > Mazda E2000 > 1997-03 > Diesel-engine Supplement > Fuel System(diesel)

Search by part number:

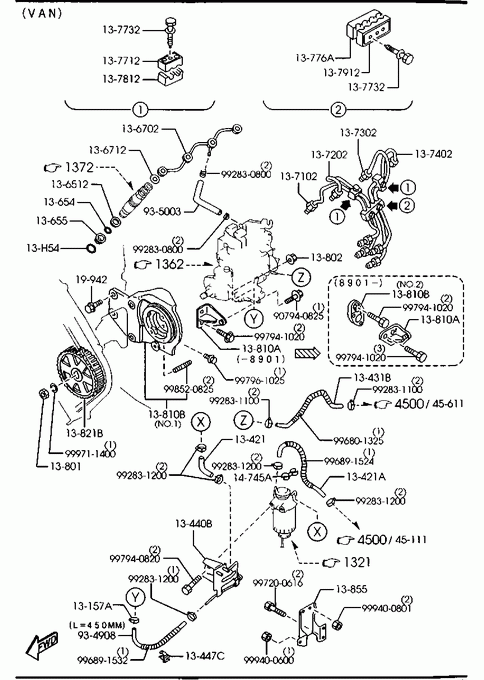

Fuel System(diesel)

01/02 (VAN)
02/02 (TRK)

CLIP

Part Number	Qty.	Specifications	Price
B6B113157	1		€ 2,46

» 13421

HOSE,FUEL MAIN

Part Number	Qty.	Specifications	Price
R2N513416	1

» 13421A

HOSE,FUEL MAIN

Part Number	Qty.	Specifications	Price
R2N513411A	1	VAN	€ 10,68
R2P313411	1	A (R2P3-13-411A) TRUCK - 980901 SD32 -803580 SR32 -805981

» 13431B

HOSE,FUEL

Part Number	Qty.	Specifications	Price
R2N513431A	1	AN (R2N5-13-431B) VAN - 980301 SR32 -804442**
R2N513431B	1	A (R2N5-13-431C) VAN 980301 - 990801 SR32804442-809624**
R2N513431C	1	VAN 990801 - SR32809624-**	€ 11,49
R2P313431	1	A (R2P3-13-431A) TRUCK - 980901 SD32 -803580 SR32 -805981

» 13440B

BRACKET,FUEL FILTER

Part Number	Qty.	Specifications	Price
R2N513440A	1

» 13447C

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
R2N513447A	1

» 136512

WASHER,NOZZLE

Part Number	Qty.	Specifications	Price
PN1113H51	4		€ 1,98

» 13654

GASKET

Part Number	Qty.	Specifications	Price
PN1113H52	4	NON ASBESTOS	€ 2,12

» 13655

SHIELD,HEAT

Part Number	Qty.	Specifications	Price
PN1113H53	4	AN (PN11-13-H53B)	€ 6,21

» 136702

PIPE,FUEL LEAK

Part Number	Qty.	Specifications	Price
RF1L13G90	1		€ 51,01

» 136712

GASKET,LEAK PIPE

Part Number	Qty.	Specifications	Price
PN1113G92A	4		€ 2,04

» 137102

PIPE NO.1,INJECTION

Part Number	Qty.	Specifications	Price
RF1L13G10B	1		€ 37,15

» 137202

PIPE,FUEL INJECTION

Part Number	Qty.	Specifications	Price
RF1L13G20B	1		€ 37,15

» 137302

PIPE NO.3,INJECTION

Part Number	Qty.	Specifications	Price
RF1L13G30A	1		€ 37,17

» 137402

PIPE,FUEL INJECTION

Part Number	Qty.	Specifications	Price
RF1L13G40A	1		€ 37,17

» 137712

CLIP,PIPE

Part Number	Qty.	Specifications	Price
RF0113771	2		€ 3,05

» 137732

BOLT,CLIP

Part Number	Qty.	Specifications	Price
RF1113773A	4		€ 1,12

» 13776A

CLIP

Part Number	Qty.	Specifications	Price
RF0113776	1		€ 3,29

» 137812

CLIP,INJECTION PIPE

Part Number	Qty.	Specifications	Price
RF0113772	2		€ 2,26

» 137912

CLIP,INJECTION PIPE

Part Number	Qty.	Specifications	Price
RF0113775	1		€ 3,29

» 13801

NUT

Part Number	Qty.	Specifications	Price
RF0113801	1		€ 2,18

» 13802

NUT,INJECTION PUMP

Part Number	Qty.	Specifications	Price
RF0113802	2		€ 2,93

» 13810A

STAY,INJECTION PUMP

Part Number	Qty.	Specifications	Price
RF7113G0XA	1	- 980901 SD32 -803580 SR32 -805981	€ 16,27
RFP113G0XA	1	980901 - 990618 SD32803580-805446 SR32805981-809181

» 13810B

BRACKET,F.I.PUMP

Part Number	Qty.	Specifications	Price
R2S213G05B	1	ILLUST. NO.2 990618 - SD32805446- SR32809181-	€ 6,56
RF1L13G00B	1	ILLUST. NO.1 990301 - SD32804696- SR32808112-	€ 147,34
RF7113G00A	1	A (RF71-13-G00B) ILLUST. NO.1 - 980113 SD32 -801832 SR32 -803577	€ 140,23
RF7113G00B	1	ILLUST. NO.1 980113 - 990301 SD32801832-804696 SR32803577-808112
RFP113G01A	1	ILLUST. NO.2 980901 - 990618 SD32803580-805446 SR32805981-809181

» 13821B

PULLEY,F.I.PUMP

Part Number	Qty.	Specifications	Price
RFB313804	1		€ 52,84

» 13855

BRKT,FUEL FILTER

Part Number	Qty.	Specifications	Price
R20513856A	1	TRUCK
RF0113855A	1	VAN	€ 8,16

» 13H54

WASHER,SHIELD HEAT-NOZZLE

Part Number	Qty.	Specifications	Price
PN1113H54	4		€ 1,86

» 14745A

CLIP,OIL PIPE

Part Number	Qty.	Specifications	Price
R22614836	1		€ 1,68

» 19942

BOLT BRACKET

Part Number	Qty.	Specifications	Price
387619942	1		€ 2,87

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996891524	1

» 90688

PROTECTOR

Part Number	Qty.	Specifications	Price
996891532	1

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200616	1		€ 1,41

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907940825	1		€ 1,53

» 90857

STUD

Part Number	Qty.	Specifications	Price
998520825	1		€ 1,29

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 934908

HOSE

Part Number	Qty.	Specifications	Price
9934908750	1	L=1.75 CUT IT TO USE	€ 32,66

» 935003

HOSE

Part Number	Qty.	Specifications	Price
9934104750	1	L=1.75 CUT IT TO USE - 980901 SD32 -803580 SR32 -805981	€ 11,45
9935505120	1	980901 - SD32803580- SR32805981-

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992830800	1		€ 1,32

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831100	1		€ 0,80

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831200	1		€ 0,82

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940820	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941020	1		€ 2,06

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14

» 99971

WASHER,SPRING

Part Number	Qty.	Specifications	Price
999711400	1		€ 0,40

Fuel System(diesel)
