Mazda E2000 SD,SR 1987-12 Mazda Cooling System 01/02 (-5609) 02/02 (5609-)

Mazda parts catalog

Parts > Mazda E2000 > 1987-12 > Diesel-engine Supplement > Cooling System(diesel)(4x2)

Search by part number:

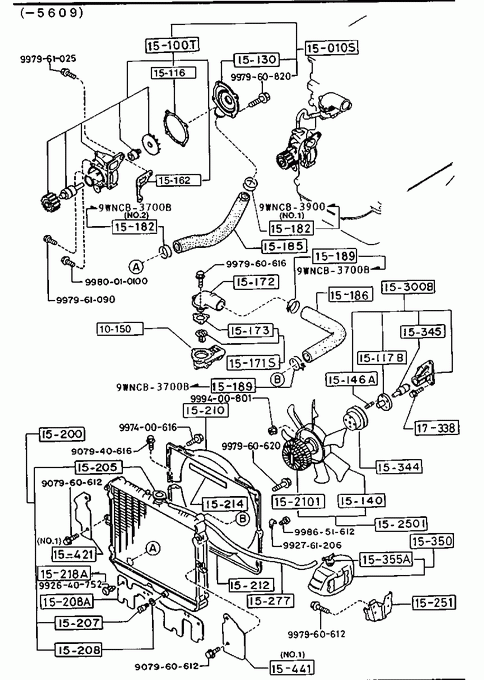

Cooling System(diesel)(4x2)

01/02 (-5609)
02/02 (5609-)

CASING,THERMOSTAT

Part Number	Qty.	Specifications	Price
R24110150A	1	- 880101 SR -600026	€ 53,42
R24110150B	1	880101 - 900101 SD132 -700778 SR***600026- SR1H32 -703370	€ 53,42
R24110150C	1	A (R241-10-150D) 900101 - 930601 SD1*32700778-705205 SR1H32703370-724211	€ 53,42
R24110150D	1	930601 - SD1*32705205- SR1H32724211-	€ 55,58

» 15010S

PUMP SET,WATER

Part Number	Qty.	Specifications	Price
8AG615010	1	ASBESTOS - 900101 SD1*32 -700778 SR1H32 -703370	€ 85,30
8AG615010A	1	NON ASBESTOS 900101 - SD1*32700778- SR1H32703370-	€ 85,30

» 15100T

HOUSING SET,BRG WATER PUMP

Part Number	Qty.	Specifications	Price
8AG215100	1	ASBESTOS - 900101 SD1*32 -700778 SR1H32 -703370
8AG215100A	1	NON ASBESTOS 900101 - 940513 SD1*32700778-706337 SR1H32703370-728533	€ 148,67
8AG215100B	1	940513 - SD1*32706337- SR1H32728533-	€ 148,67

» 15116

GASKET,WATER PUMP

Part Number	Qty.	Specifications	Price
RF0115116	1	ASBESTOS - 900101 SD1*32 -700778 SR1H32 -703370	€ 4,10
RFB915116	1	NON ASBESTOS 900101 - SD1*32700778- SR1H32703370-	€ 3,60

» 15117B

HUB,W.PUMP PULLEY

Part Number	Qty.	Specifications	Price
R26515117	1	A (VS01-15-117) - 950101 SD1*32 -707551 SR1H32 -731358
VS0115117	1	950101 - SD1*32707551- SR1H32731358-	€ 20,82

» 15130

COVER,WATER PUMP

Part Number	Qty.	Specifications	Price
RF0315161B	1	A (RF03-15-161C) - 940513 SD1*32 -706337 SR1H32 -728533
RF0315161C	1	940513 - SD1*32706337- SR1H32728533-	€ 30,86

» 15140

FAN,COOLING

Part Number	Qty.	Specifications	Price
R24115141	1	- 900101 SD1*32 -700778 SR1H32 -703370	€ 64,97
R24115141A	1	900101 - 940301 SD1*32700778-706114 SR1H32703370-727550	€ 64,97
R26515141	1	940301 - SD1*32706114- SR1H32727550-	€ 64,97

» 15146A

STUD,COOLING FAN

Part Number	Qty.	Specifications	Price
S21015146	4	A (S210-15-146A)	€ 2,01

» 15162

GASKET

Part Number	Qty.	Specifications	Price
RF9515162	1	ASBESTOS - 900201 SD1*32 -700862 SR1H32 -703854	€ 2,86
RFB915162	1	NON ASBESTOS 900201 - SD1*32700862- SR1H32703854-	€ 3,19

» 15171S

THERMOSTAT SET

Part Number	Qty.	Specifications	Price
8AG115171	1	ASBESTOS - 900101 SD1*32 -700778 SR1H32 -703370	€ 21,17
8AG115171A	1	NON ASBESTOS 900101 - SD1*32700778- SR1H32703370-	€ 21,17

» 15172

COVER,THERMOSTAT

Part Number	Qty.	Specifications	Price
RF9515172	1		€ 27,34

» 15173

GASKET,THERMOSTAT COVER

Part Number	Qty.	Specifications	Price
RFB915173	1	NON ASBESTOS 900201 - 950701 SD1*32700862-708159 SR1H32703854-733486	€ 3,42
S21115173	1	ASBESTOS - 900201 SD1*32 -700862 SR1H32 -703854	€ 3,42
SLM115173A	1	950701 - SD1*32708159- SR1H32733486-	€ 4,28

» 15182

CLAMP,WATER HOSE

Part Number	Qty.	Specifications	Price
N32615182	1	AN (9WNCB-4100) ILLUST. NO.1 - 880501 SD022 -600602 SR*** -603109	€ 2,97
RF7215182	1	AN (9WNCB-3900) ILLUST. NO.2 - 880501 SD022 -600602 SR*** -603109	€ 5,56

» 15185

HOSE,WATER

Part Number	Qty.	Specifications	Price
R2L115185	1	970328 - SR1H32740596-	€ 28,44
RF9515185A	1	C (RF95-15-185B) - 930401 SD1*32 -704895 SR1H32 -723545	€ 27,32
RF9515185B	1	A (R2L1-15-185) 930401 - 970328 SD1*32704895- SR1H32723545-740596	€ 27,32

» 15186

HOSE,WATER

Part Number	Qty.	Specifications	Price
RF9515186	1		€ 15,15

» 15189

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
B63015182	2	AN (9WNCB-3700) - 880501 SD022 -600602 SR*** -603109	€ 2,97

» 15200

RADIATOR

Part Number	Qty.	Specifications	Price
RF0115200D	1	DENSO - 930501 SD1*32 -705089 SR1H32 -723759	€ 328,02
RF0115200E	1	DENSO 930501 - 950609 SD1*32705089-708133 SR1H32723759-733252	€ 328,02
VS0115200B	1	950609 - SD1*32708133- SR1H32733252-	€ 328,02

» 15205

CAP,RADIATOR

Part Number	Qty.	Specifications	Price
FEG815205	1	DENSO - 950609 SD1*32 -708133 SR1H32 -733252	€ 13,67
VS0115205	1	DENSO 950609 - SD1*32708133- SR1H32733252-	€ 23,84

» 15207

COCK,DRAIN

Part Number	Qty.	Specifications	Price
S21015316	1	NIHON DENSO	€ 6,90

» 15208

GASKET,DRAIN COCK

Part Number	Qty.	Specifications	Price
S21015204	1		€ 4,24

» 15208A

SEAL,RADIATOR LOW.

Part Number	Qty.	Specifications	Price
RF9515431A	1	- 891001 SD1*32 -700419 SR1H32 -701519	€ 18,62
RFB315431	1	891001 - 950609 SD1*32700419-708133 SR1H32701519-733252	€ 18,62
RFE915431	1	950609 - SD1*32708133- SR1H32733252-	€ 18,20

» 15210

COWLING,RADIATOR-UP

Part Number	Qty.	Specifications	Price
R20115211C	1	- 950609 SD1*32 -708133 SR1H32 -733252	€ 35,15

» 152101

FAN DRIVE

Part Number	Qty.	Specifications	Price
R24115150	1	- 900101 SD1*32 -700778 SR1H32 -703370	€ 266,86
R24115150A	1	900101 - 940301 SD1*32700778-706114 SR1H32703370-727550	€ 224,15
R26515150A	1	AN (R265-15-150B) 940301 - SD1*32706114- SR1H32727550-	€ 256,50

» 15212

COWLING,RADIATOR-LWR

Part Number	Qty.	Specifications	Price
R20115212C	1	- 950609 SD1*32 -708133 SR1H32 -733252	€ 35,15

» 15214

SEAL,AIR

Part Number	Qty.	Specifications	Price
RF0115214	1	- 950101 SD1*32 -707551 SR1H32 -731358

» 15218A

RIVET

Part Number	Qty.	Specifications	Price
RFB315218A	8	890401 - 930422 SD022602488- SD132 -705067 SR****609663- SR1H32 -723736	€ 1,17

» 152501

FAN & FAN DRIVE

Part Number	Qty.	Specifications	Price
R24115140	1	AN (R241-15-140A) - 900101 SD1*32 -700778 SR1H32 -703370	€ 351,73
R24115140A	1	AN (R265-15-140) 900101 - 940301 SD1*32700778-706114 SR1H32703370-727550	€ 351,73
R26515140A	1	AN (R265-15-140B) 940301 - SD1*32706114- SR1H32727550-	€ 355,24

» 15251

BRACKET,SUB TANK

Part Number	Qty.	Specifications	Price
RF0115261	1		€ 10,31

» 15277

HOSE,WATER SUB TANK

Part Number	Qty.	Specifications	Price
9932407380	1	951001 - SD1*32708423- SR1H32734449-	€ 6,01
RF0115277	1	- 951001 SD1*32 -708423 SR1H32 -734449	€ 5,70

» 15300B

BRACKET,FAN

Part Number	Qty.	Specifications	Price
R26515340	1	A (R265-15-340A) - 901201 SD1*32 -701892 SR1H32 -708179
R26515340A	1	901201 - SD1*32701892- SR1H32708179-	€ 111,24

» 15344

PULLEY,FAN

Part Number	Qty.	Specifications	Price
RF0115344	1	A (RF01-15-344A) - 891108 SD1*32 -700585 SR1H32 -702245	€ 18,12
RF0115344A	1	891108 - 931201 SD1*32700585-705777 SR1H32702245-726218	€ 18,85
RFJ515344	1	931201 - SD1*32705777- SR1H32726218-	€ 28,48

» 15345

SHAFT,BEARING-FAN BRKT.

Part Number	Qty.	Specifications	Price
R26515345	1		€ 45,85

» 15350

TANK,SUB-RADIATOR

Part Number	Qty.	Specifications	Price
RF0115250	1	A (RF01-15-250A) - 881117 SD022 -601693 SR*** -606480	€ 33,59
RF0115250A	1	881117 - SD022601693- SR***606480-	€ 34,95

» 15355A

CAP,SUB TANK

Part Number	Qty.	Specifications	Price
RF0123990	1	A (RF01-23-990A) - 881117 SD022 -601693 SR*** -606480	€ 11,95
RF0123990A	1	881117 - SD022601693- SR***606480-	€ 12,43

» 15421

SEAL(R),RADIATOR

Part Number	Qty.	Specifications	Price
FEN515421	1	ILLUST. NO.2 950609 - SD1*32708133- SR1H32733252-
R26415421A	1	ILLUST. NO.1 - 930422 SD1*32 -705067 SR1H32 -723736
RFF115421	1	ILLUST. NO.1 930422 - SD1*32705067- SR1H32723736-	€ 5,48

» 15441

SEAL(L),RADIATOR

Part Number	Qty.	Specifications	Price
R26415441A	1	ILLUST. NO.1 - 930422 SD1*32 -705067 SR1H32 -723736
RFB315441	1	ILLUST. NO.2 950609 - SD1*32708133- SR1H32733252-
VS0115441	1	ILLUST. NO.1 930422 - SD1*32705067- SR1H32723736-	€ 6,56

» 17338

BOLT

Part Number	Qty.	Specifications	Price
R50117338A	3		€ 3,08

» 90720

SCREW

Part Number	Qty.	Specifications	Price
997400616	1		€ 0,57

» 90780

BOLT

Part Number	Qty.	Specifications	Price
907960612	1		€ 2,61

» 90794

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907940616	1		€ 1,73

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400801	1		€ 1,64

» 99263

RIVET

Part Number	Qty.	Specifications	Price
992640752	1

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992761206	1		€ 2,12

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3700B	1		€ 3,12

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
9WNCB3900	1		€ 3,12

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960612	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960616	1		€ 0,81

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960620	1		€ 1,18

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960820	1		€ 1,22

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961090	1		€ 2,51

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
9980010100	1		€ 2,88

Cooling System(diesel)(4x2)
