Mazda DEMIO DW 2000-01 Mazda Floor Attachments 01/02 02/02 (0829-)

Mazda parts catalog

Parts > Mazda DEMIO > 2000-01 > Body Exterior Trim > Floor Attachments

Search by part number:

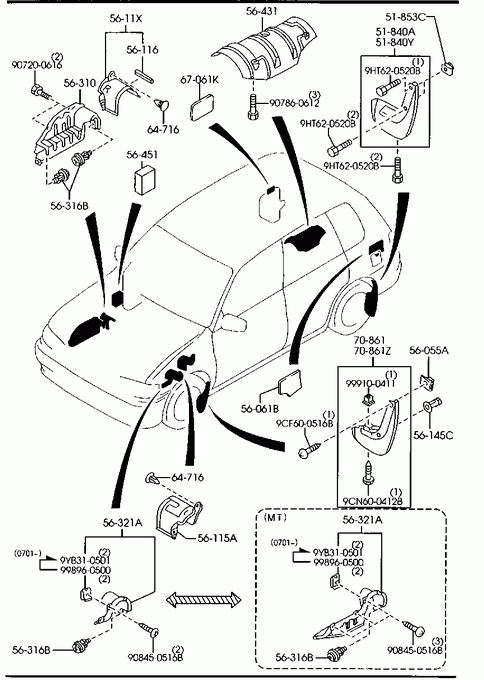

Floor Attachments

FLAP(R),REAR

Part Number	Qty.	Specifications	Price
DC0351870	1		€ 35,48

» 51840Y

FLAP(L),REAR

Part Number	Qty.	Specifications	Price
DC0351880	1		€ 35,48

» 51853C

NUT,CLIP

Part Number	Qty.	Specifications	Price
B09251861	4		€ 2,83

» 56055A

GROMMET

Part Number	Qty.	Specifications	Price
B25D51832	2		€ 1,36

» 56061B

COVER(R),SIDE-DECK

Part Number	Qty.	Specifications	Price
DC2056061A	1		€ 4,00

» 56115A

COVER(L),TIE ROD-F. FRAME

Part Number	Qty.	Specifications	Price
D00156115	1		€ 13,92

» 56116

RUBBER,SEAL-TIE ROD COVER

Part Number	Qty.	Specifications	Price
D00156116	1		€ 1,52

» 5611X

COVER(R),TIE ROD-F. FRAME

Part Number	Qty.	Specifications	Price
D0015611X	1		€ 8,60

» 56145C

CLIP,MUD GUARD

Part Number	Qty.	Specifications	Price
BC1D56145	12		€ 0,64

» 56310

SHIELD(R),SPLASH-FRONT

Part Number	Qty.	Specifications	Price
D06156311A	1		€ 18,31

» 56316B

FASTENER,SPLASH SHIELD

Part Number	Qty.	Specifications	Price
D06156316	3		€ 2,95

» 56321A

SHIELD(L),SPLASH-FRONT

Part Number	Qty.	Specifications	Price
D06156320	1	AN (D061-56-320A) MANUAL TRANSMISSION - 000701 DW19 -316252**	€ 27,34
D06156320A	1	AN (D061-56-320B) MANUAL TRANSMISSION 000701 - 001101 DW19316252-325363**	€ 27,34
D06156320B	1	MANUAL TRANSMISSION 001101 - DW19325363-**	€ 28,45
D06356320	1	AN (D063-56-320A) AUTOMATIC TRANSMISSION - 000701 DW19 -316252**	€ 27,34
D06356320A	1	AN (D063-56-320B) AUTOMATIC TRANSMISSION 000701 - 001127 DW19316252-326910**
D06356320B	1	AUTOMATIC TRANSMISSION 001127 - DW19326910-**	€ 28,45

» 56431

INSULATOR,HEAT

Part Number	Qty.	Specifications	Price
D10156451	1		€ 28,06

» 56451

INSULATOR

Part Number	Qty.	Specifications	Price
DC3556486A	2

» 64716

FASTENER

Part Number	Qty.	Specifications	Price
139164716	4		€ 1,12

» 67061K

PAD,PROTECTOR

Part Number	Qty.	Specifications	Price
D20156789	1		€ 2,28

» 70861

FLAP(R),FRONT

Part Number	Qty.	Specifications	Price
DC0351840B	1		€ 43,01

» 70861Z

FLAP(L),FRONT

Part Number	Qty.	Specifications	Price
DC0351850B	1		€ 43,01

» 90720

SCREW

Part Number	Qty.	Specifications	Price
9CF600516B	1		€ 1,64

» 90730

SCREW & WASHER

Part Number	Qty.	Specifications	Price
907200616	1		€ 1,13

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
907860612	1		€ 1,60

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
908450514B	1

» 90786

SCREW & WASHER,TAPPING

Part Number	Qty.	Specifications	Price
908450516B	1		€ 1,26

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
9CN600412B	1		€ 1,51

» 99601

BOLT

Part Number	Qty.	Specifications	Price
9HT620520B	1		€ 0,75

» 99896

NUT,SPRING

Part Number	Qty.	Specifications	Price
998960500	1		€ 1,31

» 99896

NUT,SPRING

Part Number	Qty.	Specifications	Price
9YB310501	1

» 99910

GROMMET,SCREW

Part Number	Qty.	Specifications	Price
999100411	1		€ 2,03
