Mazda B2600 UF 1989-09 Mazda Air Cleaner

Mazda parts catalog

Parts > Mazda B2600 > 1989-09 > Gasoline-engine 4-cylinder Supplement > Air Cleaner(gasoline)(1600cc & 2000cc)

Search by part number:

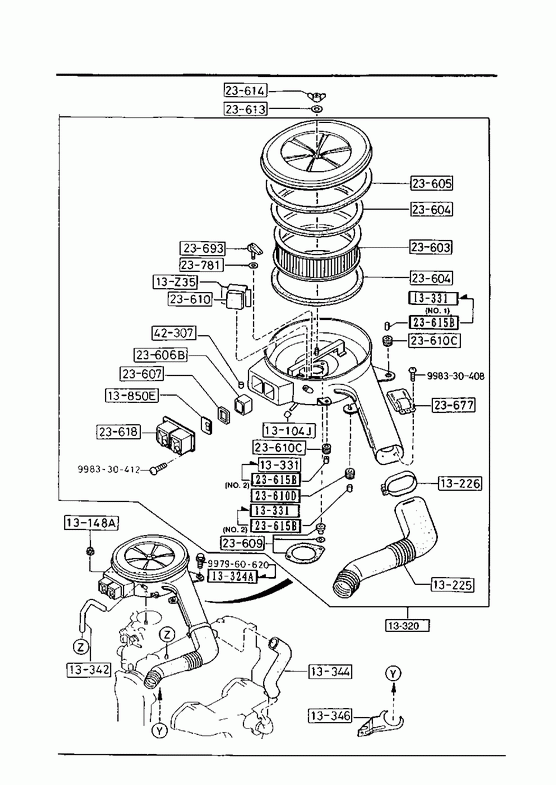

Air Cleaner(gasoline)(1600cc & 2000cc)

CAP,BLIND

Part Number	Qty.	Specifications	Price
101013104	1		€ 2,55

» 13148A

NUT,FLANGE-AIR CLEANER

Part Number	Qty.	Specifications	Price
F24013148	2

» 13225

DUCT,FRESH AIR

Part Number	Qty.	Specifications	Price
FED113201	1		€ 20,31

» 13226

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
FE8513735	1

» 13320

CLEANER,AIR

Part Number	Qty.	Specifications	Price
FED113320E	1	C (FED1-13-320F) - 900301 UF2 -602346*
FED113320F	1	900301 - UF2602346-*

» 13324A

BOLT

Part Number	Qty.	Specifications	Price
B36613324	3	900301 - UF2602346-*	€ 2,93

» 13331

SPACER,AIR CLEANER

Part Number	Qty.	Specifications	Price
285013331	3	A (0727-65-052A) 900301 - UF2602346-*	€ 2,62

» 13342

HOSE,VENTILATION

Part Number	Qty.	Specifications	Price
FE6513342A	1		€ 8,81

» 13344

HOSE,HOT AIR

Part Number	Qty.	Specifications	Price
823913344	1		€ 20,23

» 13346

BRACKET,FRESH AIR DUCT

Part Number	Qty.	Specifications	Price
FE8513346A	1

» 13850E

VALVE,REED

Part Number	Qty.	Specifications	Price
E56713850	2		€ 33,34

» 13Z35

CASE,BREATHER-AIR CLEANER

Part Number	Qty.	Specifications	Price
FE6513Z35	1		€ 2,67

» 23603

ELEMENT,AIR CLEANER

Part Number	Qty.	Specifications	Price
030523603	1		€ 19,08

» 23604

GASKET,ELEMENT

Part Number	Qty.	Specifications	Price
HE4123604	2		€ 8,65

» 23605

GASKET,COVER

Part Number	Qty.	Specifications	Price
F80123605	1		€ 7,80

» 23606B

FILTER,REED VALVE

Part Number	Qty.	Specifications	Price
E56323606	2		€ 14,13

» 23607

GASKET,REED VALVE

Part Number	Qty.	Specifications	Price
E56323607	2		€ 5,38

» 23609

GASKET

Part Number	Qty.	Specifications	Price
FE8513Z12	1	NON ASBESTOS	€ 4,60

» 23610

ELEMENT,BREATHER

Part Number	Qty.	Specifications	Price
FE6513Z07	1	A (FE10-13-Z07)	€ 1,79

» 23610C

INSULATOR

Part Number	Qty.	Specifications	Price
F60123610	2	A (F801-23-610)	€ 2,75

» 23610D

INSULATOR

Part Number	Qty.	Specifications	Price
F80123610	1		€ 2,40

» 23613

WASHER,SEAL

Part Number	Qty.	Specifications	Price
030523613	1		€ 2,01

» 23614

NUT,WING

Part Number	Qty.	Specifications	Price
030523614	1		€ 3,46

» 23615B

COLLAR

Part Number	Qty.	Specifications	Price
F21013Z11	1	AN (BJ01-13-Z11) ILLUST. NO.1 - 900301 UF2 -602346*	€ 4,23
F89013Z11	2	ILLUST. NO.2 - 900301 UF2 -602346*	€ 2,21

» 23618

CASE,REED VALVE

Part Number	Qty.	Specifications	Price
F80123618	1		€ 47,06

» 23677

SHUTTER

Part Number	Qty.	Specifications	Price
FED123620	1

» 23693

COMPENSATOR,IDLE

Part Number	Qty.	Specifications	Price
E54823695	1		€ 37,09

» 23781

GASKET,COMPENSATOR

Part Number	Qty.	Specifications	Price
891423781	1

» 42307

CAP

Part Number	Qty.	Specifications	Price
022342307	1		€ 3,37

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330408	1		€ 0,55

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998330412	1		€ 0,44

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960620	1		€ 1,18

Air Cleaner(gasoline)(1600cc & 2000cc)
