Mazda B2200 UN 1999-02 Mazda Turbo Charger 01/02 (HI-POWER) 02/02 ((NOR-POWER)>(STEP-3 EM))

Mazda parts catalog

Parts > Mazda B2200 > 1999-02 > Diesel-engine Supplement > Turbo Charger(diesel)(high Power & Normal Power>step-3 Emission)

Search by part number:

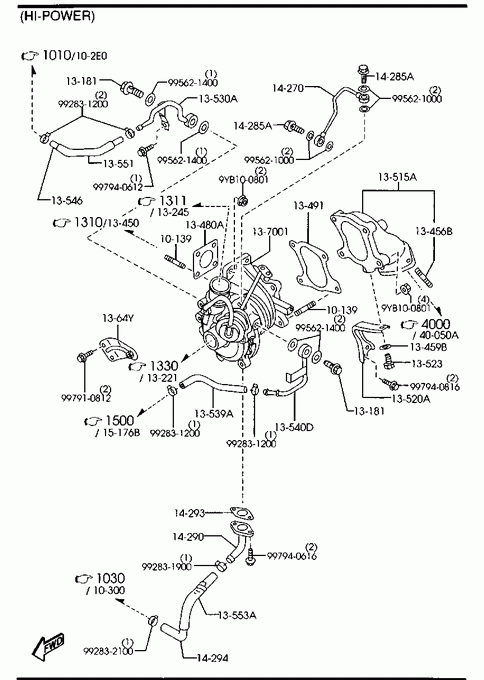

Turbo Charger(diesel)(high Power & Normal Power>step-3 Emission)

01/02 (HI-POWER)
02/02 ((NOR-POWER)>(STEP-3 EM))

STUD,CYLINDER HEAD

Part Number	Qty.	Specifications	Price
SL5010266	6	(NOR-POWER>STEP-3 EM)	€ 8,82

» 13181

CONNECTOR,BOLT

Part Number	Qty.	Specifications	Price
WL0113181	2	HI-POWER	€ 5,61

» 13456B

STUD,EX.MANIFOLD

Part Number	Qty.	Specifications	Price
WL5113456	3		€ 1,17

» 13459B

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
E5B613459	1		€ 1,22

» 13480A

GASKET,EX.MANIFOLD

Part Number	Qty.	Specifications	Price
FE3013480	1		€ 7,30

» 13491

GASKET,JOINT PIPE

Part Number	Qty.	Specifications	Price
WL0113490	1	HI-POWER	€ 17,69
WLE713490	1	(NOR-POWER>STEP-3 EM)	€ 14,32

» 13515A

PIPE,JOINT-EXHAUST

Part Number	Qty.	Specifications	Price
WL8413510	1	HI-POWER	€ 77,27
WLE713510	1	(NOR-POWER>STEP-3 EM)

» 13520A

BRACKET,TURBO

Part Number	Qty.	Specifications	Price
WL0113521	1	AN (WL84-13-521) HI-POWER	€ 16,88
WLE713521	1	A (WLE7-13-521A) (NOR-POWER>STEP-3 EM)

» 13523

BOLT,TURBO C.BRACKET

Part Number	Qty.	Specifications	Price
E5B613523	1		€ 10,94

» 13530A

PIPE,WATER IN -T/C

Part Number	Qty.	Specifications	Price
WL0113530	1	AN (WL84-13-530) HI-POWER	€ 25,97

» 13539A

HOSE,WATER-T/C WATER PIPE

Part Number	Qty.	Specifications	Price
WL0113539	1	HI-POWER	€ 3,80

» 13540D

PIPE,WATER

Part Number	Qty.	Specifications	Price
WL0113540	1	AN (WL84-13-540) HI-POWER	€ 18,92

» 13546

HOSE,WATER-T/C WATER-PIPE

Part Number	Qty.	Specifications	Price
WL0113546	1	HI-POWER	€ 11,44

» 13551

PROTECTOR,VACUUM TUBE

Part Number	Qty.	Specifications	Price
WL0113551	1	HI-POWER	€ 5,25

» 13553A

SUPPORTER,FUEL HOSE

Part Number	Qty.	Specifications	Price
S21313553A	1	- 020201 UN2 -184826*

» 1364Y

BRACKET,INTER COOLER

Part Number	Qty.	Specifications	Price
WL011364YB	1	EXC.STEP-3 EM

» 137001

TURBOCHARGER

Part Number	Qty.	Specifications	Price
WL8413700A	1	A (WL84-13-700B) HI-POWER - 000901 UN2 -146532*	€ 1815,53
WL8413700B	1	AN (WL85-13-700) HI-POWER 000901 - UN2146532-*	€ 1815,53
WLE713700	1	(NOR-POWER>STEP-3 EM)	€ 1446,97

» 14270

PIPE,OIL

Part Number	Qty.	Specifications	Price
WL0114270	1	(HI-POWER>EXC.STEP-3 EM)	€ 41,47
WLE714270	1	(NOR-POWER>STEP-3 EM)	€ 33,42
WLF214270A	1	(HI-POWER>STEP-3 EM)

» 14285A

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
B66014615	2	HI-POWER	€ 14,72

» 14290

PIPE,OIL

Part Number	Qty.	Specifications	Price
WL0114290	1	HI-POWER	€ 36,89
WLE714290	1	(NOR-POWER>STEP-3 EM)

» 14293

GASKET,OIL PIPE

Part Number	Qty.	Specifications	Price
B6F414293	1	NON ASBESTOS HI-POWER	€ 2,32
RFJ514293	1	(NOR-POWER>STEP-3 EM)	€ 3,83

» 14294

HOSE,RETURN-OIL

Part Number	Qty.	Specifications	Price
WL0114294	1	- 020201 UN2 -184826*	€ 19,51
WL8514294	1	020201 - UN2184826-*	€ 8,45

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997910812	1

» 90901

NUT

Part Number	Qty.	Specifications	Price
9YB100801	1		€ 3,51

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831200	1		€ 0,82

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831900	1		€ 1,88

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992832100	1		€ 1,45

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621000	1		€ 2,06

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621400	1		€ 3,08

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940612	1		€ 0,87

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940816	1		€ 0,79

Turbo Charger(diesel)(high Power & Normal Power>step-3 Emission)
