Mazda 929 HD 1991-07 Mazda Parking Brake System

Mazda parts catalog

Parts > Mazda 929 > 1991-07 > Chassis Piping & Fuel Tank > Parking Brake System

Search by part number:

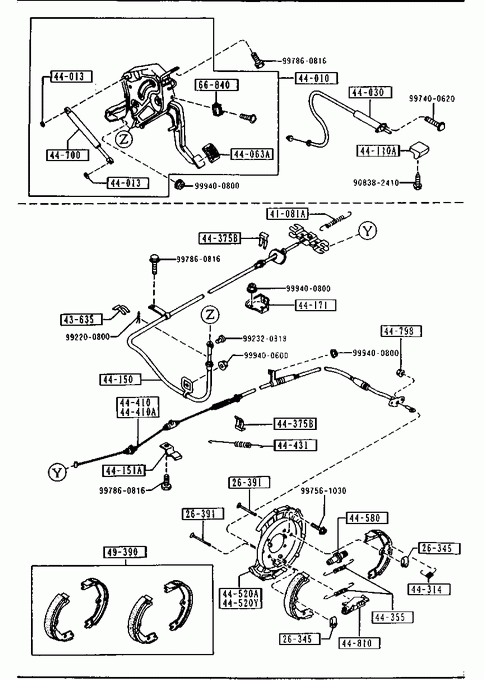

Parking Brake System
» 26345 SPRING,BRAKE SHOE

Part Number Qty. Specifications Price
J00126345 4
€ 2,14

» 26391 PIN,SHOE HOLD

Part Number Qty. Specifications Price
BR7026391 4
€ 2,65

» 41081A SPRING,RETURN

Part Number Qty. Specifications Price
011441081 1
€ 2,73

» 43635 CLIP,FLEXIBLE HOSE

Part Number Qty. Specifications Price
W02343635 1 A (W023-43-635A)
€ 1,95

» 44010 LEVER,PARKING BRAKE

Part Number Qty. Specifications Price
HG3044010E 1 AN (HG30-44-010F)

» 44013 WASHER

Part Number Qty. Specifications Price
H38044013 2
€ 1,18

» 44030 CABLE,RELEASE-BRAKE LEVER

Part Number Qty. Specifications Price
H38044030D 1 A (H380-44-030E)
- 931227
HD10** -110421
H38044030E 1 A (H380-44-030F)
931227 -
HD10**110421-

» 44063A PAD,PEDAL-BRAKE LEVER

Part Number Qty. Specifications Price
H26144063A 1

» 44110A LEVER,RELEASE-RR BRAKE

Part Number Qty. Specifications Price
H38044110A 1

» 44150 CABLE,PARKING-FRT

Part Number Qty. Specifications Price
HG3044150C 1

» 44151A CLIP,RELEASE LEVER

Part Number Qty. Specifications Price
H38044151 2

» 44171 BRACKET,CABLE

Part Number Qty. Specifications Price
H38044171 1

» 44314 SPRING,PULL OFF

Part Number Qty. Specifications Price
H38044314 2 - 930715
HD10** -110107

» 44355 SPRING,RETURN

Part Number Qty. Specifications Price
J00144355 4
€ 3,97

» 44375B CLIP

Part Number Qty. Specifications Price
011844375 3
€ 1,85

» 44410 CABLE(R),R.-PARK.

Part Number Qty. Specifications Price
H38044410G 1 A (H380-44-410H)
- 920801
HD10** -104684
H38044410H 1 920801 -
HD10**104684-

» 44410A CABLE(L),R.-PARK.

Part Number Qty. Specifications Price
H38044420G 1 A (H380-44-420H)
- 920801
HD10** -104684
H38044420H 1 920801 -
HD10**104684-

» 44431 SPRING,CABLE-REAR

Part Number Qty. Specifications Price
H38044431 2 AN (H380-44-431A)

» 44520A PLATE(R),BACK

Part Number Qty. Specifications Price
H38044510 1

» 44520Y PLATE(L),BACK

Part Number Qty. Specifications Price
H38044520 1

» 44580 ADJUSTER

Part Number Qty. Specifications Price
H26644350 2
€ 9,95

» 44700 DAMPER,PARKING LEVER

Part Number Qty. Specifications Price
H38044700 1

» 44798 NUT,FLANGE-RR PARK BRAKE

Part Number Qty. Specifications Price
H26644798A 4

» 44810 LEVER,OPERATION

Part Number Qty. Specifications Price
H26644810 2
€ 11,73

» 49390 SHOE SET,RR PARKING BRAKE

Part Number Qty. Specifications Price
J0Y14439ZA 1 NON ASBESTOS
- 930715
HD10** -110107 € 61,14
J0Y14439ZB 1 AN (H4Y0-44-39Z)
930715 -
HD10**110107-

» 66840 SWITCH,PARKING LAMP

Part Number Qty. Specifications Price
HG3066450 1

» 90720 SCREW

Part Number Qty. Specifications Price
997400620 1

» 90730 SCREW & WASHER

Part Number Qty. Specifications Price
908382410 1

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400600 1
€ 1,24

» 90906 NUT,FLANGE

Part Number Qty. Specifications Price
999400800 1
€ 1,54

» 99175 SCREW,TAPPING

Part Number Qty. Specifications Price
997860816 1
€ 1,73

» 99220 PIN

Part Number Qty. Specifications Price
992320818 1

» 99220A PIN,SNAP

Part Number Qty. Specifications Price
992200800 1
€ 2,21

» 99756 BOLT,FLANGE

Part Number Qty. Specifications Price
997561030 1
€ 2,68

Part Number	Qty.	Specifications	Price
W02343635	1	A (W023-43-635A)	€ 1,95

Part Number	Qty.	Specifications	Price
H38044030D	1	A (H380-44-030E) - 931227 HD10 -110421**
H38044030E	1	A (H380-44-030F) 931227 - HD10110421-**

Part Number	Qty.	Specifications	Price
H38044410G	1	A (H380-44-410H) - 920801 HD10 -104684**
H38044410H	1	920801 - HD10104684-**

Part Number	Qty.	Specifications	Price
H38044420G	1	A (H380-44-420H) - 920801 HD10 -104684**
H38044420H	1	920801 - HD10104684-**
