Mazda 929 HD 1991-07 Mazda Rear Differentials

Mazda parts catalog

Parts > Mazda 929 > 1991-07 > Chassis Axle Suspension,brake & Steering > Rear Differentials

Search by part number:

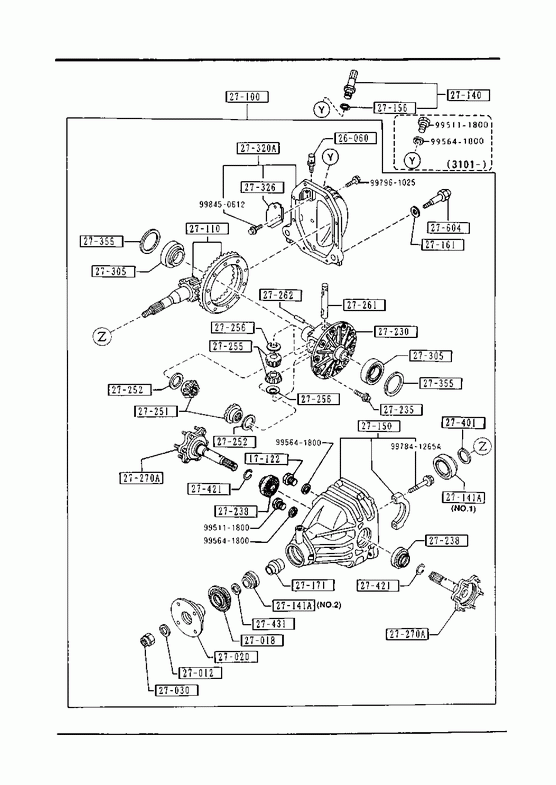

Rear Differentials

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
R00127165	1		€ 18,88

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
P04427120B	1		€ 82,78

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
R00427100C	1	A (R004-27-100D) - 921102 HD10 -105623**
R00427100D	1	921102 - HD10105623-**

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
P0A227110A	1	R=4.300

» 27140

PLATE,STOPPER

Part Number	Qty.	Specifications	Price
R00427140	1	- 930101 HD10 -106477**

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
060427220	1	ILLUST. NO.2	€ 34,45
M02527210	1	ILLUST. NO.1	€ 40,74

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
R00427150A	1

» 27156

GASKET

Part Number	Qty.	Specifications	Price
R00427156	1	- 930101 HD10 -106477**

» 27161

WASHER

Part Number	Qty.	Specifications	Price
R00127161A	2	AN (RA01-27-161) - 930401 HD10 -108062**
RA0127161	2	930401 - HD10108062-**

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
P01927171	1

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
P01927231A	1

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
P04327238	2	AN (P043-27-238A)	€ 5,74

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
P01927251B	2		€ 43,68

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
057827252	2	T=2.0MM	€ 5,24
057827253	2	T=2.1MM	€ 5,62
057827254	2	T=2.2MM	€ 5,49
P01627252	2	T=2.05MM	€ 4,76
P01627253	2	T=2.15MM	€ 4,94

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
P00527255A	2	AN (P005-27-255B)	€ 33,51

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
P01627256	2		€ 4,30

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
P00527261A	1		€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1		€ 1,96

» 27270A

SHAFT,OUTPUT

Part Number	Qty.	Specifications	Price
R00127270B	2

» 27305

BEARING

Part Number	Qty.	Specifications	Price
011827350A	2		€ 51,70

» 27320A

COVER,REAR

Part Number	Qty.	Specifications	Price
R00427320	1

» 27326

PLATE,BAFFLE

Part Number	Qty.	Specifications	Price
M00527326A	1		€ 2,25

» 27355

SHIM,ADJUST

Part Number	Qty.	Specifications	Price
R00127355	2	T=5.5MM	€ 11,31
R00127356	2	T=5.6MM	€ 11,21
R00127357	2	T=5.65MM	€ 11,21
R00127358	2	T=5.7MM	€ 11,21
R00127359	2	T=5.75MM	€ 11,31
R00127361	2	T=5.8MM	€ 10,99
R00127362	2	T=5.85MM	€ 11,21
R00127363	2	T=5.9MM	€ 11,21
R00127364	2	T=5.95MM	€ 11,21
R00127365	2	T=6MM	€ 10,77
R00127366	2	T=6.05MM	€ 11,21
R00127367	2	T=6.1MM	€ 10,77
R00127368	2	T=6.15MM	€ 10,77
R00127369	2	T=6.2MM	€ 10,77
R00127371	2	T=6.25MM	€ 6,59
R00127372	2	T=6.3MM	€ 6,59
R00127373	2	T=6.35MM	€ 6,59
R00127374	2	T=6.4MM	€ 6,59
R00127375	2	T=6.5MM	€ 6,59

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69

» 27421

CLIP

Part Number	Qty.	Specifications	Price
P01727421A	2		€ 1,67

» 27431

SPACER

Part Number	Qty.	Specifications	Price
P04427431A	1	AN (PA01-27-431) - 920401 HD10 -103415**	€ 6,77
PA0127431	1	920401 - HD10103415-**	€ 7,05

» 27604

BOLT

Part Number	Qty.	Specifications	Price
R00127604A	2

» 90720

SCREW

Part Number	Qty.	Specifications	Price
998450512	1		€ 0,62

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997841265A	1		€ 2,88

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14
