Mazda 929 HD 1991-07 Mazda Automatic Transmission Torque Converter, Oil Pump & Pipings

Mazda parts catalog

Parts > Mazda 929 > 1991-07 > Gasoline-engine V6-cylinder Transmissiom > Automatic Transmission Torque Converter, Oil Pump & Pipings

Search by part number:

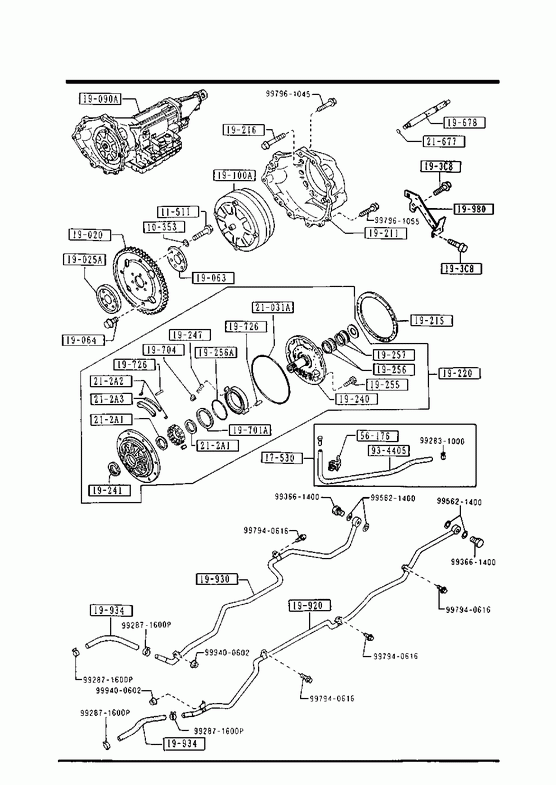

Automatic Transmission Torque Converter, Oil Pump & Pipings

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
029010353	6		€ 1,23

» 11511

BOLT,LOCK-FLYWHEEL

Part Number	Qty.	Specifications	Price
JF0111511	6		€ 2,57

» 17530

BREATHER,AIR

Part Number	Qty.	Specifications	Price
BV5521530	1

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
BV5519020	1

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
BV0119025A	1

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
BV0119063	1

» 19064

BOLT

Part Number	Qty.	Specifications	Price
364919064A	4		€ 1,19

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
BV5619090	1	- 920901 HD10 -104984**
BV5619090C	1	A (BV56-19-090D) 920901 - 921115 HD10104984-105805**
BV5619090D	1	A (BV56-19-090E) 921115 - 940120 HD10105805-110435**
BV5619090E	1	A (BV56-19-090F) 940120 - HD10110435-**

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
BV5519100	1

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
BV5619211	1	A (BV56-19-211A)

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
BV5619221	1	- 921115 HD10 -105805**	€ 7,62
BV6019221	1	NON ASBESTOS 921115 - HD10105805-**

» 19216

BOLT

Part Number	Qty.	Specifications	Price
BT4019216	10

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
BV5619220	1		€ 529,28

» 19240

COVER,OIL PUMP

Part Number	Qty.	Specifications	Price
BV5619240	1

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
BV1119241	1		€ 9,42

» 19247

SPRING

Part Number	Qty.	Specifications	Price
BV1119247	1

» 19255

BOLT

Part Number	Qty.	Specifications	Price
BV1119255	8

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
BV1119256	2		€ 6,86

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
BV1119242	1		€ 1,76

» 19257

RING,SEAL

Part Number	Qty.	Specifications	Price
BV1119257	2		€ 6,86

» 193C8

BOLT,BAFFLE PLATE

Part Number	Qty.	Specifications	Price
BV11193C8	3		€ 0,55

» 19678

SHAFT,INPUT

Part Number	Qty.	Specifications	Price
BV5621678	1	- 930401 HD10 -108062**
BV6521678	1	930401 - HD10108062-**

» 19701A

SEAL,RING

Part Number	Qty.	Specifications	Price
BV1119701	1		€ 6,31

» 19704

RETAINER

Part Number	Qty.	Specifications	Price
BV1119704	1

» 19726

PIVOT,ROLLER

Part Number	Qty.	Specifications	Price
BV1119726	2

» 19920

PIPE,OIL

Part Number	Qty.	Specifications	Price
BV5519920B	1	- 920701 HD10 -104433**
BV5519920C	1	C (BV55-19-920D) 920701 - 940301 HD10104433-110475**	€ 53,72
BV5519920D	1	A (BV55-19-920E) 940301 - HD10110475-**

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
BV5519930	1	C (BV55-19-930A) - 940301 HD10 -110475**	€ 36,65
BV5519930A	1	A (BV55-19-930B) 940301 - HD10110475-**	€ 36,65

» 19934

HOSE,OIL

Part Number	Qty.	Specifications	Price
BV5519933	2		€ 23,07

» 19980

BRACKET

Part Number	Qty.	Specifications	Price
BV5619980	1	AN (BV56-19-980A) - 940407 HD10 -110536**
BV5619980A	1	AN (BV91-19-980) 940407 - HD10110536-**

» 21031A

RING,'O'

Part Number	Qty.	Specifications	Price
BV1121031	1

» 212A1

SPRING,RING

Part Number	Qty.	Specifications	Price
BV11212A1	2

» 212A2

SEAL,SIDE

Part Number	Qty.	Specifications	Price
BV11212A2	2

» 212A3

SEAL,FLANGE

Part Number	Qty.	Specifications	Price
BV11212A3	1

» 21677

RING,'O'

Part Number	Qty.	Specifications	Price
BV0121677	1		€ 2,17

» 56176

HOLDER,JACK HANDLE

Part Number	Qty.	Specifications	Price
FB0156176	1		€ 2,47

» 90780

BOLT

Part Number	Qty.	Specifications	Price
993661400	1		€ 7,71

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400602	1		€ 1,28

» 934405

HOSE

Part Number	Qty.	Specifications	Price
9934405150	1	L=1.5M CUT IT TO USE	€ 113,89

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992871600P	1		€ 2,93

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992831000	1		€ 0,79

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621400	1		€ 3,08

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940616	1		€ 1,28

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961045	1		€ 2,52

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961055	1		€ 3,14
