Mazda 929 HC 1986-12 Mazda Rear Differentials 01/02 (NORMAL DIFF) 02/02 (OPTIONAL L.S.D.)

Mazda parts catalog

Parts > Mazda 929 > 1986-12 > Chassis Axle Suspension & Brake & Steering > Rear Differentials(2000cc & 2200cc)

Search by part number:

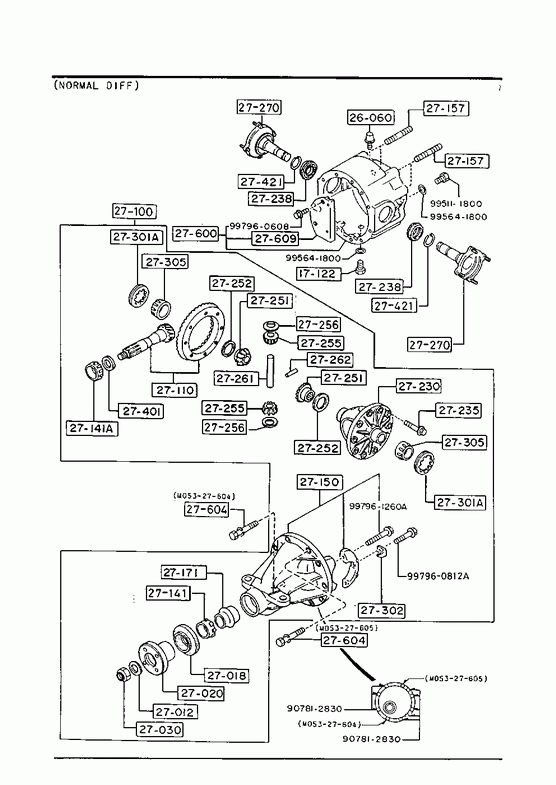

Rear Differentials(2000cc & 2200cc)

01/02 (NORMAL DIFF)
02/02 (OPTIONAL L.S.D.)

PLUG,MAGNET

Part Number	Qty.	Specifications	Price
081017121	1		€ 4,40

» 26060

BREATHER

Part Number	Qty.	Specifications	Price
073026060	1		€ 5,62

» 27012

WASHER

Part Number	Qty.	Specifications	Price
022327012	1		€ 4,04

» 27018

SEAL,OIL

Part Number	Qty.	Specifications	Price
M05427165	1		€ 11,94

» 27020

FLANGE,COMPANION

Part Number	Qty.	Specifications	Price
M05427120D	1	870501 - HC12104021-**	€ 29,67
M07927120A	1	A (M054-27-120D) - 870501 HC12 -104021**

» 27030

NUT,LOCK

Part Number	Qty.	Specifications	Price
022327030	1		€ 3,76

» 27100

DRIVING & DIFF.

Part Number	Qty.	Specifications	Price
M08327100A	1	A (M083-27-100B) (2200>W/O EGI>MANUAL TRANSMISSION) NORMAL DIFF
M08427100A	1	A (M084-27-100B) (2200>W/O EGI>AUTOMATIC TRANSMISSION) (2200>EGI>MANUAL TRANSMISSION) NORMAL DIFF
M08527100A	1	A (M085-27-100B) (2000>EGI>MANUAL TRANSMISSION) (2200>EGI>AUTOMATIC TRANSMISSION) NORMAL DIFF

» 27110

GEAR SET,FINAL

Part Number	Qty.	Specifications	Price
M03727110A	1	R=3.909 (2200>W/O EGI>AUTOMATIC TRANSMISSION) (2200>EGI>MANUAL TRANSMISSION) - 890501 HC12 -113447**
M03727110B	1	R=3.909 (2200>W/O EGI>AUTOMATIC TRANSMISSION) (2200>EGI>MANUAL TRANSMISSION) 890501 - HC12113447-**	€ 556,75
M06827110A	1	R=4.100 (2000>EGI>MANUAL TRANSMISSION) (2200>EGI>AUTOMATIC TRANSMISSION)	€ 415,39
M08327110A	1	R=3.727 (2200>W/O EGI>MANUAL TRANSMISSION)

» 27141

BEARING,PINION

Part Number	Qty.	Specifications	Price
075527210	1		€ 42,29

» 27141A

BEARING,PINION

Part Number	Qty.	Specifications	Price
M02527210	1		€ 40,74

» 27150

CARRIER,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M06927150B	1

» 27157

STUD,DIFF. CARRIER

Part Number	Qty.	Specifications	Price
M06927603	4

» 27171

PIECE,DISTANCE

Part Number	Qty.	Specifications	Price
M03527171	1		€ 10,94

» 27230

CASE,DIFF. GEAR

Part Number	Qty.	Specifications	Price
M06927231	1	NORMAL DIFF	€ 127,38
M08027230	1	AN (M081-27-230) OPTIONAL L.S.D. (2200>W/O EGI) - 871016 HC12 -107091**
M08127230	1	OPTIONAL L.S.D. (2200>W/O EGI) 871016 - 880901 HC12107091-112594**
M08227230	1	OPTIONAL L.S.D. (2200>W/O EGI) 880901 - HC12112594-**

» 27235

BOLT,RING GEAR

Part Number	Qty.	Specifications	Price
805127235	10	D=10.2MM	€ 2,03
805127236	10	D=10.0MM	€ 2,05

» 27238

SEAL,OIL

Part Number	Qty.	Specifications	Price
F00327238	2	A (F003-27-238A) - 880601 HC12 -112285**	€ 6,33
M0A227238	2	880601 - HC12112285-**	€ 5,04

» 27251

GEAR,DIFF.SIDE

Part Number	Qty.	Specifications	Price
M06927251	2	AN (M069-27-251A) NORMAL DIFF	€ 29,19
M08027251	2	A (M080-27-251A) OPTIONAL L.S.D. (2200>W/O EGI)

» 27252

WASHER,THRUST

Part Number	Qty.	Specifications	Price
029027252	2	T=2MM NORMAL DIFF	€ 3,29
029027253	2	T=2.1MM NORMAL DIFF	€ 3,64
029027254	2	T=2.2MM NORMAL DIFF	€ 3,33
029027256	2	T=2.05MM NORMAL DIFF	€ 4,66
029027259	2	T=2.15MM NORMAL DIFF	€ 3,33
M02027252	2	T=1.6MM OPTIONAL L.S.D. (2200>W/O EGI)
M02027253	2	T=1.8MM OPTIONAL L.S.D.

» 27255

PINION,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M02027255	4	C (M020-27-255A) OPTIONAL L.S.D. (2200>W/O EGI)
M02527255A	2	A (M025-27-255B) NORMAL DIFF	€ 27,87

» 27256

WASHER,THRUST

Part Number	Qty.	Specifications	Price
M02527256	2	T=0.8MM NORMAL DIFF	€ 3,36

» 27261

SHAFT,DIFF. PINION

Part Number	Qty.	Specifications	Price
M02027261	1	OPTIONAL L.S.D. (2200>W/O EGI)
M02527261A	1	NORMAL DIFF	€ 11,74

» 27262

Part Number	Qty.	Specifications	Price
011427262	1	NORMAL DIFF	€ 1,96

» 27270

YOKE,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M05527270	2	- 890101 HC12 -112787**	€ 54,72
M05527270A	2	A (M055-27-270B) 890101 - HC12112787-**	€ 54,72

» 27301A

SCREW,ADJUST

Part Number	Qty.	Specifications	Price
029027301	2		€ 4,85

» 27302

PLATE,LOCK

Part Number	Qty.	Specifications	Price
029027302	2		€ 1,83

» 27305

BEARING

Part Number	Qty.	Specifications	Price
022127350	2	OPTIONAL L.S.D. (2200>W/O EGI)	€ 40,08

» 27401

SPACER

Part Number	Qty.	Specifications	Price
022327401A	1	T=3.08MM	€ 6,29
022327402A	1	T=3.11MM	€ 5,13
022327403A	1	T=3.14MM	€ 6,29
022327404A	1	T=3.17MM	€ 6,92
022327405A	1	T=3.2MM	€ 6,09
022327406A	1	T=3.23MM	€ 6,92
022327407A	1	T=3.26MM	€ 5,60
022327408A	1	T=3.29MM	€ 6,78
022327409A	1	T=3.32MM	€ 5,60
022327411A	1	T=3.35MM	€ 6,92
022327412A	1	T=3.38MM	€ 5,60
022327413A	1	T=3.41MM	€ 6,78
022327414A	1	T=3.44MM	€ 5,60
022327415A	1	T=3.47MM	€ 5,69

» 27421

CLIP

Part Number	Qty.	Specifications	Price
M00527421	2		€ 1,52

» 27600

CASING,DIFFERENTIAL

Part Number	Qty.	Specifications	Price
M06927600A	1		€ 470,78

» 27604

BOLT

Part Number	Qty.	Specifications	Price
M05327604	1		€ 4,14
M05327605	1		€ 3,04

» 27609

PLATE,BAFFLE-DIFF CASING

Part Number	Qty.	Specifications	Price
M06927609	1

» 90781

BOLT & WASHER

Part Number	Qty.	Specifications	Price
907812830	1		€ 2,06

» 99201

WASHER

Part Number	Qty.	Specifications	Price
995641800	1		€ 1,18

» 99305

PLUG

Part Number	Qty.	Specifications	Price
995111800	1		€ 2,42

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960608	1		€ 0,40

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960812A	1		€ 1,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961260A	1		€ 2,80

Rear Differentials(2000cc & 2200cc)
