Dashboard Wiring Harnesses 01/02 02/02

Dashboard Wiring Harnesses |

Mazda parts catalog

Parts > Mazda 626WAGON > 1989-10 > Body Electronics > Dashboard Wiring Harnesses

Search by part number:

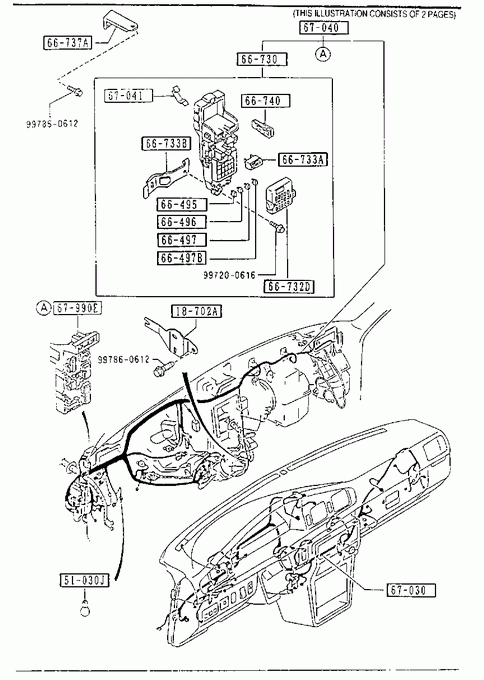

Dashboard Wiring Harnesses

01/02
02/02

BRACKET,RELAY

Part Number	Qty.	Specifications	Price
M00467B41	1	(2000>DOHC) 2200	€ 2,70

» 51030J

BULB

Part Number	Qty.	Specifications	Price
997016030	1	12V 3.4W	€ 1,72

» 66495

FUSE (10A)

Part Number	Qty.	Specifications	Price
997051110	2		€ 1,13

» 66496

FUSE (15A)

Part Number	Qty.	Specifications	Price
997051115	12		€ 1,15

» 66497

FUSE (20A)

Part Number	Qty.	Specifications	Price
997051120	5		€ 1,13

» 66497B

FUSE (30A)

Part Number	Qty.	Specifications	Price
997051130	2		€ 1,08

» 66730

BLOCK,FUSE

Part Number	Qty.	Specifications	Price
GR1166730	1	W/RUNNING LAMP GASOLINE	€ 206,08
GR1566730	1	W/O RUNNING LAMP GASOLINE	€ 249,97
GR2266730	1	EXC.GERMANY DIESEL	€ 207,97
GR2366730	1	GERMANY DIESEL	€ 315,98

» 66732D

COVER,FUSE BLOCK

Part Number	Qty.	Specifications	Price
GR1166731	1	FURUKAWA W/RUNNING LAMP GASOLINE
GR1166732	1	YAZAKI W/RUNNING LAMP GASOLINE
GR1566731	1	FURUKAWA W/O RUNNING LAMP GASOLINE	€ 8,93
GR1566732	1	YAZAKI W/O RUNNING LAMP GASOLINE	€ 9,37
GR2266731	1	FURUKAWA EXC.GERMANY DIESEL
GR2266732	1	YAZAKI EXC.GERMANY DIESEL
GR2366731	1	FURUKAWA GERMANY DIESEL	€ 9,35
GR2366732	1	YAZAKI GERMANY DIESEL	€ 9,35

» 66733A

BREAKER

Part Number	Qty.	Specifications	Price
H00166733	1		€ 14,48

» 66733B

BRACKET,FUSE BLOCK

Part Number	Qty.	Specifications	Price
GJ2267735B	1

» 66737A

BRACKET,JOINT BOX

Part Number	Qty.	Specifications	Price
GJ2167735B	1

» 66740

HOLDER,FUSE

Part Number	Qty.	Specifications	Price
H00166739	1		€ 11,10

» 67030

HARNESS,INSTRUMENT

Part Number	Qty.	Specifications	Price
GR2867030A	1	W/MODE CONT.-LEVER	€ 330,64
GR2967030A	1	W/MODE CONT.-ELECT.

» 67040

HARNESS,DASHBOARD

Part Number	Qty.	Specifications	Price
GR1267040A	1	AN (GR12-67-040B) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>1800) - 900701 GV1* -206996**
GR1267040B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>GASOLINE) 900701 - GV1206996-*
GR1367040A	1	AN (GR13-67-040B) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>2000>GASOLINE>AUTOMATIC TRANSMISSION) - 900701
GR1367040B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>2000>GASOLINE>AUTOMATIC TRANSMISSION) 900701 - GV1206996-*
GR1467040A	1	AN (GR14-67-040B) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>2000>GASOLINE>MANUAL TRANSMISSION) - 900701
GR1467040B	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>2000>GASOLINE>MANUAL TRANSMISSION) 900701 - GV1206996-*
GR1867040C	1	AN (GR18-67-040D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/EGI) - 900601 GV1* -206250**
GR1867040D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/EGI) 900601 - GV1206250-*
GR2267040B	1	AN (GR22-67-040C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>2000>DIESEL) - 900601 GV1* -206250**
GR2267040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>2000>DIESEL) EXC.GERMANY 900601 - GV1206250-*
GR2367040B	1	AN (GR23-67-040C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL GERMANY (ECE>W/O EGI>2000>DIESEL) - 900701 GV1* -206996**
GR2367040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>W/O EGI>2000>DIESEL) GERMANY 900701 - GV1206996-*
GR9767040C	1	AN (GR97-67-040D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2200) W/O RUNNING LAMP - 900601 GV1* -206250**
GR9767040D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2200) W/O RUNNING LAMP 900601 - GV1206250-*
GR9967040C	1	AN (GR99-67-040D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2200) W/RUNNING LAMP - 900601 GV1* -206250**
GR9967040D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2200) W/RUNNING LAMP 900601 - GV1206250-*
GS0467040B	1	AN (GS04-67-040C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>OHC) W/O RUNNING LAMP - 900601 GV1* -206250**	€ 772,32
GS0467040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>OHC) W/O RUNNING LAMP 900601 - GV1206250-*	€ 772,32
GS0667040B	1	AN (GS06-67-040C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>OHC) W/RUNNING LAMP - 900701 GV1* -206996**
GS0667040C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>OHC) W/RUNNING LAMP 900701 - GV1206996-*
GS0867040C	1	AN (GS08-67-040D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) W/O RUNNING LAMP - 900601 GV1* -206250**	€ 718,46
GS0867040D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) W/O RUNNING LAMP 900601 - GV1206250-*
GS0967040C	1	AN (GS09-67-040D) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) W/RUNNING LAMP - 900701 GV1* -206996**
GS0967040D	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) W/RUNNING LAMP 900701 - GV1206996-*

» 67041

BAND

Part Number	Qty.	Specifications	Price
GJ2167737	1

» 67990E

BRACKET,RELAY

Part Number	Qty.	Specifications	Price
GJ2267990C	1	(GASOLINE>LEADED FUEL)	€ 19,83

» 90780

BOLT

Part Number	Qty.	Specifications	Price
997200616	1		€ 1,41

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58
