Front & Rear Wiring Harnesses 01/03 (MATERIAL) 02/03 (1800)((2000)>(W/O EGI)) 03/03 ((2000)>(EGI))(2200)

Front & Rear Wiring Harnesses |

Mazda parts catalog

Parts > Mazda 626WAGON > 1989-10 > Body Electronics > Front & Rear Wiring Harnesses

Search by part number:

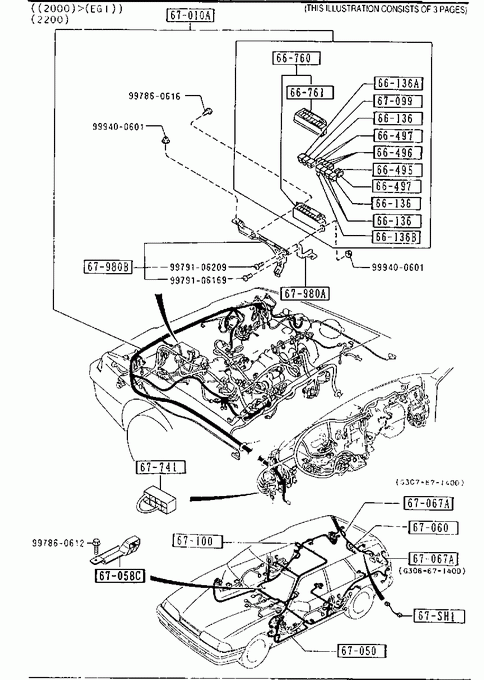

Front & Rear Wiring Harnesses(gasoline)

01/03 (MATERIAL)
02/03 (1800)((2000)>(W/O EGI))
03/03 ((2000)>(EGI))(2200)

FUSE (30A)

Part Number	Qty.	Specifications	Price
H11567099	4		€ 5,84

» 66136A

FUSE (40A)

Part Number	Qty.	Specifications	Price
H11667099	2	40A	€ 5,84

» 66136B

FUSE (80A)

Part Number	Qty.	Specifications	Price
H11767099	1	80A	€ 7,26

» 66495

FUSE (10A)

Part Number	Qty.	Specifications	Price
997051110	1		€ 1,13

» 66496

FUSE (15A)

Part Number	Qty.	Specifications	Price
997051115	3		€ 1,15

» 66497

FUSE (20A)

Part Number	Qty.	Specifications	Price
997051120	3		€ 1,13

» 66760

BLOCK,MAIN FUSE

Part Number	Qty.	Specifications	Price
GR1166760	1	1800 (2000>W/O EGI)	€ 96,31
GR9766760	1	W/O RUNNING LAMP (2000>W/EGI>OHC) (2000>W/EGI>DOHC>UNLEADED FUEL)	€ 73,27
GR9966760	1	(2000>W/EGI>DOHC>LEADED FUEL)	€ 73,98

» 66761

COVER,MAIN FUSE BLOCK

Part Number	Qty.	Specifications	Price
GR1166761	1	FURUKAWA 1800 (2000>W/O EGI)
GR1166762	1	YAZAKI 1800 (2000>W/O EGI)
GR9766761	1	FURUKAWA W/O RUNNING LAMP (2000>W/EGI>OHC) (2000>W/EGI>DOHC>UNLEADED FUEL) 2200
GR9766762	1	YAZAKI W/O RUNNING LAMP (2000>W/EGI>OHC) (2000>W/EGI>DOHC>UNLEADED FUEL) 2200	€ 15,47
GR9966761	1	YAZAKI (2000>W/EGI>DOHC>LEADED FUEL)
GR9966762	1	YAZAKI (2000>W/EGI>DOHC>LEADED FUEL)

» 67010A

HARNESS,FRONT

Part Number	Qty.	Specifications	Price
GR1267010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (ECE>GASOLINE>W/O EGI) EXC.GERMANY
GR1867010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/O A.LOCK BRAKE>EXC.GERMANY) (ECE>GASOLINE>W/EGI)
GR2067010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL W/A.LOCK BRAKE (ECE>GASOLINE>W/EGI)
GR9767010B	1	AN (GR97-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/O RUNNING LAMP>W/O A.LOCK BRAKE) (SWITZ.>2200) - 900301	€ 610,83
GR9767010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/O RUNNING LAMP>W/O A.LOCK BRAKE) (SWITZ.>2200) 900301 - GV1203608-*	€ 610,83
GR9967010B	1	AN (GR99-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/RUNNING LAMP>W/O A.LOCK BRAKE) (SWITZ.>2200) - 900301
GR9967010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/RUNNING LAMP>W/O A.LOCK BRAKE) (SWITZ.>2200) 900301 - GV1203608-*
GS0467010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>OHC) (W/O RUNNING LAMP>W/O A.LOCK BRAKE)	€ 530,14
GS0667010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>OHC) (W/RUNNING LAMP>W/O A.LOCK BRAKE)
GS0867010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) (W/O RUNNING LAMP>W/O A.LOCK BRAKE)	€ 581,05
GS0967010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) (W/RUNNING LAMP>W/O A.LOCK BRAKE)
GS1067010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) (W/O RUNNING LAMP>W/A.LOCK BRAKE)	€ 547,30
GS1167010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>DOHC) (W/RUNNING LAMP>W/A.LOCK BRAKE)
GS1867010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (SWITZ.>2000>OHC) (W/O RUNNING LAMP>W/A.LOCK BRAKE)	€ 530,14
GS2067010A	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (2000>W/EGI>OHC) (W/RUNNING LAMP>W/A.LOCK BRAKE)
GS3967010B	1	AN (GS39-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/O RUNNING LAMP>W/A.LOCK BRAKE) (SWITZ.>2200) - 900301	€ 530,14
GS3967010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/O RUNNING LAMP>W/A.LOCK BRAKE) (SWITZ.>2200) 900301 - GV1203608-*	€ 530,14
GS4067010B	1	AN (GS40-67-010C) REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/RUNNING LAMP>W/A.LOCK BRAKE) (SWITZ.>2200) - 900301
GS4067010C	1	REFER TO THE CHART IN THE ILLUSTRATION FOR APPLICATION DETAIL (W/RUNNING LAMP>W/A.LOCK BRAKE) (SWITZ.>2200) 900301 - GV1203608-*

» 67050

HARNESS,REAR

Part Number	Qty.	Specifications	Price
GA9E67050	1	AN (GA9E-67-050A) W/O A.LOCK BRAKE (OHC>4WD) - 910218 GV1* -215544**
GA9E67050A	1	W/O A.LOCK BRAKE (OHC>4WD) 910218 - GV1215544-*
GA9F67050A	1	AN (GA9F-67-050B) W/A.LOCK BRAKE (OHC>4WD) - 910218 GV1* -215544**
GA9F67050B	1	W/A.LOCK BRAKE (OHC>4WD) 910218 - GV1215544-*
GM9767050G	1	AN (GM97-67-050H) W/O A.LOCK BRAKE (OHC>2WD) - 900820 GV1* -209241**	€ 472,49
GM9767050H	1	AN (GM97-67-050J) W/O A.LOCK BRAKE (OHC>2WD) 900820 - 910311 GV1209241-216211*
GM9767050J	1	W/O A.LOCK BRAKE (OHC>2WD) 910311 - GV1216211-*
GN2667050F	1	AN (GN26-67-050G) W/O A.LOCK BRAKE DOHC - 900917 GV1* -210100**
GN2667050G	1	AN (GN26-67-050H) W/O A.LOCK BRAKE DOHC 900917 - 910218 GV1210100-215544*
GN2667050H	1	W/O A.LOCK BRAKE DOHC 910218 - GV1215544-*
GN2767050G	1	AN (GN27-67-050H) W/A.LOCK BRAKE (OHC>2WD) DOHC - 900820 GV1* -209241**	€ 676,42
GN2767050H	1	AN (GN27-67-050J) W/A.LOCK BRAKE (OHC>2WD) DOHC 900820 - 910311 GV1209241-216211*
GN2767050J	1	W/A.LOCK BRAKE (OHC>2WD) DOHC 910311 - GV1216211-*	€ 703,75

» 67058C

BRACKET,HARNESS

Part Number	Qty.	Specifications	Price
KA2167058	1	W/A.LOCK BRAKE (OHC>2WD)	€ 2,70

» 67060

HARNESS NO.2,REAR

Part Number	Qty.	Specifications	Price
G30667060H	1	AN (G306-67-060J) - 900701 GV1* -206996**	€ 55,01
G30667060J	1	900701 - GV1206996-*	€ 57,23

» 67067A

CORD,BACK WINDOW DEFOG.

Part Number	Qty.	Specifications	Price
G30667140D	1	A (G306-67-140E)	€ 15,30
G30767140D	1

» 67099

LINK,FUSIBLE

Part Number	Qty.	Specifications	Price
FB0167099	2	60A	€ 5,76

» 67100

HARNESS,ROOM LAMP

Part Number	Qty.	Specifications	Price
GK5967100D	1	W/O SUN-RF	€ 30,67
GK6067100D	1	A (GK60-67-100E) SUNROOF

» 67741

CONNECTOR,SHORT

Part Number	Qty.	Specifications	Price
GR2867741	1	2WD

» 67980A

BRACKET

Part Number	Qty.	Specifications	Price
GJ2167982B	1	W/EGI	€ 3,25

» 67980B

BRACKET,MAIN FUSE CASE

Part Number	Qty.	Specifications	Price
GJ2167980D	1	W/EGI	€ 19,01

» 67SH1

CORD,SHORT

Part Number	Qty.	Specifications	Price
GS7767SH0A	1		€ 13,26

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9979106169	1		€ 0,32

» 90780

BOLT

Part Number	Qty.	Specifications	Price
9979106209	1		€ 0,63

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400601	1		€ 1,28

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860612	1		€ 1,58

» 99175

SCREW,TAPPING

Part Number	Qty.	Specifications	Price
997860616	1		€ 1,54

Front & Rear Wiring Harnesses(gasoline)
