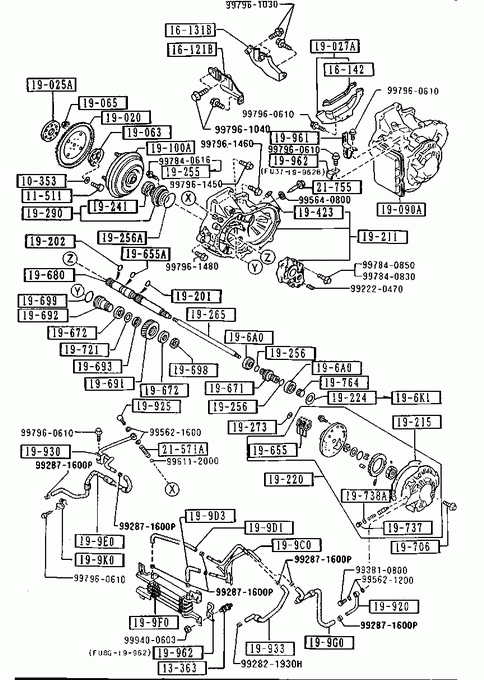

Torque Converter,oil Pump & Pipings(automatic Transmission 4-speed)

WASHER,PLAIN

Part Number	Qty.	Specifications	Price
029010353	6		€ 1,23

» 11511

BOLT,LOCK-FLYWHEEL

Part Number	Qty.	Specifications	Price
F80111511	6		€ 3,21

» 13363

RUBBER,INSULATION

Part Number	Qty.	Specifications	Price
N23613363	4		€ 4,78

» 16121B

PLATE,GUSSET-FRONT

Part Number	Qty.	Specifications	Price
FU38190A0	1

» 16131B

PLATE,GUSSET-REAR

Part Number	Qty.	Specifications	Price
F85516130	1

» 16142

COVER,DUST

Part Number	Qty.	Specifications	Price
FE5616142	1		€ 5,12

» 19020

PLATE,DRIVE

Part Number	Qty.	Specifications	Price
FU0119020	1		€ 114,71

» 19025A

ADAPTER,DRIVE PLATE

Part Number	Qty.	Specifications	Price
FT0519025	1		€ 26,25

» 19027A

COVER,UNDER

Part Number	Qty.	Specifications	Price
FU3819060B	1

» 19063

PLATE,BACKING

Part Number	Qty.	Specifications	Price
FU0619063	1

» 19065

NUT

Part Number	Qty.	Specifications	Price
FU0119065	4	AN (FU51-19-065)	€ 1,29

» 19090A

AUTOMATIC T/MISSION CPT.

Part Number	Qty.	Specifications	Price
FU4K19090D	1	A (FU4K-19-090E) - 900101 GV1* -202565**
FU4K19090E	1	C (FU4K-19-090F) 900101 - 900927 GV1202565-210462*
FU4K19090F	1	A (FU4K-19-090G) 900927 - 901105 GV1210462-211673*
FU4K19090G	1	A (FU4K-19-090H) 901105 - GV1211673-*

» 19100A

CONVERTER,TORQUE

Part Number	Qty.	Specifications	Price
FU3419100D	1	A (FU34-19-100E) - 901105 GV1* -211673**
FU3419100F	1	AN (FU34-19-100G) 901105 - GV1211673-*

» 19201

RING,'O'

Part Number	Qty.	Specifications	Price
FU0119201	1	AN (FU01-19-201A) - 900901 GV1* -209618**	€ 2,25
FU0119201A	1	900901 - GV1209618-*	€ 2,35

» 19202

SEAL,'O'RING

Part Number	Qty.	Specifications	Price
FU5019202A	1		€ 2,21

» 19211

HOUSING,CONVERTER

Part Number	Qty.	Specifications	Price
FU381919X	1

» 19215

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
BN9719705	1	NON ASBESTOS 900101 - GV1202565-*	€ 7,48
FU0119705A	1	ASBESTOS - 900101 GV1* -202565**	€ 3,94

» 19220

PUMP,OIL

Part Number	Qty.	Specifications	Price
FU5119700B	1	AN (FU51-19-700C) - 900125 GV1* -202812**	€ 499,84
FU5119700D	1	900125 - GV1202812-*	€ 499,84

» 19224

SHIM

Part Number	Qty.	Specifications	Price
FU0119203A	1	T=0.5MM - 910901 GV1* -224121**	€ 4,37
FU0119214A	1	T=0.1MM - 910901 GV1* -224121**	€ 2,51
FU0119215A	1	T=0.12MM - 910901 GV1* -224121**	€ 3,08
FU0119216A	1	T=0.14MM - 910901 GV1* -224121**	€ 2,41
FU0119217A	1	T=0.16MM - 910901 GV1* -224121**	€ 2,41
FU0119218A	1	T=0.18MM - 910901 GV1* -224121**	€ 1,43
FU0119219A	1	T=0.2MM - 910901 GV1* -224121**	€ 2,46

» 19241

SEAL,OIL

Part Number	Qty.	Specifications	Price
FU0119241A	1		€ 9,84

» 19255

BOLT

Part Number	Qty.	Specifications	Price
FU9A19255	8	A (FU9A-19-255A) 910701 - GV1221432-*	€ 0,53

» 19256

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119212A	2	AN (FU01-19-212B) - 900401 GV1* -204490**	€ 3,21
FU0119212B	2	900401 - GV1204490-*	€ 3,34

» 19256A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119242	1	AN (FU01-19-242A) - 900901 GV1* -209618**	€ 5,69
FU0119242A	1	900901 - GV1209618-*	€ 5,92

» 19265

SHAFT,OIL PUMP

Part Number	Qty.	Specifications	Price
FU0119761A	1	AN (FU01-19-761B) - 900501 GV1* -205412**	€ 20,69
FU0119761B	1	A (FU01-19-761C) 900501 - 900901 GV1205412-209618*	€ 17,66
FU0119761C	1	900901 - GV1209618-*	€ 21,52

» 19273

RING,SNAP

Part Number	Qty.	Specifications	Price
FU5019755	1	AN (FU50-19-755A) - 900401 GV1* -204490**	€ 0,88
FU5019755A	1	900401 - GV1204490-*	€ 1,00

» 19290

COVER,BEARING

Part Number	Qty.	Specifications	Price
FU31192A0	1	- 911101 GV1* -225402**	€ 99,64
FU9A192A0A	1	AN (FU9A-19-2A0B) 911101 - GV1225402-*	€ 84,74

» 19423

PLUG

Part Number	Qty.	Specifications	Price
FU0119423	1	- 891201 GV1* -201331**
FU6019423	1	A (FU60-19-423A) 891201 - 900101 GV1201331-202565*
FU6019423A	1	900101 - GV1202565-*	€ 1,16

» 19655

RING,SEAL

Part Number	Qty.	Specifications	Price
FU0119701A	4	AN (FU01-19-701B) - 900125 GV1* -202812**	€ 6,88
FU0119701B	4	AN (FU01-19-701C) 900125 - GV1202812-*	€ 6,88

» 19655A

RING,SEAL

Part Number	Qty.	Specifications	Price
FU5019762	1	AN (FU50-19-762A) - 900401 GV1* -204490**	€ 3,24
FU5019762A	1	900401 - GV1204490-*	€ 3,37

» 19671

GEAR,OUTPUT

Part Number	Qty.	Specifications	Price
FU0119211A	1	AN (FU01-19-211B) - 900501 GV1* -205412**	€ 61,93
FU0119211B	1	900501 - GV1205412-*	€ 61,93

» 19672

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU31196B0	2	AN (FU31-19-6B0A) - 900301 GV1* -203608**	€ 13,76
FU31196B0A	2	900301 - GV1203608-*	€ 18,93

» 19680

SHAFT,TURBINE

Part Number	Qty.	Specifications	Price
FU3119270B	1	AN (FU31-19-270C) - 900201 GV1* -202950**
FU3119270C	1	AN (FU31-19-270D) 900201 - 900501 GV1202950-205412*
FU3119270D	1	900501 - GV1205412-*	€ 80,02

» 19691

GEAR,IDLE

Part Number	Qty.	Specifications	Price
FU3119261	1	AN (FU31-19-261A) - 900901 GV1* -209618**
FU3119261A	1	900901 - GV1209618-*	€ 58,51

» 19692

SHAFT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FU3119262	1	AN (FU31-19-262A) - 900101 GV1* -202565**
FU3119262A	1	900101 - GV1202565-*	€ 23,21

» 19693

SPACER,IDLE GEAR

Part Number	Qty.	Specifications	Price
FU3119263	1	AN (FU31-19-263A) - 900901 GV1* -209618**
FU3119263A	1	900901 - 910901 GV1209618-224121*

» 19698

NUT,IDLE GEAR

Part Number	Qty.	Specifications	Price
FU3119264	1	AN (FU31-19-264A) - 900101 GV1* -202565**
FU3119264A	1	AN (GF01-19-264) 900101 - GV1202565-*	€ 3,65

» 19699

RING,'O'

Part Number	Qty.	Specifications	Price
FU3119266	1		€ 1,76

» 196A0

BEARING,ROLLER

Part Number	Qty.	Specifications	Price
FU01196A0	2	- 910901 GV1* -224121**	€ 19,61
FU9A196A0	2	910901 - GV1224121-*	€ 19,82

» 196K1

SHIM,OUTPUT GEAR

Part Number	Qty.	Specifications	Price
FU31196M1	1	T=0.35MM 910901 - GV1224121-*	€ 5,33
FU31196M2	1	T=0.4MM 910901 - GV1224121-*	€ 5,33
FU31196M3	1	T=0.45MM 910901 - GV1224121-*	€ 5,33
FU9A196J8	1	T=0.5MM 910901 - GV1224121-*	€ 3,14
FU9A196J9	1	T=0.55MM 910901 - GV1224121-*	€ 3,76
FU9A196K1	1	T=0.6MM 910901 - GV1224121-*	€ 3,76
FU9A196K2	1	T=0.65MM 910901 - GV1224121-*	€ 3,76
FU9A196K3	1	T=0.7MM 910901 - GV1224121-*	€ 3,84
FU9A196K4	1	T=0.75MM 910901 - GV1224121-*	€ 3,76
FU9A196K5	1	T=0.8MM 910901 - GV1224121-*	€ 3,76
FU9A196K6	1	T=0.85MM 910901 - GV1224121-*	€ 3,76
FU9A196K7	1	T=0.9MM 910901 - GV1224121-*	€ 3,76
FU9A196K8	1	T=0.95MM 910901 - GV1224121-*	€ 3,92
FU9A196K9	1	T=1.0MM 910901 - GV1224121-*	€ 3,76
FU9A196L1	1	T=1.05MM 910901 - GV1224121-*	€ 3,76
FU9A196L2	1	T=1.1MM 910901 - GV1224121-*	€ 3,92
FU9A196L3	1	T=1.15MM 910901 - GV1224121-*	€ 3,76
FU9A196L4	1	T=1.2MM 910901 - GV1224121-*	€ 3,76
FU9A196L5	1	T=1.25MM 910901 - GV1224121-*	€ 3,76
FU9A196M4	1	T=0.375MM 911001 - GV1224943-*	€ 3,98
FU9A196M5	1	T=0.425MM 911001 - GV1224943-*	€ 3,90
FU9A196M6	1	T=0.475MM 911001 - GV1224943-*	€ 3,90
FU9A196M7	1	T=0.525MM 911001 - GV1224943-*	€ 4,06
FU9A196M8	1	T=0.575MM 911001 - GV1224943-*	€ 3,90
FU9A196M9	1	T=0.625MM 911001 - GV1224943-*	€ 3,90
FU9A196N1	1	T=0.675MM 911001 - GV1224943-*	€ 3,90
FU9A196N2	1	T=0.725MM 911001 - GV1224943-*	€ 3,98
FU9A196N3	1	T=0.775MM 911001 - GV1224943-*	€ 3,90
FU9A196N4	1	T=0.825MM 911001 - GV1224943-*	€ 3,90
FU9A196N5	1	T=0.875MM 911001 - GV1224943-*	€ 4,06
FU9A196N6	1	T=0.925MM 911001 - GV1224943-*	€ 3,90
FU9A196N7	1	T=0.975MM 911001 - GV1224943-*	€ 3,90
FU9A196N8	1	T=1.025MM 911001 - GV1224943-*	€ 3,90
FU9A196N9	1	T=1.075MM 911001 - GV1224943-*	€ 3,90
FU9A196P1	1	T=1.125MM 911001 - GV1224943-*	€ 3,90
FU9A196P2	1	T=1.175MM 911001 - GV1224943-*	€ 3,90
FU9A196P3	1	T=1.225MM 911001 - GV1224943-*	€ 3,90
FU9A196P4	1	T=1.275MM 911001 - GV1224943-*	€ 3,90
FU9A196P5	1	T=1.325MM 911001 - GV1224943-*	€ 3,90
FU9A196P6	1	T=1.375MM 911001 - GV1224943-*	€ 3,90

» 19706

BOLT

Part Number	Qty.	Specifications	Price
FU0119706A	10	AN (FU01-19-706B) - 900901 GV1* -209618**
FU0119706B	10	900901 - GV1209618-*	€ 0,92

» 19721

SHIM

Part Number	Qty.	Specifications	Price
FU3119272	1	T=0.12MM - 910901 GV1* -224121**	€ 1,18
FU3119273	1	T=0.14MM - 910901 GV1* -224121**	€ 1,59
FU3119274	1	T=0.16MM - 910901 GV1* -224121**	€ 1,59
FU3119275	1	T=0.2MM - 910901 GV1* -224121**
FU3119276	1	T=0.5MM - 910901 GV1* -224121**
FU3119277	1	T=0.1MM - 910901 GV1* -224121**	€ 1,41
FU3119278	1	T=0.18MM - 910901 GV1* -224121**
FU9A192F5	1	T=4.540MM 910901 - GV1224121-*	€ 3,84
FU9A192F6	1	T=4.575MM 910901 - GV1224121-*	€ 3,76
FU9A192F7	1	T=4.610MM 910901 - GV1224121-*	€ 3,76
FU9A192F8	1	T=4.645MM 910901 - GV1224121-*	€ 3,84
FU9A192F9	1	T=4.680MM 910901 - GV1224121-*	€ 3,84
FU9A192G1	1	T=4.715MM 910901 - GV1224121-*	€ 3,92
FU9A192G2	1	T=4.750MM 910901 - GV1224121-*	€ 3,92
FU9A192G3	1	T=4.785MM 910901 - GV1224121-*	€ 3,84
FU9A192G4	1	T=4.820MM 910901 - GV1224121-*	€ 3,84
FU9A192G5	1	T=4.855MM 910901 - GV1224121-*	€ 3,84
FU9A192G6	1	T=4.890MM 910901 - GV1224121-*	€ 3,92
FU9A192G7	1	T=4.925MM 910901 - GV1224121-*	€ 3,92
FU9A192G8	1	T=4.960MM 910901 - GV1224121-*	€ 3,76
FU9A192G9	1	T=4.995MM 910901 - GV1224121-*	€ 3,92
FU9A192H1	1	T=5.030MM 910901 - GV1224121-*	€ 3,92
FU9A192H2	1	T=5.065MM 910901 - GV1224121-*	€ 3,92
FU9A192H3	1	T=5.100MM 910901 - GV1224121-*	€ 3,92
FU9A192H4	1	T=5.135MM 910901 - GV1224121-*	€ 3,84
FU9A192H5	1	T=5.170MM 910901 - GV1224121-*	€ 3,84
FU9A192H6	1	T=5.205MM 910901 - GV1224121-*	€ 3,84
FU9A192H7	1	T=5.240MM 910901 - GV1224121-*	€ 3,84
FU9A192H8	1	T=5.275MM 910901 - GV1224121-*	€ 3,84
FU9A192H9	1	T=5.310MM 910901 - GV1224121-*	€ 3,84

» 19737

BOLT

Part Number	Qty.	Specifications	Price
FU5119737A	1	L=11.4MM - 900125 GV1* -202812**
FU5119737B	1	L=12.63MM 900125 - GV1202812-*

» 19738A

GASKET,OIL PUMP

Part Number	Qty.	Specifications	Price
FU0219738	1	AN (FU02-19-738A) - 900125 GV1* -202812**
FU0219738A	1	900125 - GV1202812-*	€ 1,65

» 19764

SUPPORTER,BEARING-OUTPUT

Part Number	Qty.	Specifications	Price
FU3219764	1	AN (FU32-19-764A) - 900301 GV1* -203608**	€ 6,58
FU3219764A	1	900301 - GV1203608-*	€ 6,71

» 19920

PIPE,OIL

Part Number	Qty.	Specifications	Price
FU3119920B	1	A (FU31-19-920C)	€ 10,96

» 19925

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
FU3119925	1	AN (FU31-19-925A) - 900201 GV1* -202950**	€ 2,39
FU3119925A	1	900201 - GV1202950-*	€ 2,49

» 19930

PIPE,OIL

Part Number	Qty.	Specifications	Price
FU3419930B	1	C (FU34-19-930C) - 900927 GV1* -210462**
FU3419930C	1	A (FU34-19-930D) 900927 - GV1210462-*

» 19933

HOSE,OIL

Part Number	Qty.	Specifications	Price
FU31199H0A	1	A (FU31-19-9H0B)	€ 22,75

» 19961

CLIP,THROT.CABLE

Part Number	Qty.	Specifications	Price
FU3119961A	1	AN (FU31-19-961B) - 900901 GV1* -209618**	€ 1,13
FU3119961B	1	900901 - GV1209618-*

» 19962

CLIP

Part Number	Qty.	Specifications	Price
FU3119962A	1	AN (FU31-19-962B) - 900901 GV1* -209618**	€ 1,64
FU3119962B	1	900901 - GV1209618-*	€ 1,64
FU8G19962	1	900701 - GV1206996-*

» 199C0

PIPE,OIL

Part Number	Qty.	Specifications	Price
FU31199C0B	1	A (FU31-19-9C0C)	€ 24,38

» 199D1

HOSE,OIL

Part Number	Qty.	Specifications	Price
FU31199D1A	1		€ 8,94

» 199D3

HOSE,OIL

Part Number	Qty.	Specifications	Price
FU31199D3A	1		€ 7,83

» 199E0

HOSE,OIL

Part Number	Qty.	Specifications	Price
FU31199E0D	1	- 900927 GV1* -210462**	€ 25,01
FU76199E0A	1	900927 - GV1210462-*	€ 21,83

» 199F0

COOLER,OIL

Part Number	Qty.	Specifications	Price
FU31199F0C	1	- 900701 GV1* -206996**	€ 148,97
FU8G199F0A	1	AN (FU8G-19-9F0B) 900701 - GV1206996-*	€ 216,06

» 199G0

HOSE,OIL

Part Number	Qty.	Specifications	Price
FU31199G0B	1	A (FU31-19-9G0C)	€ 33,13

» 199K0

CLIP

Part Number	Qty.	Specifications	Price
FU31199K0	1

» 21571A

SPRING,PRESSURE HOLD

Part Number	Qty.	Specifications	Price
FU3121571A	1		€ 1,02

» 21755

BOLT,STOPPER

Part Number	Qty.	Specifications	Price
FU5021755	1

» 90906

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400603	1		€ 2,05

» 99222

PIN,SPRING

Part Number	Qty.	Specifications	Price
992220470	1		€ 1,50

» 99274

CLIP

Part Number	Qty.	Specifications	Price
992871600P	1		€ 2,93

» 99281

CLAMP,HOSE

Part Number	Qty.	Specifications	Price
992821930H	1		€ 1,46

» 99369

BOLT,CONNECTOR

Part Number	Qty.	Specifications	Price
993810800	1		€ 2,65

» 99520

BALL

Part Number	Qty.	Specifications	Price
996112000	1		€ 1,85

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621200	1		€ 1,21

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995621600	1		€ 1,65

» 99560

GASKET

Part Number	Qty.	Specifications	Price
995640800	1		€ 0,62

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840616	1		€ 1,50

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840830	1		€ 2,57

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997840850	1		€ 2,24

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997960610	1		€ 0,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961030	1		€ 2,69

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961040	1		€ 2,37

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961450	1		€ 3,32

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961460	1		€ 2,85

» 99756

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961480	1		€ 3,23

Torque Converter,oil Pump & Pipings(automatic Transmission 4-speed)
