Engine Electrical System 01/02 (2WS) 02/02 (4WS)

Engine Electrical System |

Mazda parts catalog

Parts > Mazda 626 > 1989-08 > Gasoline-engine Supplement > Engine Electrical System

Search by part number:

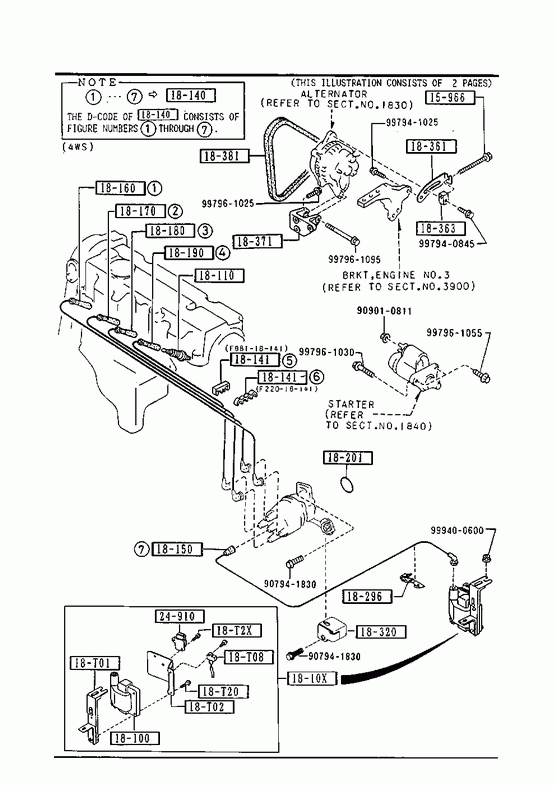

Engine Electrical System(gasoline)(2200cc)

01/02 (2WS)
02/02 (4WS)

BOLT,ADJUST

Part Number	Qty.	Specifications	Price
FE3815966	1		€ 9,78

COIL,IGNITION

Part Number	Qty.	Specifications	Price
F2851810XA	1	MITSUBISHI 2WS	€ 134,00
F2861810XA	1	HANSHIN 2WS	€ 139,41
JF0118100B	1	MITSUBISHI 4WS	€ 115,40

COIL & IGNITER

Part Number	Qty.	Specifications	Price
F2871810X	1	4WS	€ 391,70

PLUG,SPARK

Part Number	Qty.	Specifications	Price
F20318110	4	ZFR5A11 NGK OPTION HOT TYPE - 910301 GD -627577	€ 3,35
F20418110	4	QJ16CR11 ND OPTION HOT TYPE - 910301 GD -627577
F20518110	4	ZFR7A11 NGK OPTION COLD TYPE - 910301 GD -627577	€ 3,25
F20618110	4	QJ22CR11 ND OPTION COLD TYPE - 910301 GD -627577
F28518110	4	ZFR6F-11 NGK STD.	€ 3,35
F28618110	4	KJ20CR-11 ND STD.	€ 3,35
F28718110	4	ZFR5F11 NGK OPTION HOT TYPE 910301 - GD627577-	€ 5,12
F28818110	4	KJ16CR11 ND OPTION HOT TYPE 910301 - GD627577-	€ 3,25
F28918110	4	ZFR7F11 NGK OPTION COLD TYPE 910301 - GD627577-	€ 3,35
F29018110	4	KJ22CR11 ND OPTION COLD TYPE 910301 - GD627577-

CORD SET,HI.TENSION

Part Number	Qty.	Specifications	Price
8BGH18140	1	AN (8BGH-18-140A) 2WS - 891201 GD -522997	€ 117,93
8BGH18140A	1	2WS 891201 - GD522997-	€ 117,93
8BGK18140	1	AN (8BGK-18-140A) 4WS - 891201 GD -522997
8BGK18140A	1	4WS 891201 - GD522997-	€ 88,00

SUPPORTER

Part Number	Qty.	Specifications	Price
F20118141	2	2WS	€ 2,53
F22018141	1		€ 1,94
F8B118141	1		€ 2,88

CORD,HIGH TENSION

Part Number	Qty.	Specifications	Price
F28518150	1	AN (F285-18-150A) - 891201 GD -522997	€ 9,77
F28518150A	1	891201 - GD522997-	€ 10,17

CORD NO.1,HI.TENSION

Part Number	Qty.	Specifications	Price
F20118160D	1	2WS	€ 23,67
F22018160C	1	4WS	€ 24,86

CORD NO.2,HI.TENSION

Part Number	Qty.	Specifications	Price
F20118170C	1	2WS	€ 23,67
F22018170C	1	4WS	€ 24,86

CORD NO.3,HI.TENSION

Part Number	Qty.	Specifications	Price
F20118180C	1	2WS	€ 20,55
F22018180C	1	4WS	€ 21,14

CORD NO.4,HI.TENSION

Part Number	Qty.	Specifications	Price
F20118190C	1	2WS	€ 20,55
F22018190C	1	4WS	€ 20,72

RING,'O'

Part Number	Qty.	Specifications	Price
F20118201	1		€ 4,13

CLIP

Part Number	Qty.	Specifications	Price
F20118297A	1		€ 2,33

BRACKET

Part Number	Qty.	Specifications	Price
F28718281	1	4WS	€ 4,90

STRAP,ALTERNATOR

Part Number	Qty.	Specifications	Price
F20118361	1		€ 11,08

SPACER,STRAP

Part Number	Qty.	Specifications	Price
F20118363	1		€ 8,10

BRACKET,ALTERNATOR

Part Number	Qty.	Specifications	Price
F20118371	1		€ 31,59

BELT'V'

Part Number	Qty.	Specifications	Price
F26218381A	1	L=765 3PK BANDO	€ 8,56
F2F618381	1	L=765 3PK MITSUBOSHI	€ 8,56

BAND,IGNITION COIL

Part Number	Qty.	Specifications	Price
F22018T01B	1	4WS
F28518T01A	1	MITSUBISHI 2WS	€ 14,63
F28618T01A	1	HANSHIN 2WS	€ 14,63

BAND,IGNITION COIL

Part Number	Qty.	Specifications	Price
F22018T02B	1	4WS

WIRING,SHORT-IG. COIL

Part Number	Qty.	Specifications	Price
F22018T08	1	4WS	€ 40,04
F28518T08	1	MITSUBISHI 2WS	€ 38,57
F28618T08	1	HANSHIN 2WS	€ 38,57

SCREW SET,IG. COIL

Part Number	Qty.	Specifications	Price
F22018T20	1	4WS
F28518T20	1	MITSUBISHI 2WS	€ 0,95
F28618T20	1	HANSHIN 2WS

SCREW SET,IGNITER

Part Number	Qty.	Specifications	Price
JF0118T2X	1	4WS

IGNITION,ELECTRIC

Part Number	Qty.	Specifications	Price
B6S718251	1	4WS	€ 350,86

BOLT & WASHER,FLANGE

Part Number	Qty.	Specifications	Price
907941830	1		€ 2,06

NUT,FLANGE

Part Number	Qty.	Specifications	Price
909010811	1		€ 1,51

NUT,FLANGE

Part Number	Qty.	Specifications	Price
999400600	1		€ 1,24

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997940845	1		€ 2,42

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997941025	1		€ 1,61

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961025	1		€ 3,14

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961030	1		€ 2,69

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961055	1		€ 3,14

BOLT,FLANGE

Part Number	Qty.	Specifications	Price
997961095	1		€ 3,23
